10. Appendix 2 Setting the Tag Data Links Using the Software
59
10.4. Setting Up the Network Using the Software
Set the tag data links for EtherNet/IP using the software.

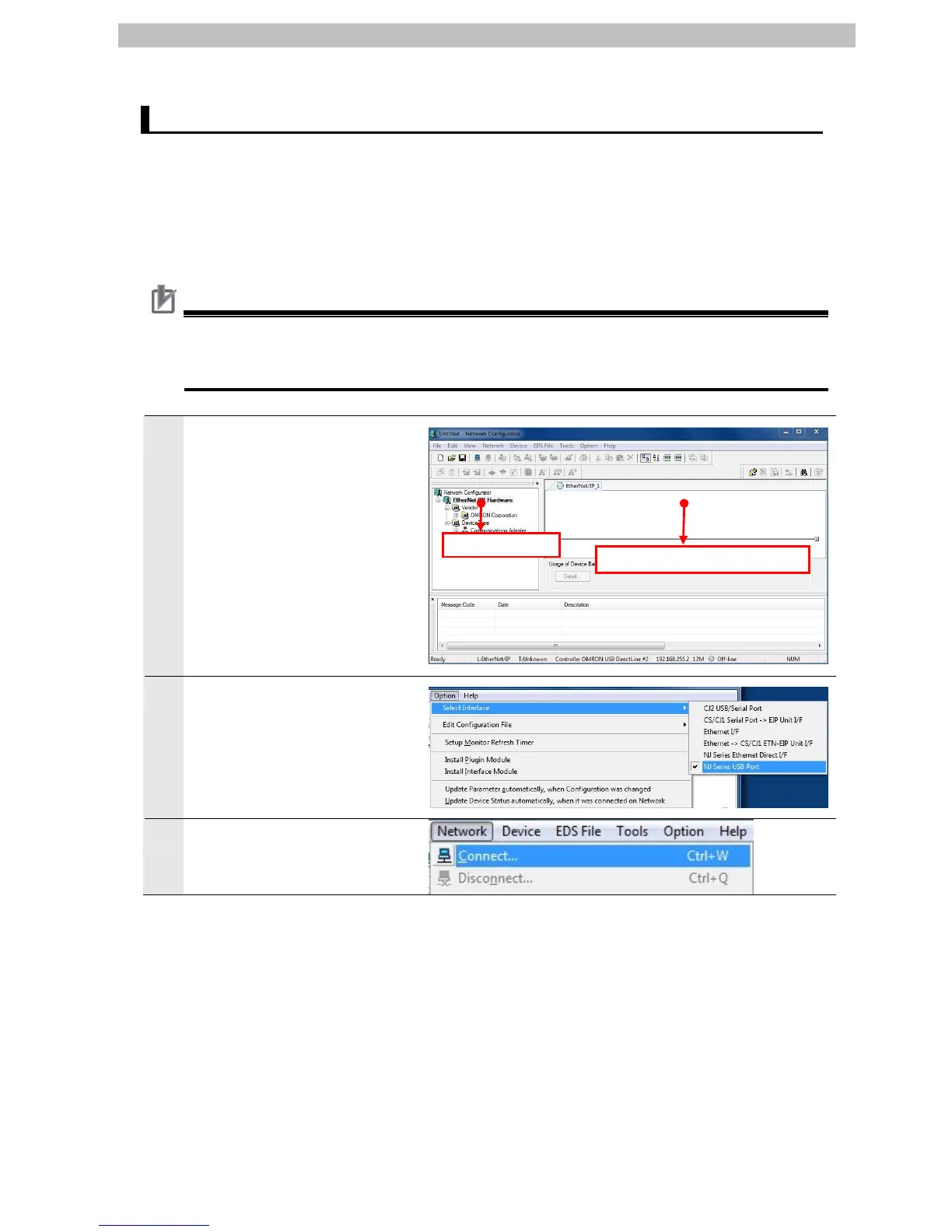

10.4.1. Connecting Online and Uploading Configuration
Start the Network Configurator, connect online with the Controller, and upload the network
configuration.
Precautions for Correct Use
Please confirm that the LAN cable is connected before performing the following procedure.
When it is not connected, turn OFF the power supply to each device and then connect the
LAN cable.
1
Start the Network Configurator.
2
Select Select Interface - NJ
Series USB Port from the
Option Menu.
3
Select Connect from the
Network Menu.
Network Configuration Pane
Hardware List

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
