10. Appendix 2 Setting the Tag Data Links Using the Software
58

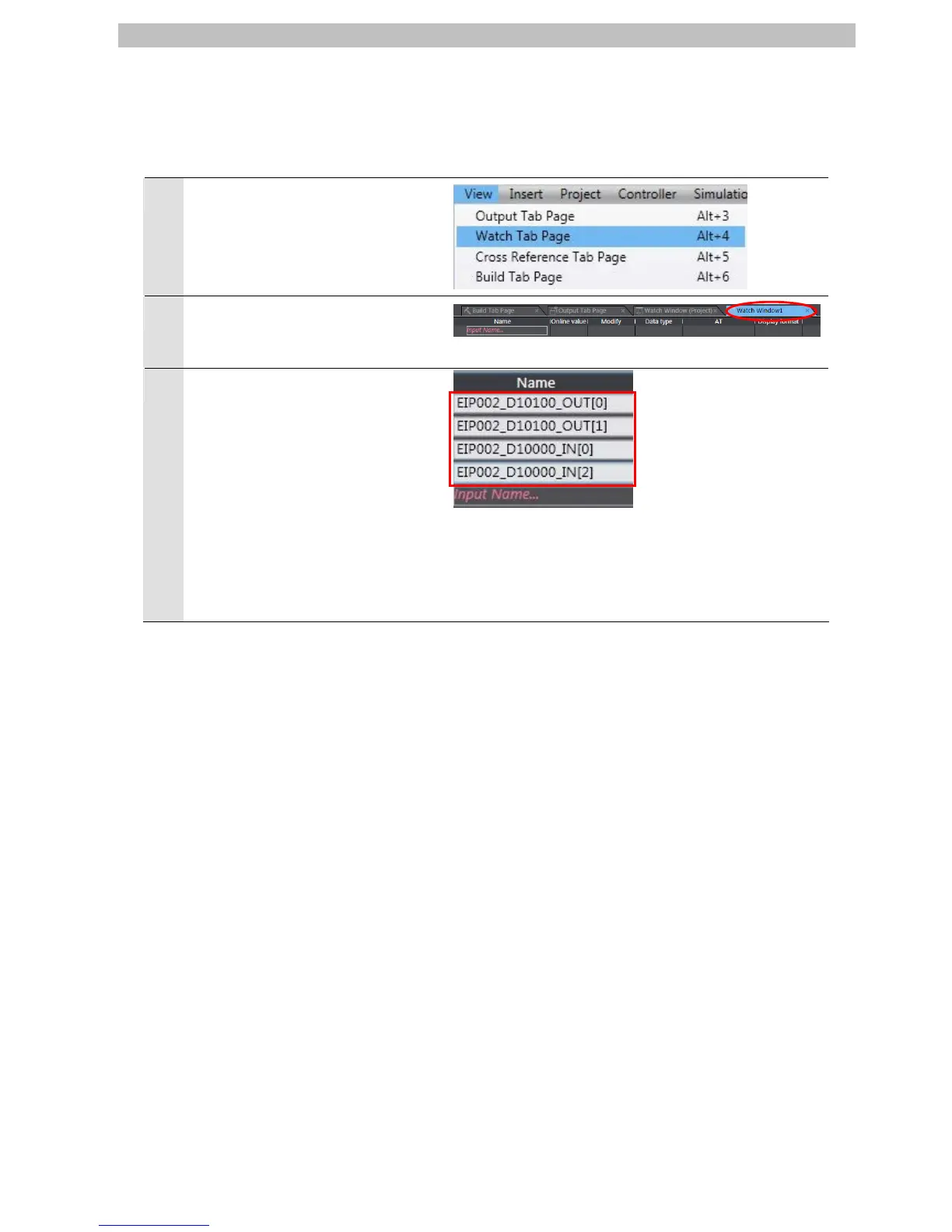

10.3.5. Settings in the Watch Tab Page
To check data that is sent and received, make settings in the Watch Tab Page.
1
Select Watch Tab Page from the
View Menu.
2
The Watch Window1 Tab Page is
displayed in the lower section of the
Edit Pane.
3
Enter the following names in the
Watch1 Tab Page for monitoring. To
enter a new name, click a column
stating Input Name.
EIP002_D10100_OUT[0]
EIP002_D10100_OUT[1]
EIP002_D10000_IN[0]
EIP002_D10000_IN[1]
*You will use the settings in 7.5.2.
Checking the Data That are Sent
and Received.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
