Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
29
4

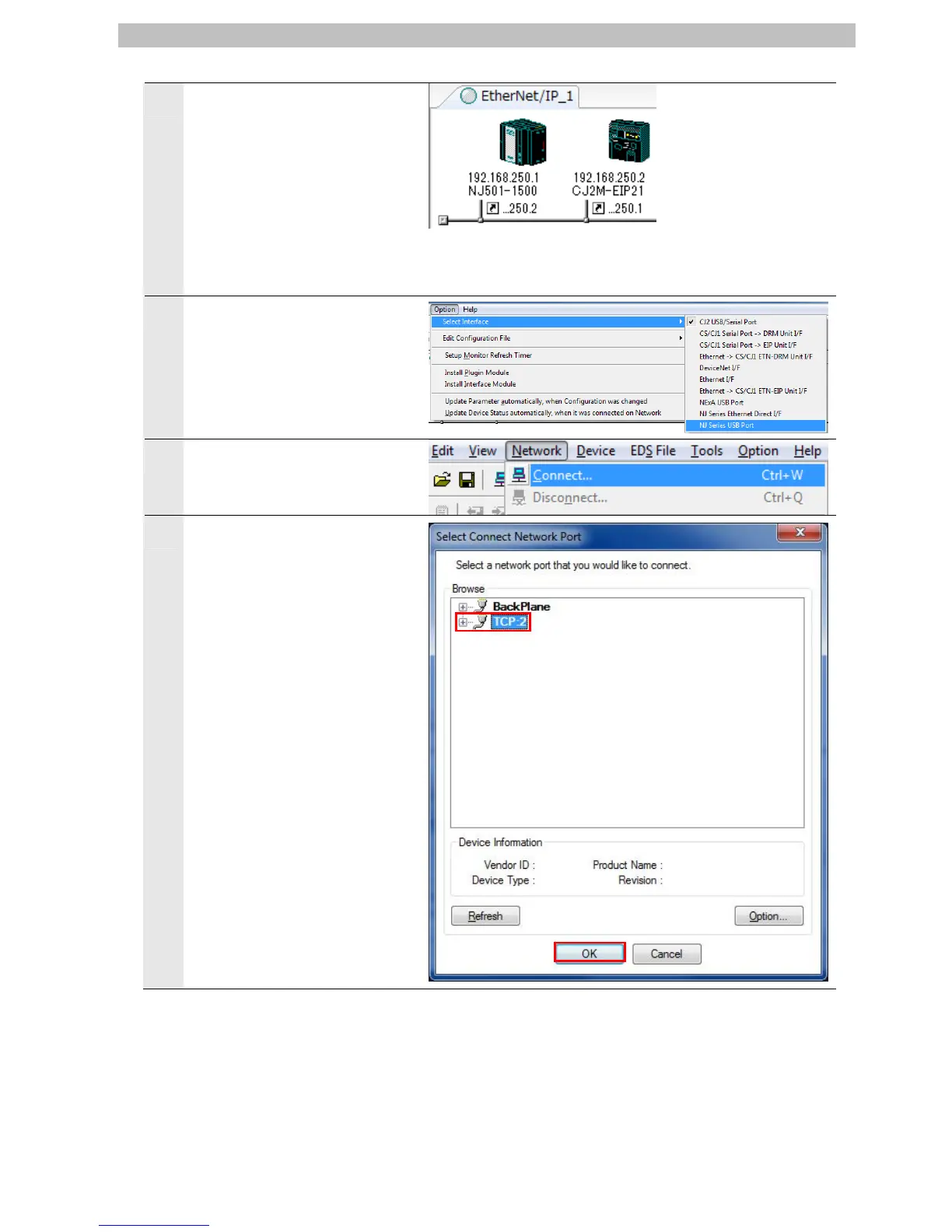

The following devices are
displayed in the Network
Configuration Pane as shown in
the right figure.
IP address of node
1:192.168.250.1
IP address of node
2192.168.250.2
5
Select Select Interface - NJ
Series USB Port from the
Option Menu.
6
Select Connect from the
Network Menu.
7
The Select Connect Network
Port Dialog Box is displayed.
Select TCP:2.
Click the OK Button.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
