Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
30
8

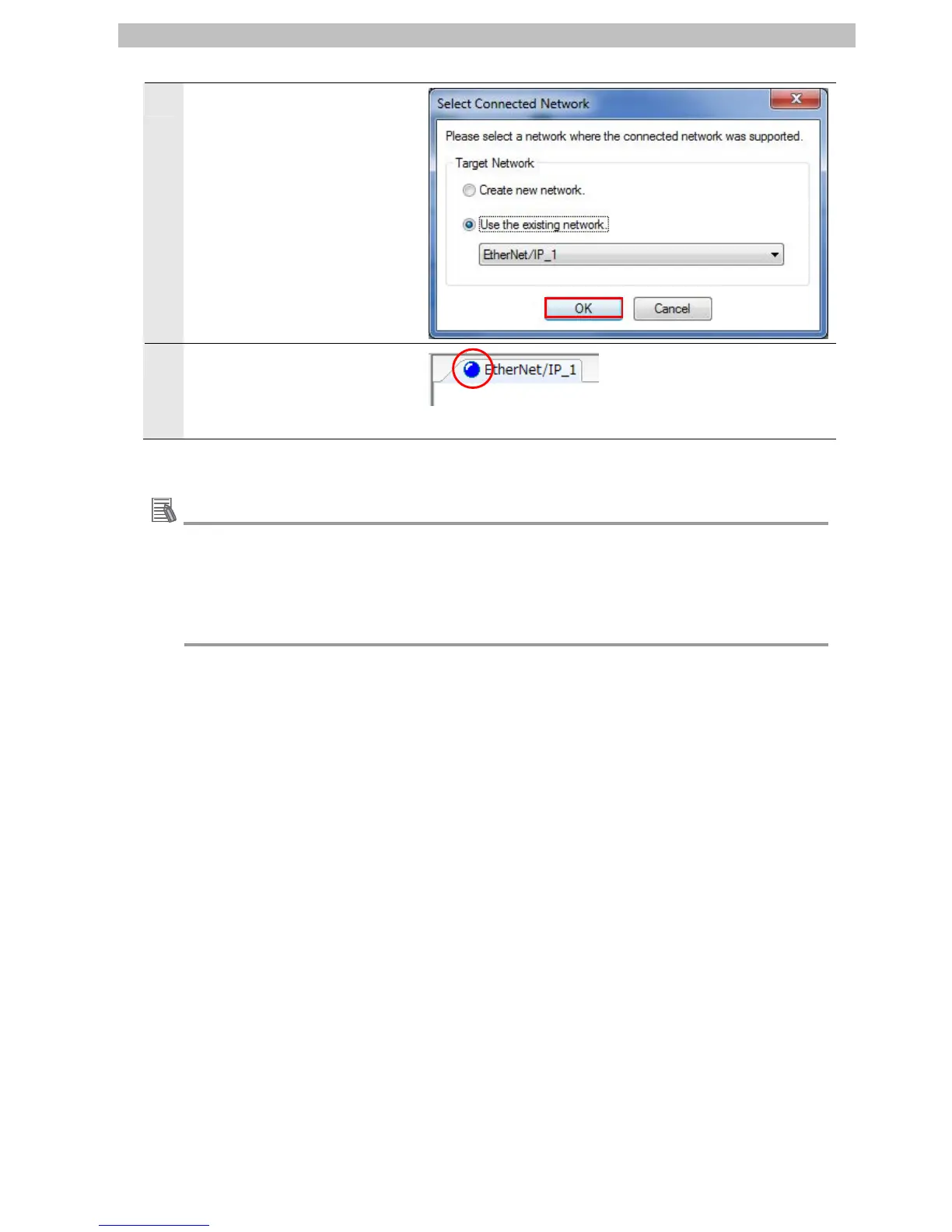

The Select Connected Network
Dialog Box is displayed. Check
the contents and click the OK
Button.
9
When an online connection is
established normally, the color
of the icon on the right figure
changes to blue.
Additional Information
If an online connection cannot be made to the Controller, check the cable connection. Or,
return to step 5, check the settings and repeat each step.
For details, refer to 7-2-8 Connecting the Network Configurator to the Network in Section 7
Tag Data Link Functions of the NJ-series CPU Unit Built-in EtherNet/IP Port User's Manual
(Cat. No. W506).

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
