Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
33
3

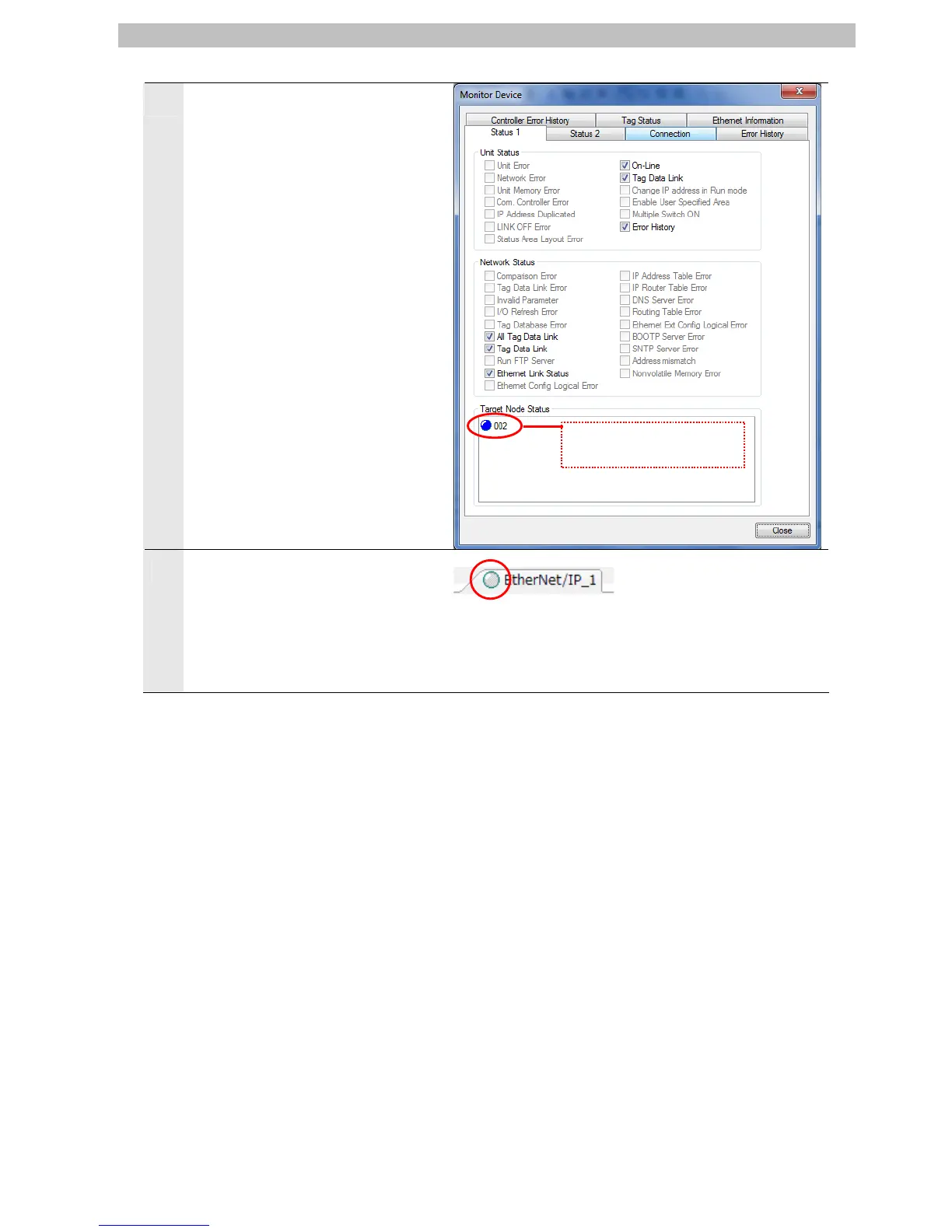

The dialog box on the right displays
the Status 1 Tab Page of the Device
Monitor Dialog Box.
When the same items in the right
dialog box are selected, the data
links are normally in operation.
Click the Close Button.
4
Select Disconnect from the
Network Menu to go offline. The
color of the icon on the figure
changes from blue.
Select Exit from the File Menu to
exit the Network Configurator.
Number: Node number
Blue: Connection normal

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
