Omron CJ2 Series User Manual

7. EtherNet/IP Connection Procedure
37
14

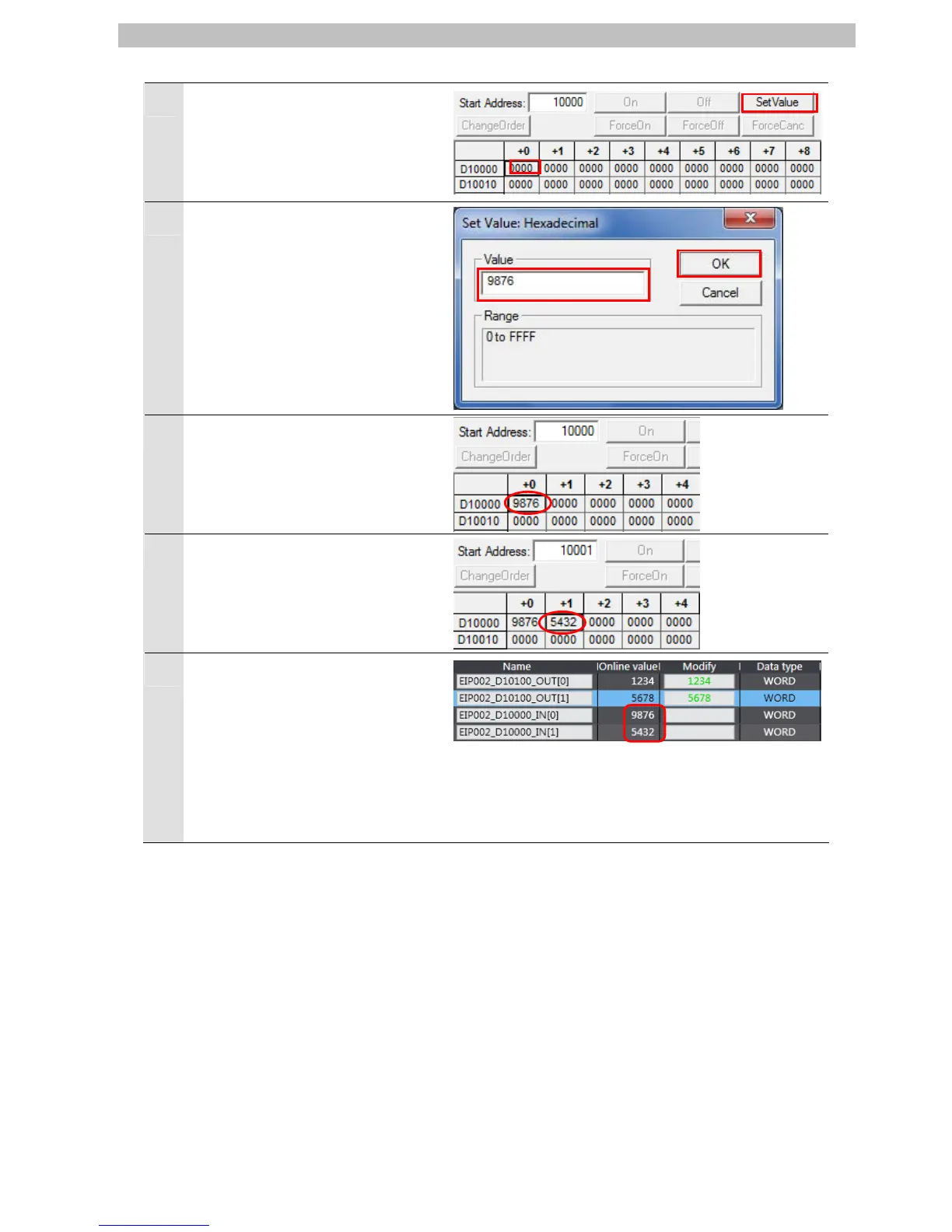

Select D10000 and click the
SetValue Button.
15
The Set Value Dialog Box is
displayed. Enter 9876 in the Value
Field.
Click the OK Button.
16
Confirm that the value of D10000 is
9876.
17
Change D10001 to 5432 in the
same way as steps 14 to 16.
18
Display the Sysmac Studio.
Confirm that the online values of
EIP002_D10000_IN[0] and
EIP002_D10000_IN[0] are 9876
and 5432.
You can confirm that the values are
the same as the ones set in steps
14 to 17.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
