Omron CJ2 Series User Manual

8. Initialization Method
42
8.2.2. CPU Unit

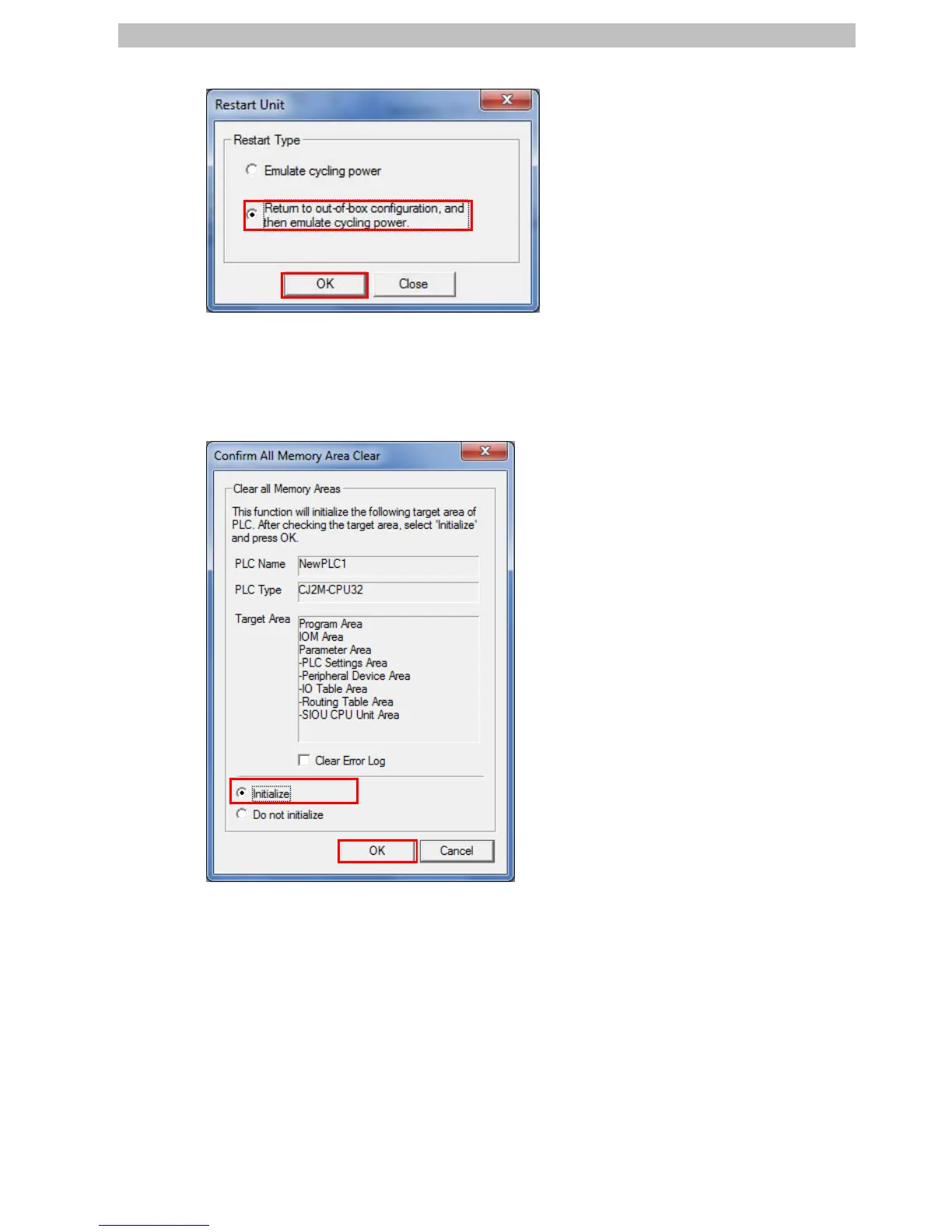

To initialize the settings of the CPU Unit, select Clear All Memory Areas from the PLC
Menu of the CX-Programmer. On the Confirm All Memory Area Clear Dialog Box, select
the Initialize Option and click the OK Button.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
