Omron CJ2 Series User Manual

10. Appendix 2 Setting the Tag Data Links Using the Software
67
12

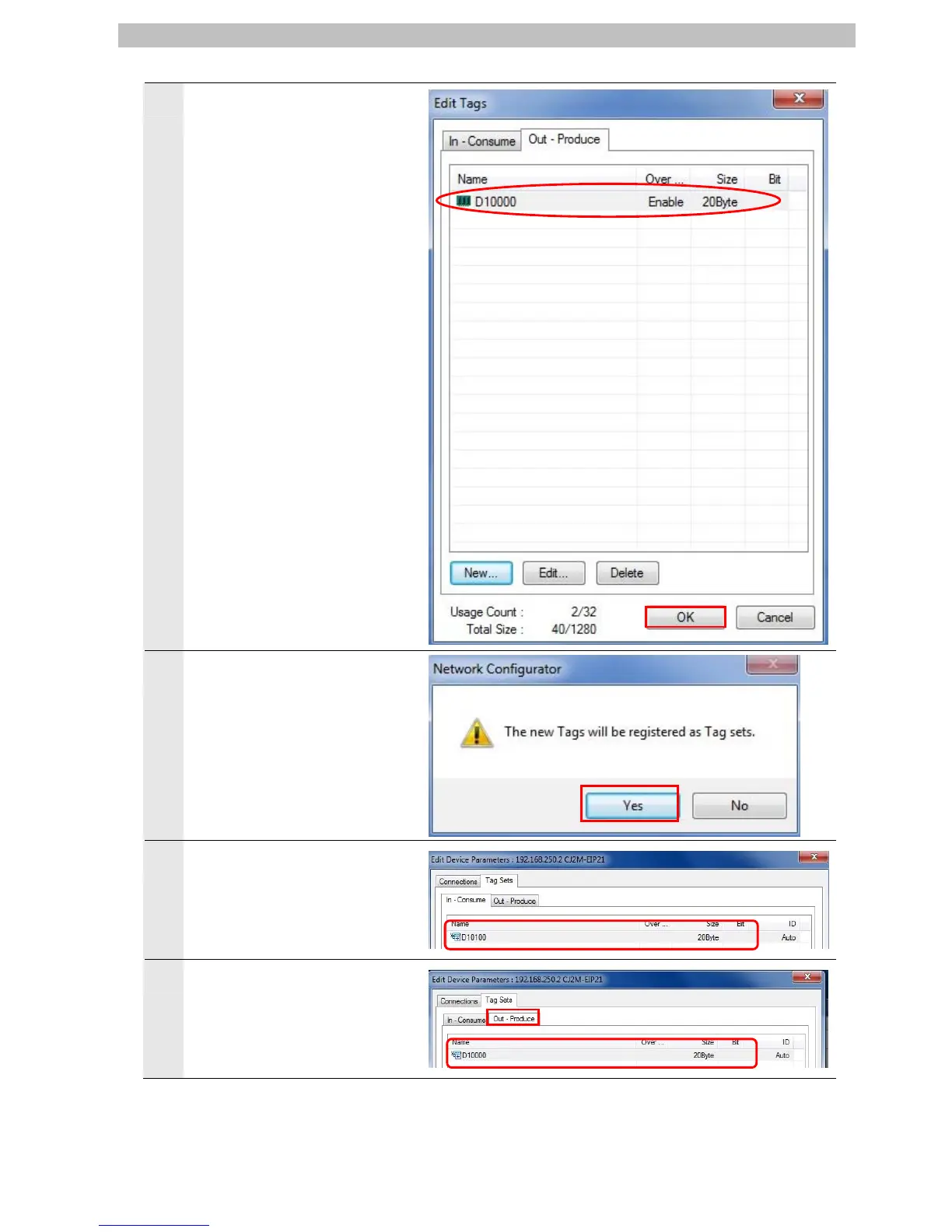

The Edit Tags Dialog Box is
displayed.
Confirm that D10000 and
20Byte are displayed.
After confirming, click the OK
Button.
13
Click the Yes Button.
14
The Edit Device Parameters
Dialog Box is displayed.
D10100 and 20Byte are
displayed.
15
Click the Out-Produce Tab.
D10000 and 20Byte are
displayed.

Omron CJ2 Series Specifications

General

CPU Units	CJ2H, CJ2M
Data Memory Capacity	32K words (CJ2M), 128K words (CJ2H)
EtherNet/IP	Yes (some models)
I/O Capacity	Up to 2, 560 I/O points
Communication Ports	Ethernet, RS-232C
Expansion Units	Up to 40 expansion units
Programming Languages	Ladder diagram, Structured text, Function block diagram
Instruction Execution Speed	0.04 μs (basic instructions)
Serial Ports	1 (RS-232C)
Expansion Slots	Up to 10 (CJ2H)
Operating Temperature	0 to 55°C
Storage Temperature	-25°C to 75°C
Power Supply Voltage	100 to 240 VAC, 24 VDC
