Omron CP1E-E14SDR-A User Manual

5-7
5 Installation and Wiring
CP1E CPU Unit Hardware User’s Manual(W479)
5-2 Installation
5
5-2-3 Installation
This section describes how to install the CP1E.

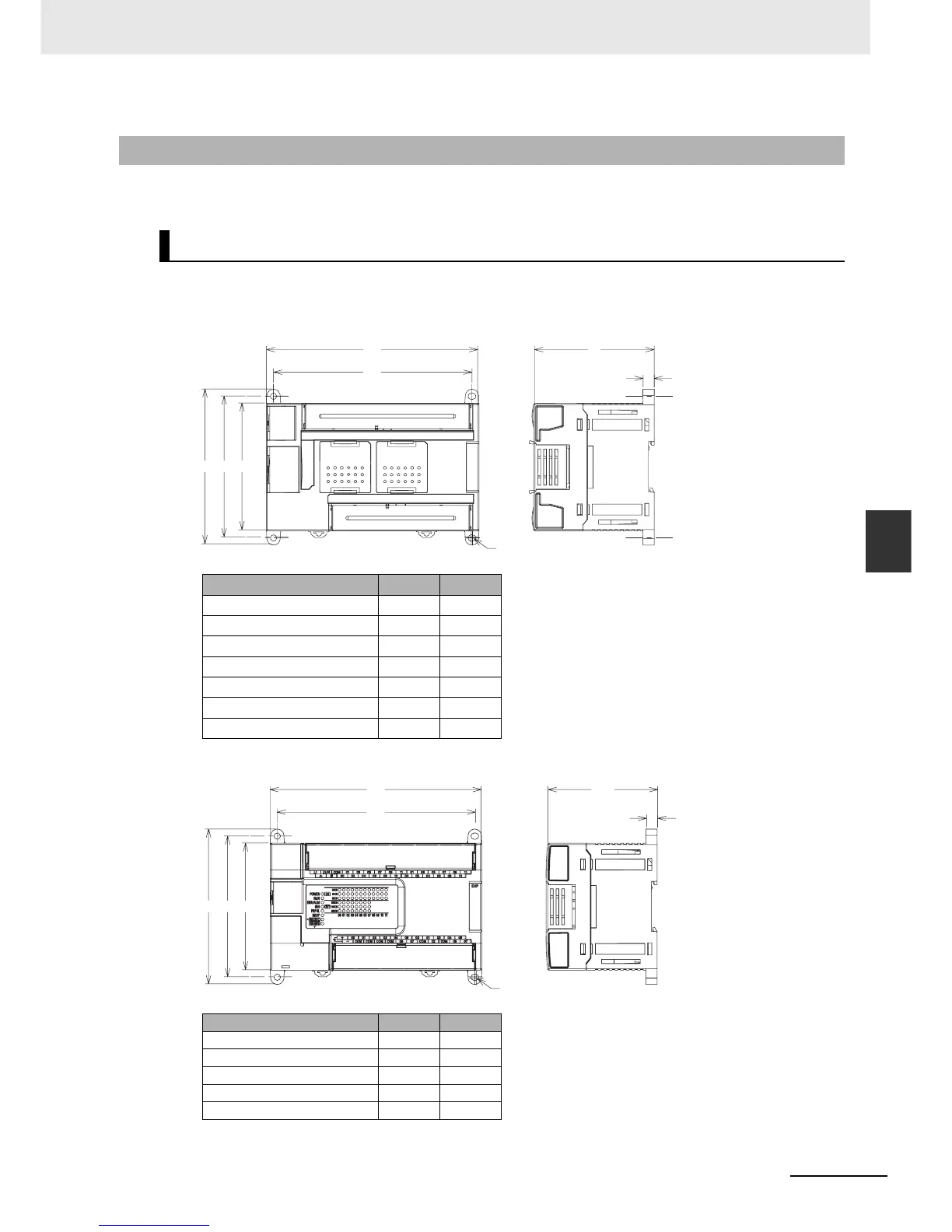

z Dimensions
• E-type and N/NA-type CPU Units
• ES-type and NS(1)-type CPU Units
5-2-3 Installation
Dimensions and Installation Height
Model number W1 W2
CP1E-E10D- 66 56
CP1E-14D- 86 76
CP1E-20D- 86 76
CP1E-30D- 130 120
CP1E-40D- 150 140
CP1E-N60D- 195 185
CP1E-NA20D- 130 120
Model number W1 W2
CP1E-E14SD- 86 76
CP1E-E20SD- 86 76
CP1E-30S(1)D- 130 120
CP1E-40S(1)D- 150 140
CP1E-60S(1)D- 195 185
W1
W2
85
8
110 100 90
4-
φ
4.5
W1 78.6
8
4-φ4.5
110 100 90
W2
