Appendices
A-20
CP1E CPU Unit Hardware User’s Manual(W479)
The first input word allocated to the Expansion I/O Unit is shown as CIO m and the first output word is
shown as CIO n.
A-2-2 Expansion I/O Units

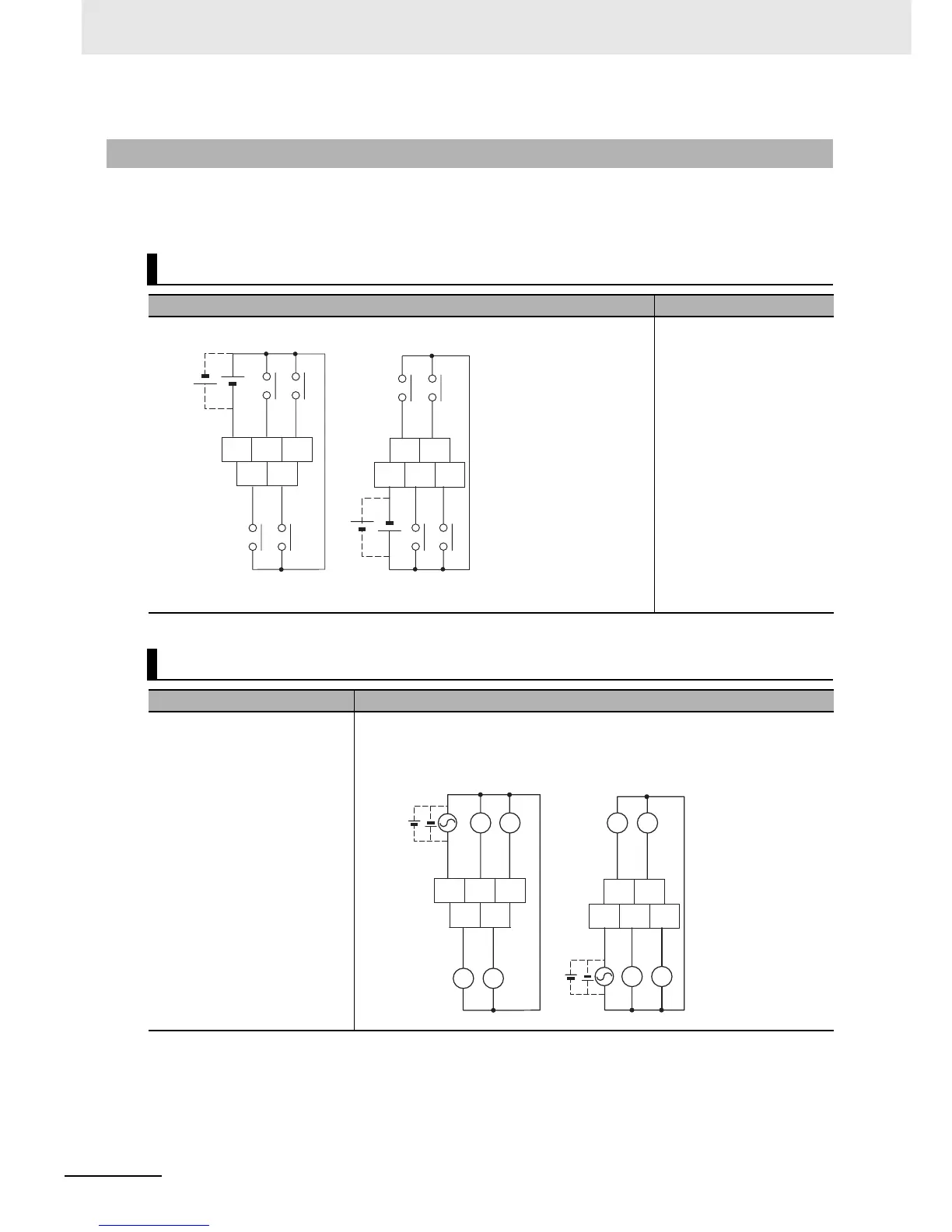

8-point Input Unit (Terminal Block is not removable)
Input Wiring Diagram Output Wiring Diagram
Outputs not provided.
8-point Output Units (Terminal Block is not removable)
Input Wiring Diagram Output Wiring Diagram
Inputs not provided.
z Relay Outputs
CP1W-8ER
24V DC
24V DC
-
+
+
-
-
+
+
-
CIO m
COM 01 03
00 02
COM 05 07
04 06
The COM terminals
on the upper terminal
block and the COM
terminals on the lower
terminal block are
internally connected,
but they must also be
wired externally.
Unit Upper Terminal Block Unit Lower Terminal Block
L L
L L
L L
L L
CIO n
Unit Lower Terminal Block
24V DC
24V DC
Unit Upper Terminal Block
COM 01 03
00 02
COM 05 07
04 06
