2 Basic System Configuration and Devices
CP1E CPU Unit Hardware User’s Manual(W479)
2-2 CPU Units
2
2-2-1 CPU Unit Models

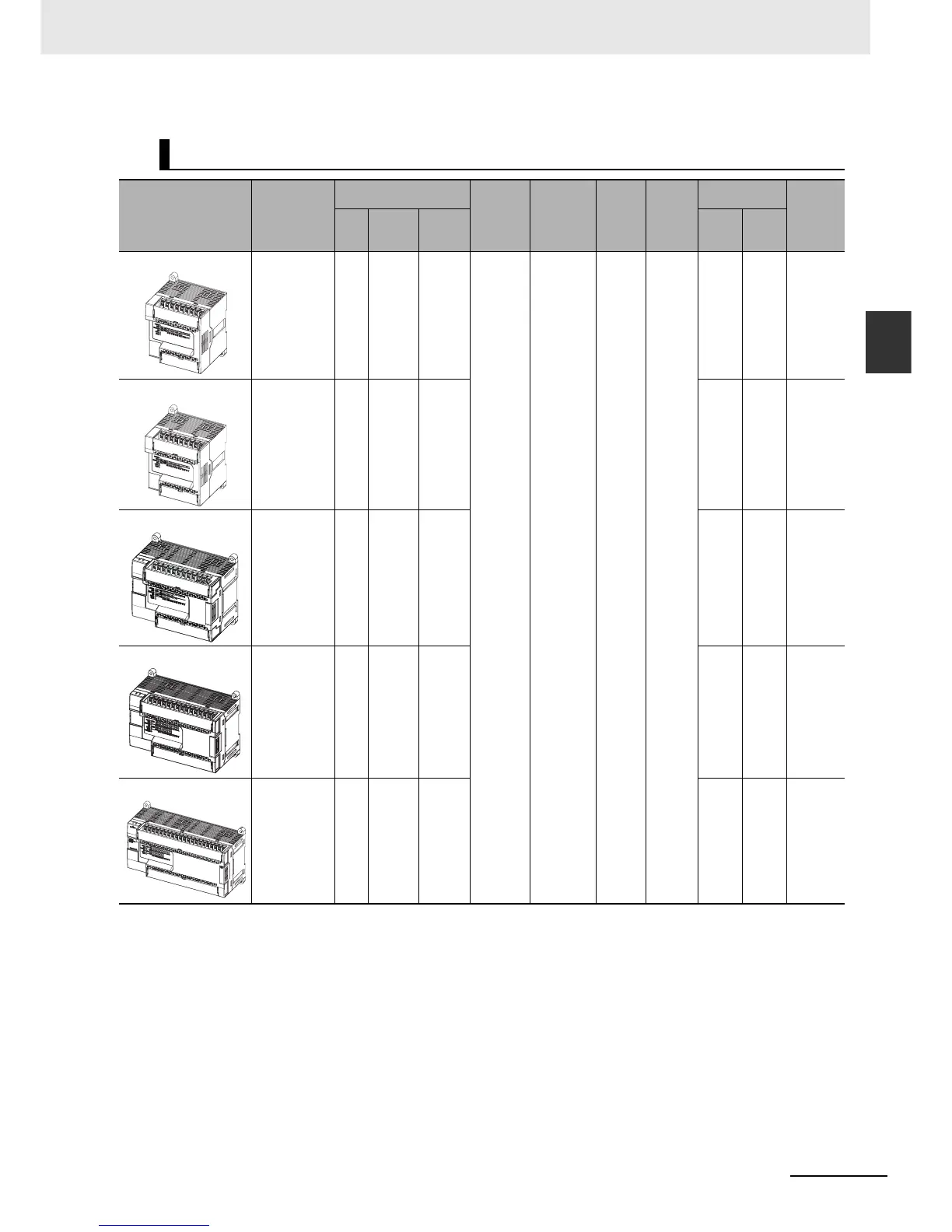

ES-type CPU Units
Name and appearance Model number
Number of built-in I/O
points
Power
supply
specifica-
tions
Output
type
Pro-
gram
capac-
ity
DM Area
capacity
Current
consumption
Weight
Tota
l
Num-
ber of
inputs
Num-
ber of
outputs
5 VDC
24
VDC
CPU Unit with 14 I/O Points
CP1E-E14SDR-A 14 8 6 AC power
supply 100
to 240
VAC
Relays 2K steps 2K words 0.16A 0.07A 350g max.
CPU Unit with 20 I/O Points CP1E-E20SDR-A 20 12 8 0.17A 0.08A 360 max.
CPU Unit with 30 I/O Points CP1E-E30SDR-A 30 18 12 0.17A 0.07A 590g max.
CPU Unit with 40 I/O Points CP1E-E40SDR-A 40 24 16 0.17A 0.09A 650g max.
CPU Unit with 60 I/O Points
CP1E-E60SDR-A 60 36 24 0.17A 0.13A 840g max.
Note A battery cannot be mounted to an E-type CPU Unit.
