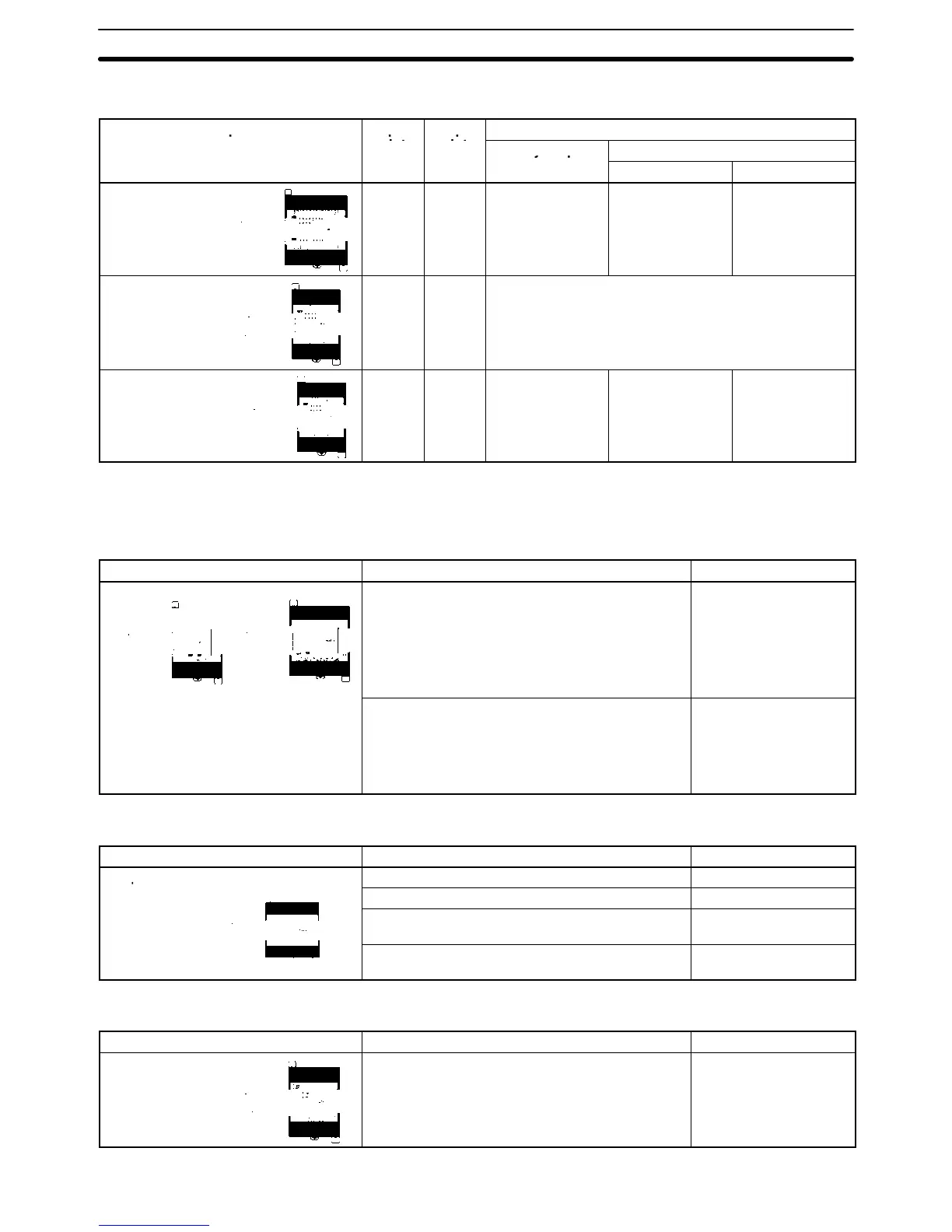

Omron CPM1A User Manual

Appendix AStandard Models
148
Expansion I/O Units
Description Input
it
Output
it
Model number
p
p
points
p
points
Relay output
Transistor output
yp
Sinking Sourcing
Expansion I/O Unit
with 20 I/O points
12
points
8 points CPM1A-20EDR
CPM1A-20EDR1
CPM1A-20EDT CPM1A-20EDT1
Expansion I/O Unit
with 8 input points
8 points --- CPM1A-8ED (no outputs)
Expansion I/O Unit
with 8 output points
--- 8 points CPM1A-8ER CPM1A-8ET CPM1A-8ET1
Expansion Units
Analog I/O Unit
Description Specifications Model number
Analog I/O Unit
2 analog inputs and 1 analog output
Input signal ranges: 0 to 10 V, 1 to 5 V, or
4 to 20 mA
Output signal ranges: 0 to 10 V, –10 to 10 V, or
4 to 20 mA,
Resolution of 1/256
CPM1A-MAD01
Input signal ranges: 0 to V 5, 0 to 10 V, 1 to 5 V,
–10 to 10 V, 0 to 20 mA, or 4 to 20 mA
Output signal ranges: 0 to 10 V, 1 to 5 V,
–10 to 10 V, 0 to 20 mA, or 4 to 20 mA
Resolution of 1/6,000
CPM1A-MAD11
Temperature Sensor Units
Description Specifications Model number
Temperature Sensor Unit
2 thermocouple inputs: K, J CPM1A-TS001
p
4 thermocouple inputs: K, J CPM1A-TS002
2 platinum resistance thermometer inputs:
Pt100 (100 Ω), JPt100 (100 Ω)
CPM1A-TS101
4 platinum resistance thermometer inputs:
Pt100 (100 Ω), JPt100 (100 Ω)
CPM1A-TS102
CompoBus/S I/O Link Unit
Description Specifications Model number
CompoBus/S I/O Link Unit Operates as a CompoBus/S slave and provides 8
inputs and 8 outputs to the CPM1A or CPM2A PC.
CPM1A-SRT21
