3-4-11 DeviceNet I/O Link Unit Connections

A DeviceNet I/O Link Unit can be used to create an I/O link (remote I/O) of 32

input points and 32 output points with a DeviceNet master, i.e., the CPM1A oper-

ates as a DeviceNet slave.

Up to three DeviceNet I/O Link Units can be connected, for a maximum Device-

Net I/O link capacity of 192 I/O points (96 inputs and 96 outputs). The DeviceNet

I/O Link Unit can be connected only to 30-point or 40-point CPU Units.

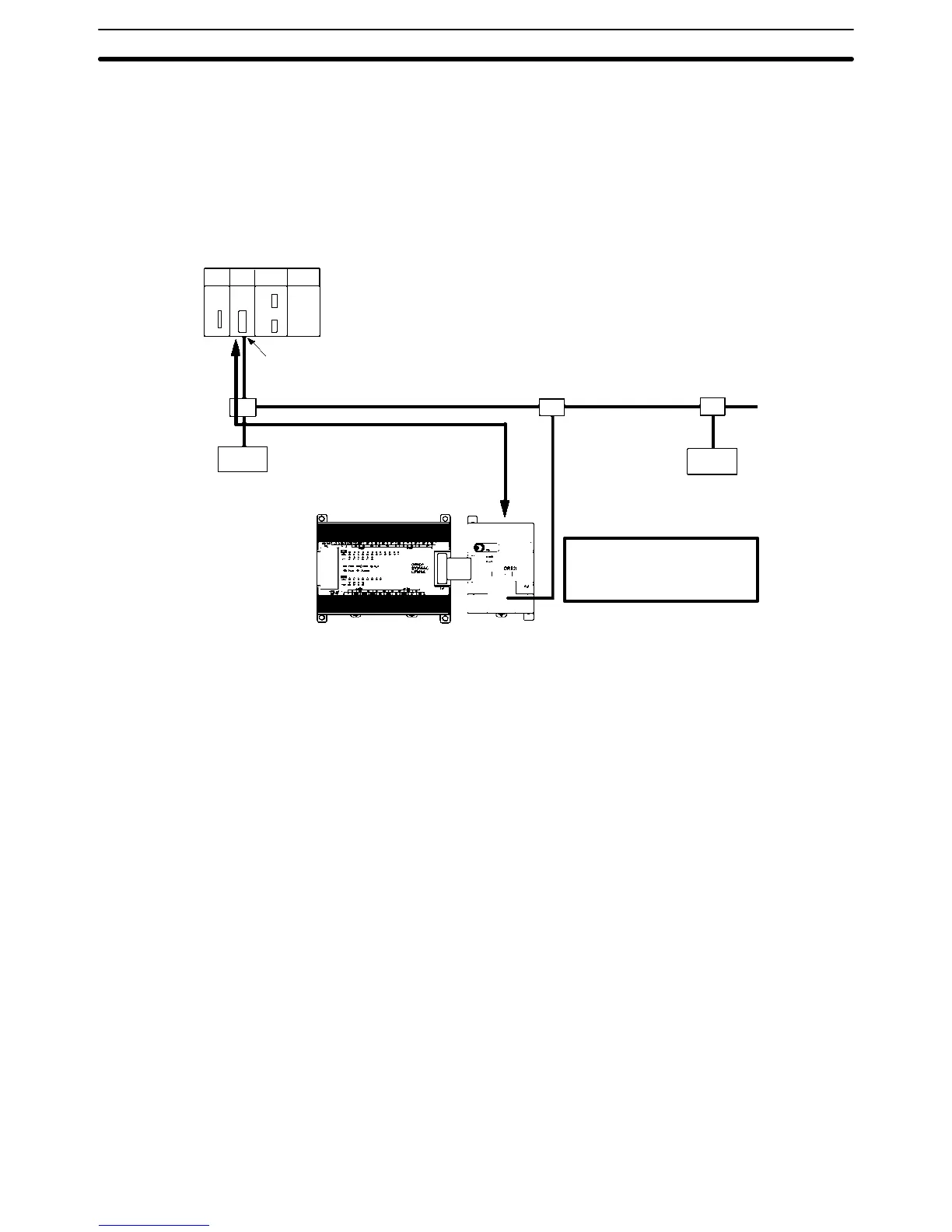

CPM1A CPU Unit

(with 30 or 40 I/O

points)

DeviceNet (Master) Unit

CS-series, C200HX/HG/HE(-Z),

CVM1, or CV-series PC

CPM1A-DRT21

DeviceNet I/O Link Unit

(slave)

DeviceNet slave

DeviceNet transmission path

Remote I/O communications are

possible as a DeviceNet slave

for up to 32 input and 32 output

points for each Unit.

Note The current consumption for communications for the DeviceNet I/O Link Unit is

30 mA.

Wiring and Connections

Section 3-4
