Omron CPM1A User Manual

10
Mode Input functions Input method Count
frequency
Count
range
Control methods
Up/Down 00000: A-phase input
00001: B-phase input
00002: Z-phase input
Phase-difference,
4× inputs
2.5 kHz –32767
to
32767
Target value control:
Up to 16 target values and interrupt
subroutine numbers can be
registered.
Zitl
Incremental 00000: Count input
00001: See note.
00002: Reset input
Individual inputs 5.0 kHz 0
to
65535
Zone comparison control:
Up to 8 sets of upper limit values,
lower limit values, and interrupt
subroutine numbers can be
registered.
Note In incremental mode, this input (00001) can be used as an regular input.
1-2 System Configuration

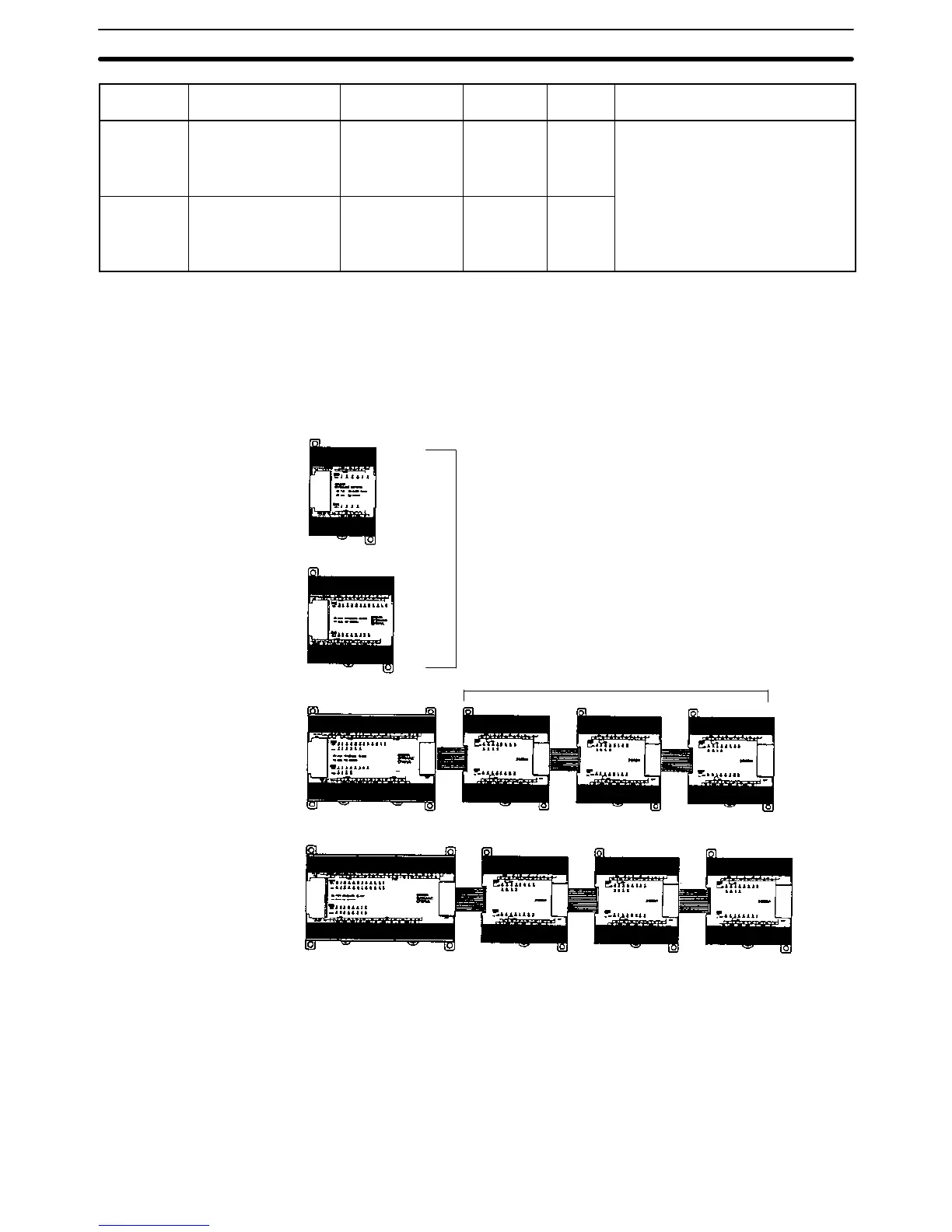

1-2-1 CPU Unit and Expansion I/O Unit Configuration
Expansion I/O Units/Expansion Units
CPM1A CPU Units
10 I/O points
CPM1A-10CDR-(-V1)
CPM1A-10CDT-(-V1)
CPM1A-10CDT1-(-V1)
30 I/O points
CPM1A-30CDR-(-V1)
CPM1A-30CDT-(-V1)
CPM1A-30CDT1-(-V1)
40 I/O points
CPM1A-40CDR-(-V1)
CPM1A-40CDT-(-V1)
CPM1A-40CDT1-(-V1)
20 I/O points
CPM1A-20CDR-(-V1)
CPM1A-20CDT-(-V1)
CPM1A-20CDT1-(-V1)
Not possible to add Expansion I/O Units
or Expansion Units.
System Configuration
Section 1-2
