Omron CPM1A User Manual

11

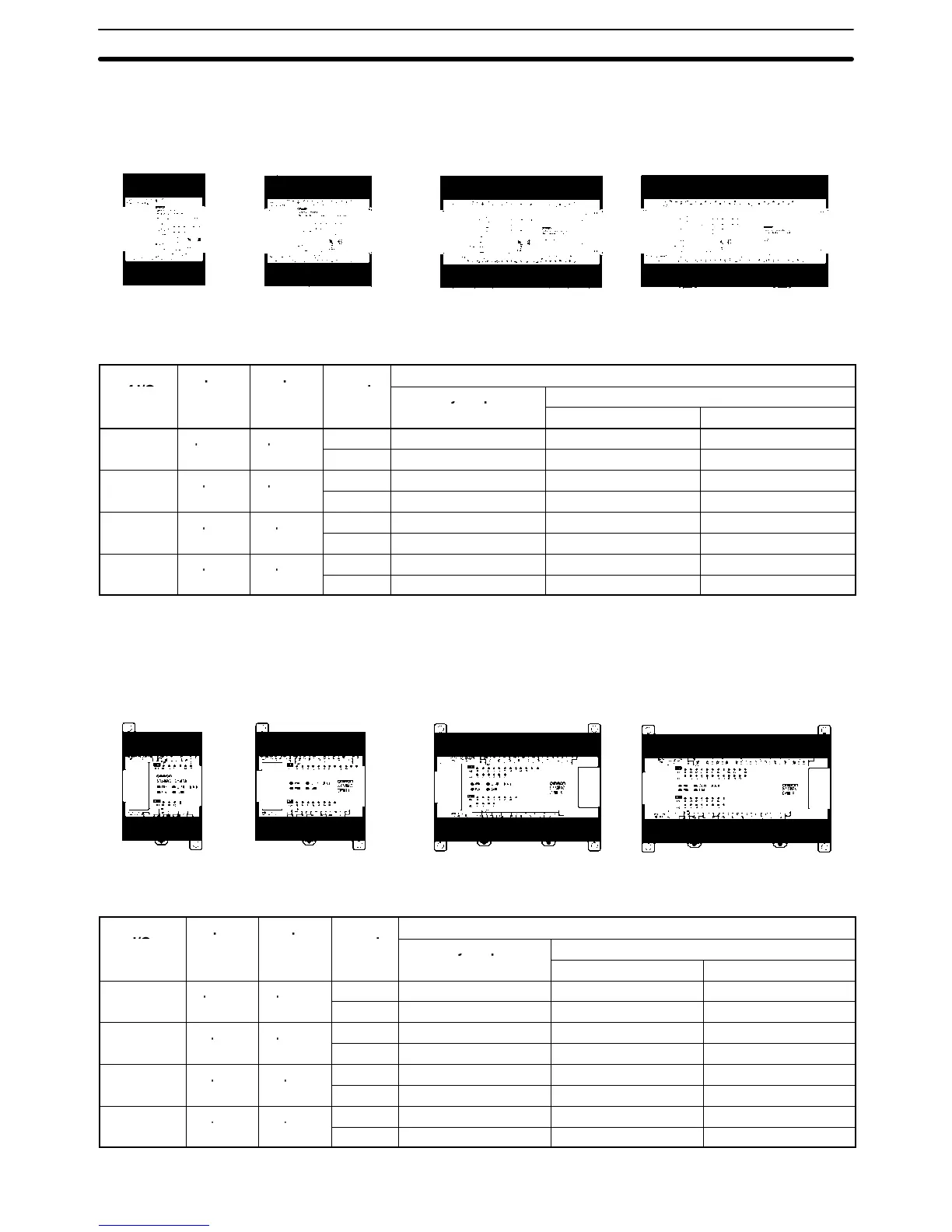

V1 CPM1A CPU Units
10 I/O points 20 I/O points 30 I/O points 40 I/O points
Number
f I/O
Inputs Outputs Power
l
Model number
of I/O
terminals
p
p
supply
Relay outputs
Transistor outputs
t
erm
i
na
l
s
yp
Sinking outputs Sourcing outputs
10 6 points 4 points
AC CPM1A-10CDR-A-V1 CPM1A-10CDT-A-V1 CPM1A-10CDT1-A-V1
p
p
DC CPM1A-10CDR-D-V1 CPM1A-10CDT-D-V1 CPM1A-10CDT1-D-V1
20 12 points 8 points
AC CPM1A-20CDR-A-V1 CPM1A-20CDT-A-V1 CPM1A-20CDT1-A-V1
p
p
DC CPM1A-20CDR-D-V1 CPM1A-20CDT-D-V1 CPM1A-20CDT1-D-V1
30 18 points 12 points
AC CPM1A-30CDR-A-V1 CPM1A-30CDT-A-V1 CPM1A-30CDT1-A-V1
p
p
DC CPM1A-30CDR-D-V1 CPM1A-30CDT-D-V1 CPM1A-30CDT1-D-V1
40 24 points 16 points
AC CPM1A-40CDR-A-V1 CPM1A-40CDT-A-V1 CPM1A-40CDT1-A-V1
p
p
DC CPM1A-40CDR-D-V1 CPM1A-40CDT-D-V1 CPM1A-40CDT1-D-V1
Pre-V1 CPM1A CPU Units
10 I/O points 20 I/O points 30 I/O points 40 I/O points
Number of
I/O
Inputs Outputs Power
l
Model number
I/O
terminals
p
p
supply
Relay outputs
Transistor outputs
t
erm
i
na
l
s
yp
Sinking outputs Sourcing outputs
10 6 points 4 points
AC CPM1A-10CDR-A CPM1A-10CDT-A CPM1A-10CDT1-A
p
p
DC CPM1A-10CDR-D CPM1A-10CDT-D CPM1A-10CDT1-D
20 12 points 8 points
AC CPM1A-20CDR-A CPM1A-20CDT-A CPM1A-20CDT1-A
p
p
DC CPM1A-20CDR-D CPM1A-20CDT-D CPM1A-20CDT1-D
30 18 points 12 points
AC CPM1A-30CDR-A CPM1A-30CDT-A CPM1A-30CDT1-A
p
p
DC CPM1A-30CDR-D CPM1A-30CDT-D CPM1A-30CDT1-D
40 24 points 16 points
AC CPM1A-40CDR-A CPM1A-40CDT-A CPM1A-40CDT1-A
p
p
DC CPM1A-40CDR-D CPM1A-40CDT-D CPM1A-40CDT1-D
System Configuration
Section 1-2
