76

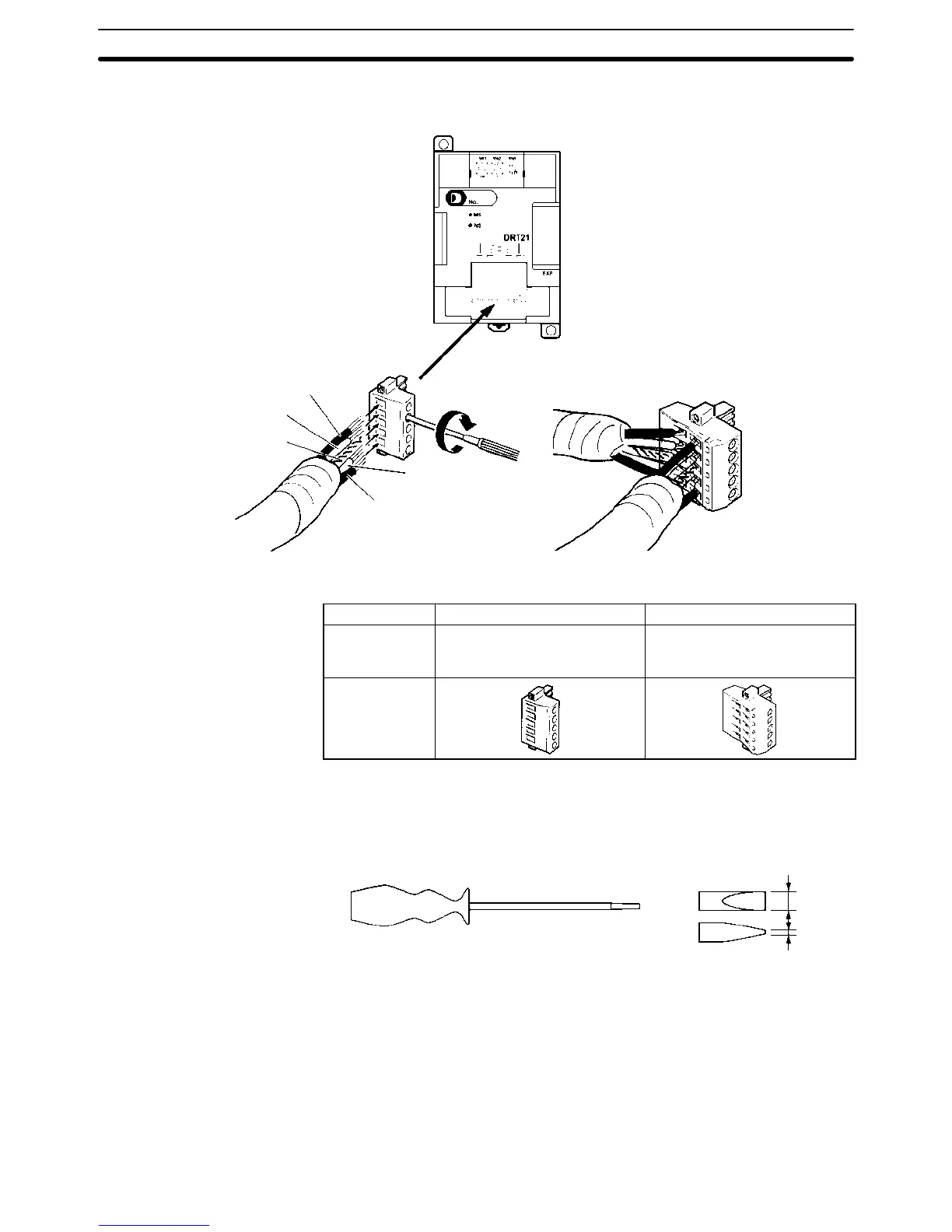

Connect the DeviceNet I/O Link Unit to the DeviceNet transmission path as
shown in the following diagram.
Connector included with CPM1A-DRT21
(XW4B-05C1-H1-D)
Black (V–)
Blue (CAN low)
Shield
White (CAN high)
Red (V+)
Multidrop Connector
(XW4B-05C4-TF-D)
DeviceNet I/O Link Unit
(CPM1A-DRT21)
Use the following DeviceNet connectors.
Model number XW4B-05C1-H1-D XW4B-05C4-TF-D
Specifications OMRON, with set screws,
included with the
CQM1A-DRT21
OMRON, multidrop connector
(See note.)
Appearance
Note Use the XW4B-05C4-TF-D for multidrop wiring of thick cables.
The OMRON XW4Z-00C Screwdriver is available for tightening the line set
screws.
0.6 mm
3.5 mm
Network Connection
DeviceNet Connectors
Wiring and Connections
Section 3-4
