Name Model number

CQM1 Programming Console

(The Connecting Cable is included.)

CQM1-PRO01-E

C200H/HS and C200HX/HG/HE Programming Console C200H-PRO27-E

C200H-series Connecting Cables

Cable length: 2 m C200H-CN222

Cable length: 4 m C200H-CN422

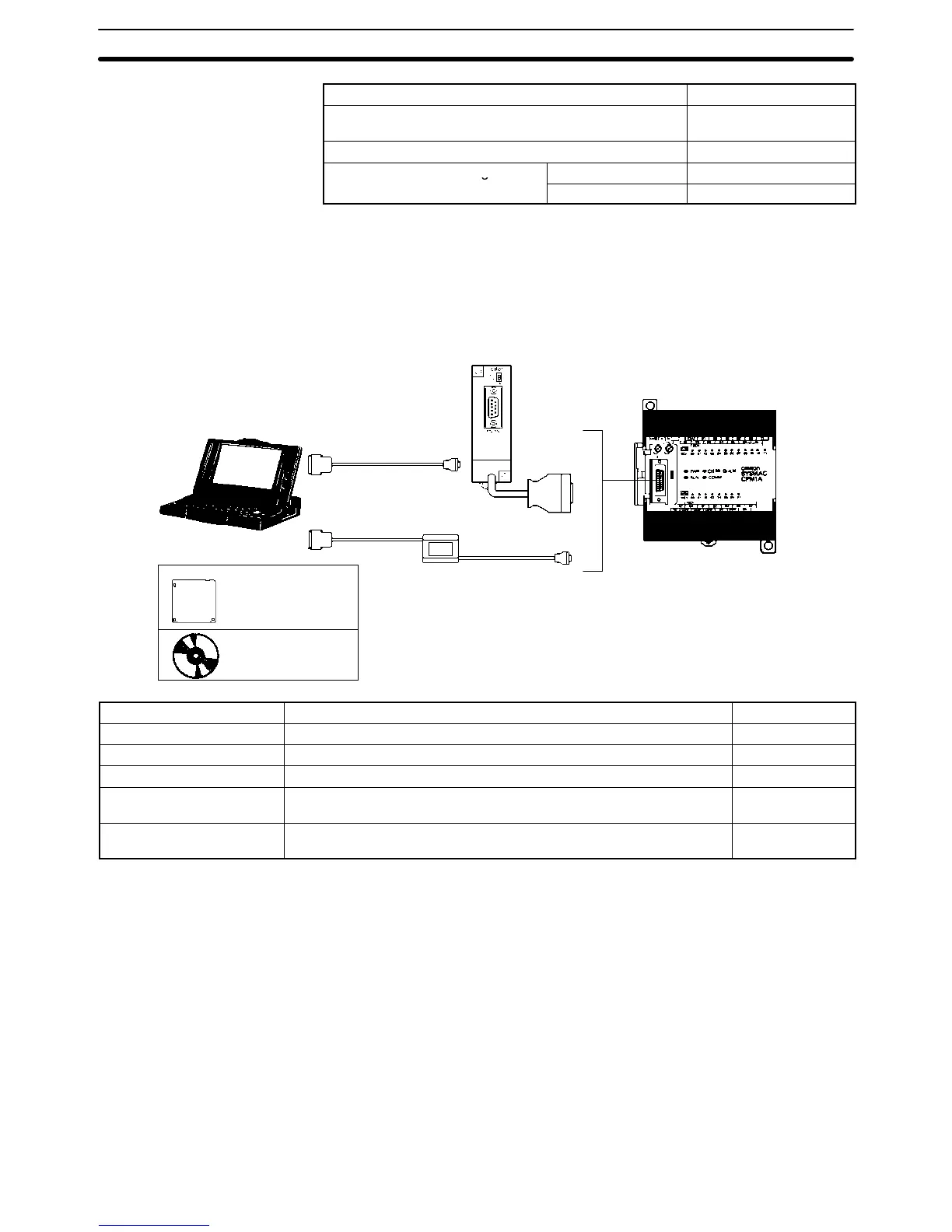

An IBM PC/AT or compatible personal computer running SSS or the SYSMAC-

CPT Support Software can be connected to the CPM1A as shown in the follow-

ing diagram. Refer to 3-4-7 Host Link Connections for a diagram showing the

standard wiring for the RS-232C cable.

Any version of the Support Software may be used. Refer to 4-1 Support Soft-

ware Capabilities for further details on installing and using Support Software.

IBM PC/AT or compatible

RS-232C Cable

CQM1-CIF02

CPM1A CPU Unit

RS-232C Adapter

SSS,

SYSMAC-CPT,

CX-Programmer

Name Usage Model number

RS-232C Adapter Converts to Peripheral Port format level communications. CPM1-CIF01

Connecting Cable Used to connect IBM PC/AT or compatible computers. (Length: 3.3 m) CQM1-CIF02

SYSMAC Support Software For IBM PC/AT or compatible computers (3.5” disks, 2HD) C500-ZL3AT1-E

SYSMAC-CPT Support

Software

For IBM PC/AT or compatible computers

(3.5” disks (2HD) and CDROM)

WS01-CPTB1-E

CX-Programmer For Windows 95 or 98 computers

(CDROM), version 1.2 or higher

WS02-CXPC1-E

SYSMAC Support Software

and SYSMAC-CPT Support

Software

System Configuration

Section 1-2
