E3X-DAC-S
19

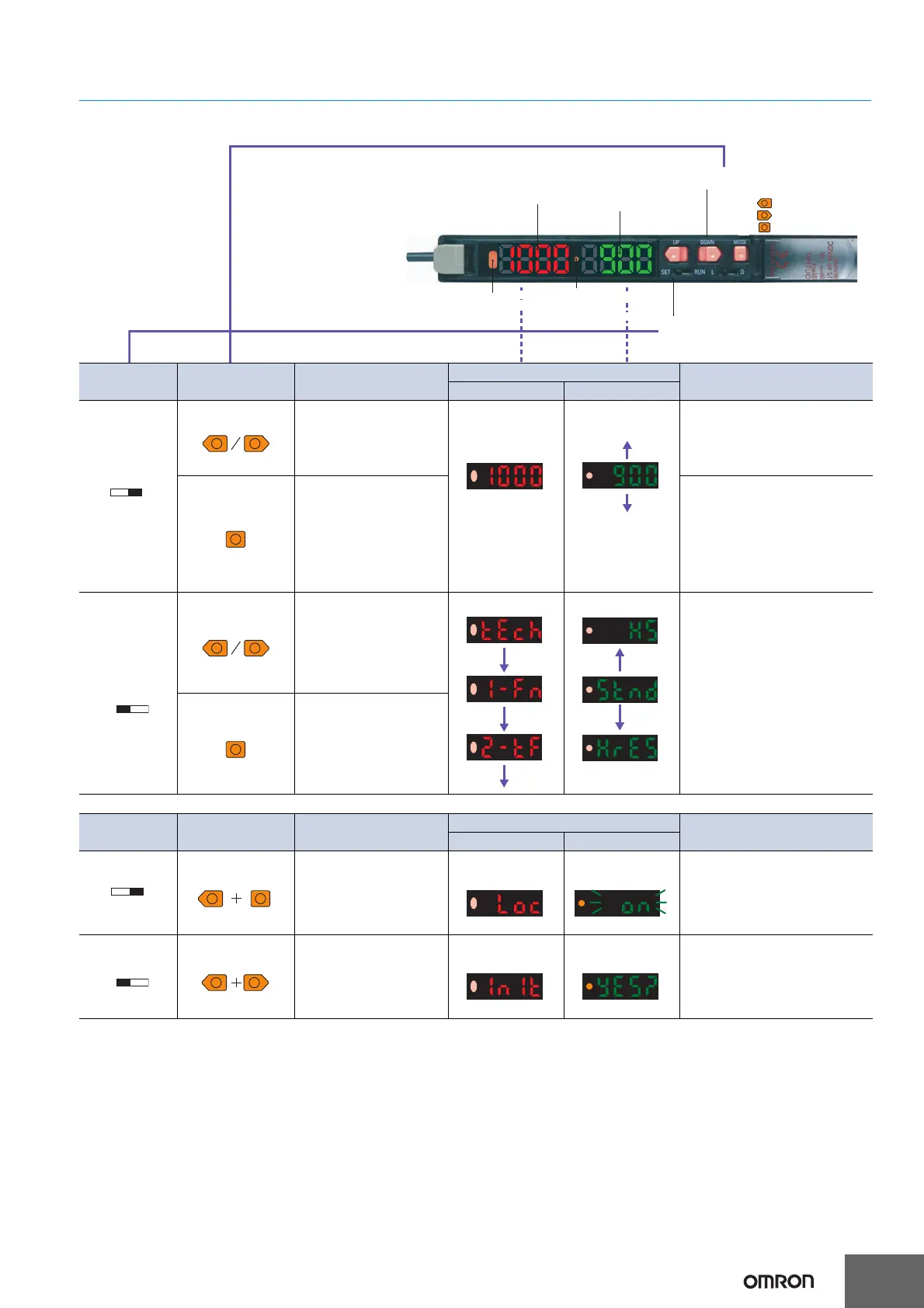

Operation
Operation Reference
SET/RUN
mode
Operation Keys Operation
Displays
Remarks
Main Display Sub-Display
Detection/
adjustment
Adjusting thresholds
Incident level Threshold
➜ Page 20
Refer to 4. Setting Thresholds
Manually in RUN Mode.
Executing user-speci-
fied functions
(Factory-set to 1-point
teaching.)
Used to executes various
teaching and zero-reset opera-
tions.
➜ Page 20
Refer to 3. Registering Work-
piece Colors with Teaching in
SET Mode.
Function set-
tings
Changing teaching and
setting details
Setting items Setting details
➜ Page 20
Refer to 3. Registering Work-
piece Colors with Teaching in
SET Mode.
➜ Page 21
Refer to 5. Setting Functions
in SET Mode.
Switching setting items
SET/RUN
mode
Operation Keys Operation
Display
Remarks
Main Display Sub-Display
Locking and unlocking
keys
Locks key operation to prevent
incorrect operation.
➜ Page 22
Refer to 6. Convenient Func-
tions.
Initialization and user re-
set
Returns the system to its initial
state.
➜ Page 22
Refer to 6. Convenient Func-
tions.
UP
DOWN
MODE
Operation Indicator
for Channel 1
Standard models: I Mode indicator
Advanced models: Operation
indicator for channel 2
Match, function, etc.
Main Display (Red)
Threshold,
function settings, etc.
Sub-Display (Green)
Mode Selector
Use to select SET or RUN mode.
Function setting operations
Operation Keys
RUN
(Factory-set to RUN)
UP DOWN
MODE
SET
UP DOWN
MODE
RUN
(Factory-set to RUN)
MODE
UP
LOC
ON
SET
DOWNUP
INIT
YES?
