Omron E3X-MDA - Fluid-Level Detection Fiber Units; Mapping Sensors (Through-Beam)

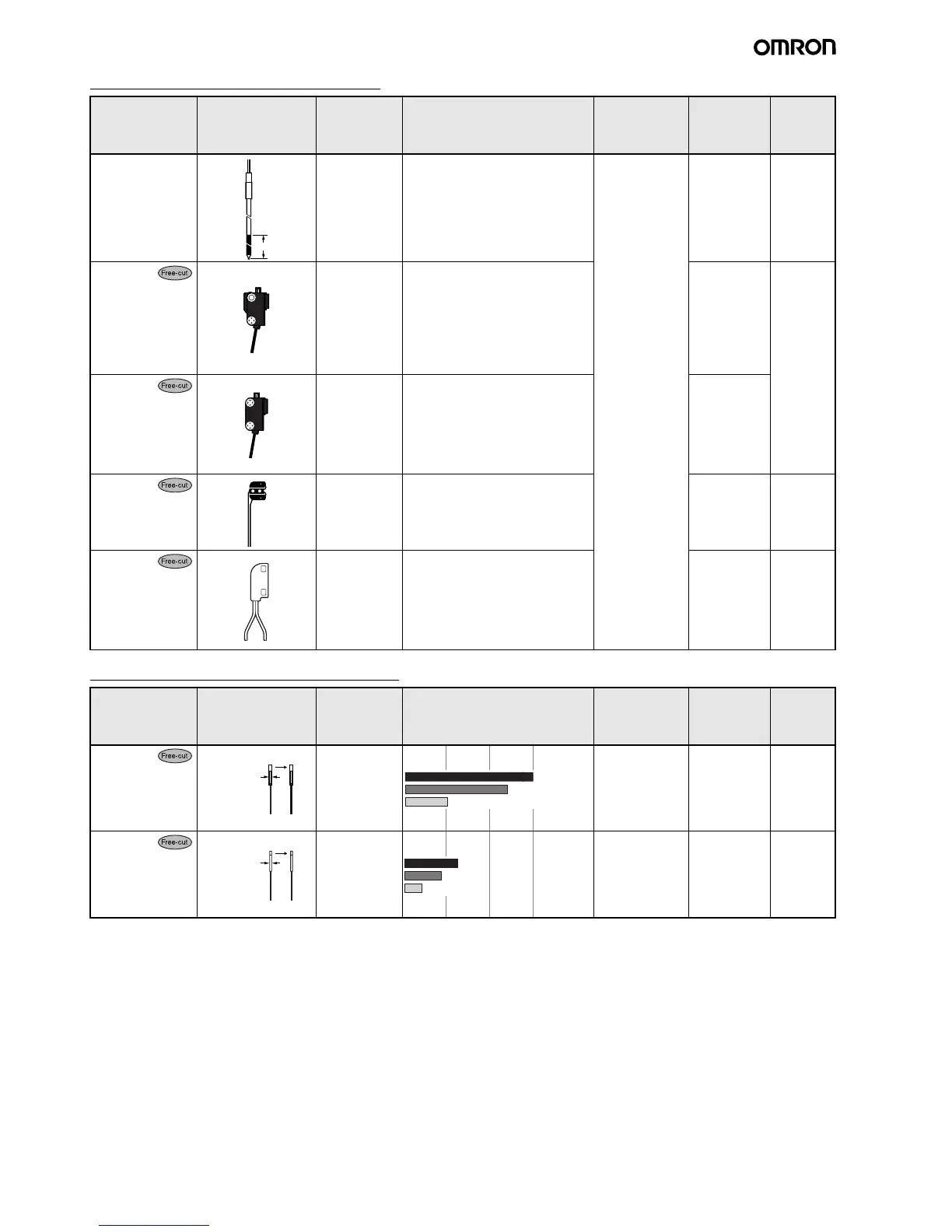

16 E3X-MDA Super Dual Fiber Sensors
Fluid-level Detection Fiber Units
Mapping Sensors (Through-beam)
Features Appearance Applicable
Amplifier Unit
Sensing distance (mm) Standard object
(min. sensing
object: Gold
wire)
Model Permissi-
ble bend-
ing radius
Fluid contact type:
unbendable section
L 150 mm, 350 mm
(two types); (oper-
ating ambient tem-
perature:
−40°C to
200
°C)
E3X-MDA --- Pure water at
25
°C
E32-D82F1
E32-D82F2
40 mm
Tube-mounting
type; Light ON
when fluid is
present; minimal in-
fluence from bub-
bles and water
drops
E3X-MDA Applicable tube: Transparent tube
Tube diameter: 3.2, 6.4, or 9.5 mm
(Tube must be FEP or material with
equivalent transparency; recom-
mended wall thickness: 1 mm)
E32-A01 4 mm
Tube-mounting
type; light ON when
fluid is present;
minimal influence
from bubbles and
water drops
E3X-MDA Applicable tube: Transparent tube
Tube diameter: 6 to 13 mm
(Tube must be FEP or material with
equivalent transparency; recom-
mended wall thickness: 1 mm)
E32-A02
Tube-mounting
type; dense mount-
ing to detect level
differences of 4 mm
E3X-MDA Applicable tube: Transparent tube
Tube diameter: 8 to 10 mm
(Tube must be FEP or material with
equivalent transparency; recom-
mended wall thickness: 1 mm)
E32-L25T 10 mm
Tube-mounting
type; unlimited tube
diameter; minimal
influence from bub-
bles and water
drops
E3X-MDA Applicable tube: Transparent tube
Tube diameter: No restriction
(Tube must be FEP or material with
equivalent transparency)
E32-D36F 4 mm
Features Appearance Applicable
Amplifier Unit
Sensing distance (mm) Standard object
(min. sensing
object: Gold
wire)
Model Permissi-
ble bend-
ing radius
Super-narrow vi-
sion field; side-
view; opening an-
gle: 1.5
°; simple
adjustment
E3X-MDA 2-mm dia.
(0.1-mm dia.)
E32-A03 1 mm
Super-narrow vi-
sion field; small;
side-view; opening
angle: 3
°; simple
adjustment
E3X-MDA 1.2-mm dia.
(0.1-mm dia.)
E32-A04 10 mm
L
3-mm dia.
750
580
250
2-mm dia.
300
220
100
