5-22-2 Using Logic Operations
z Making the Settings

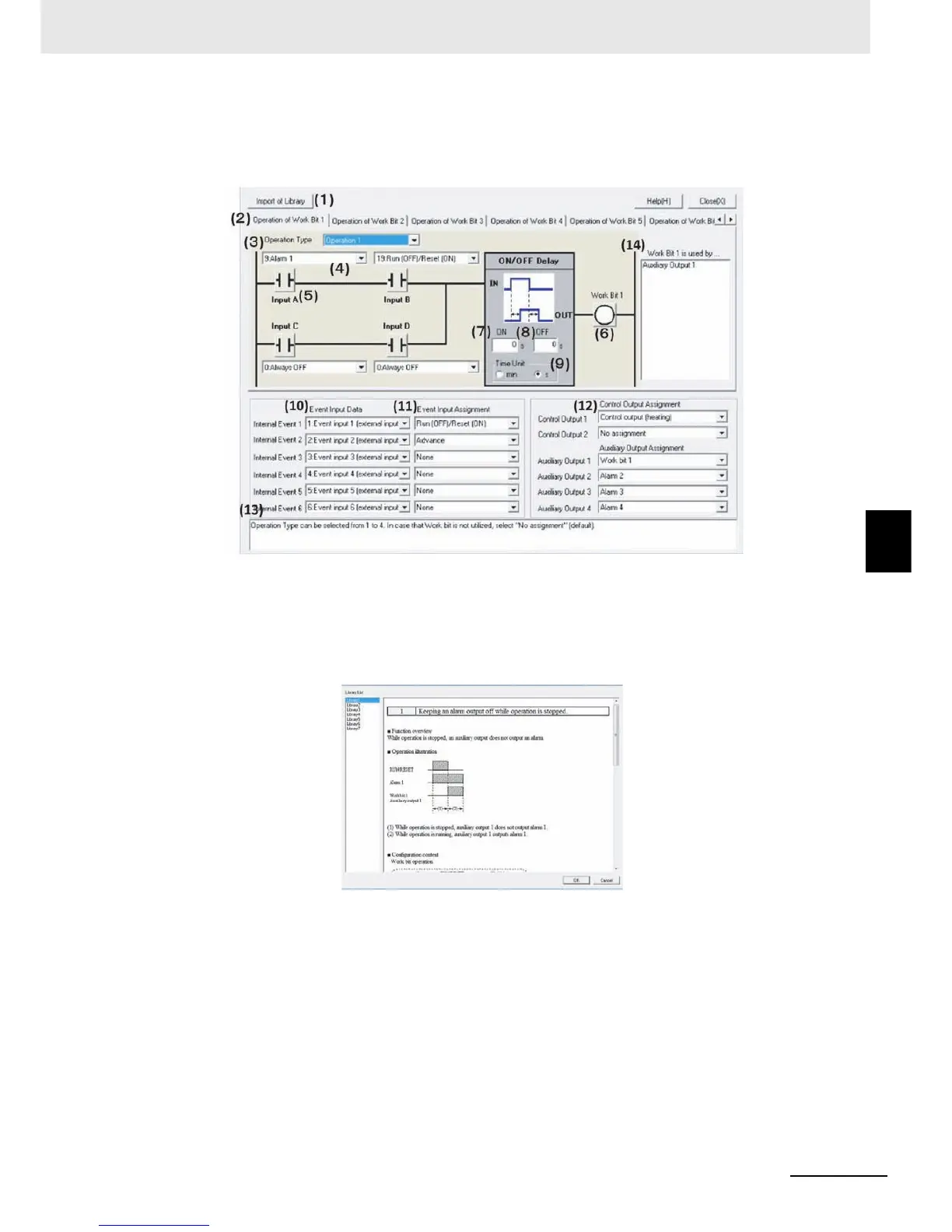

The following display will appear on the Logic Operation Editor Setting Window. Set each of the
parameters.
(1) Displaying the Library Import Dialog Box
Logic operation samples for specific cases are set in the library in advance. Examples of
settings for specific cases are loaded by selecting them from the library list and clicking the
OK Button.
Example: Selecting Library 1
(2) Switching Work Bit Operations
Select the work bit logic operations from the Operation of Work Bit 1 to Operation of Work
Bit 8 Tab Pages.
To Next Page
