Wiring Terminals Section 2-2

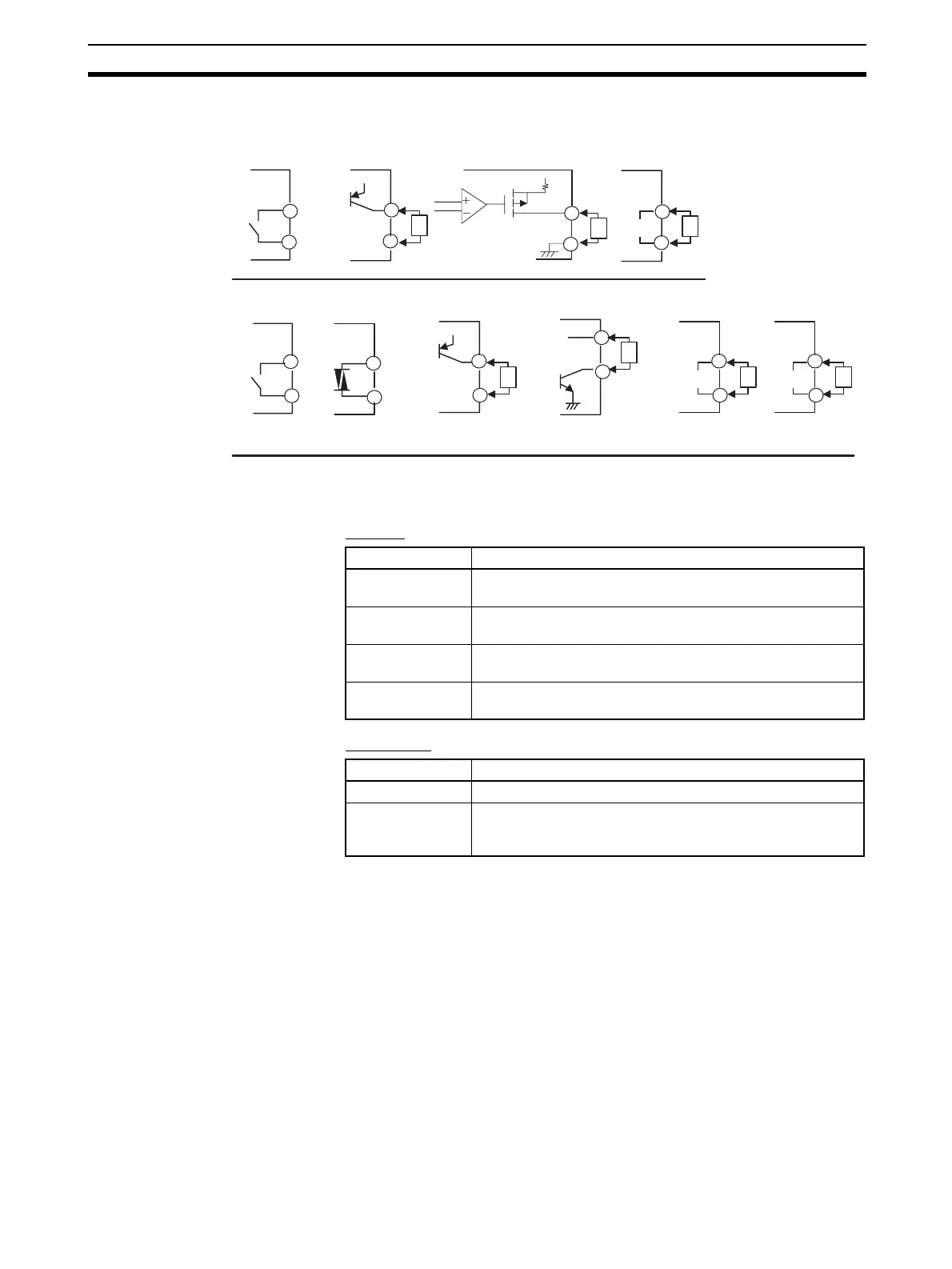

Control Output 1 • Outputs are sent from terminals 1 and 2 with the E5CN-H and from pins 3
and 4 with the E5AN/EN-H. The following diagrams show the available
outputs and their internal equalizing circuits.
• The following table shows the specifications for each output type.
E5CN-H
E5AN/EN-H
Note The SSR output (control output 1 or control output 2) ratings are as
follows:
• Rated load voltage: 75 to 250 VAC
• Rated load current: 1 A (resistance load)
Use the load current within the derating curve.
• A zero cross function is not supported.
+
−
L
VL
+
v
+
−
+
v
L
+
−
+
v
L
+
−
+
−
L
V
+
−
L
+
v
L
+
−
Relay
E5CN-H
E5AN/EN-H
Current
Voltage (for driving SSR)
Relay
GND
1
2
4
3
Linear voltage
GND
GND
E53-Q4 (PNP)
E53-QN (PNP)
E53-Q3 (NPN)
E53-V34N
E53-V35N
E53-C3N
E53-C3DN
mA
4
3
4
3
4
3
4
3
4
3
1
2
1
2
1
2
SSR
Output type Specifications
Relay 250 VAC, 3 A (resistive load), electrical durability: 100,000
operations
Voltage (for driv-
ing SSR)
PNP type, 12 VDC ±15%, 21 mA (with short-circuit protec-
tion)
Current DC 4 to 20 mA/DC 0 to 20 mA, resistive load: 600 Ω max.
Resolution: Approx. 10,000
Linear voltage 0 to 10 VDC, resistive load: 1 kΩ max.
Resolution: Approx. 10,000
Output type Specifications
SSR 75 to 250 VAC, 1 A (See note.)
Relay (Position-
proportional mod-
els)
250 VAC 1 A (including inrush current)
