Advanced Function Setting Level Section 5-10
5-10 Advanced Function Setting Level
The advanced function setting level is used for optimizing Controller perfor-
mance. To move to this level, input the password (“−169”) from the initial set-
ting level.
To be able to enter the password, the Initial Setting/Communications Protect
parameter in the protect level must be set to 0. (The default is 0.)
• The parameters in this level can be used when the Initial Setting/Commu-
nications Protect parameter is set to 0.
• To switch between setting levels, press the O Key.
• To change set values, press the U and D Keys.

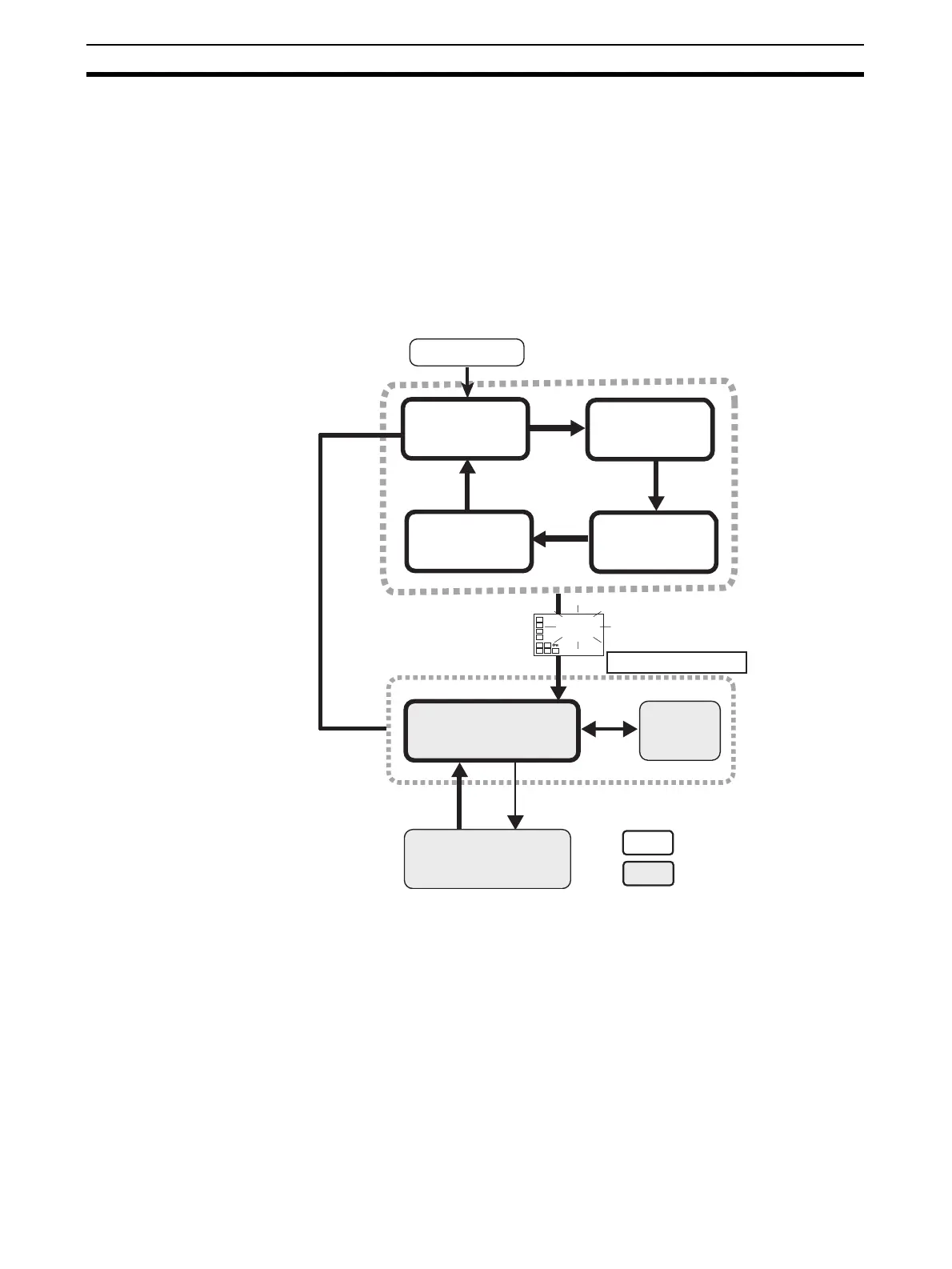

Password input
set value −169
Control in progress
Control stopped
Operation
Level
Initial Setting
Level
Control stops.
Communi-
cations
Setting
Level
Adjustment
Level
Power ON
Advanced Function
Setting Level
PID Setting
Level
Bank Setting
Level
25.0
100.0
C
Press the O Key
for at least 1 s.
Press the
O Key less than 1 s.
Press the
O Key
for at
least 3 s.
Press the O Key for at
least 3 s.
Press the
O Key for less than 1 s.
Press the O Key
for at least 1 s.
