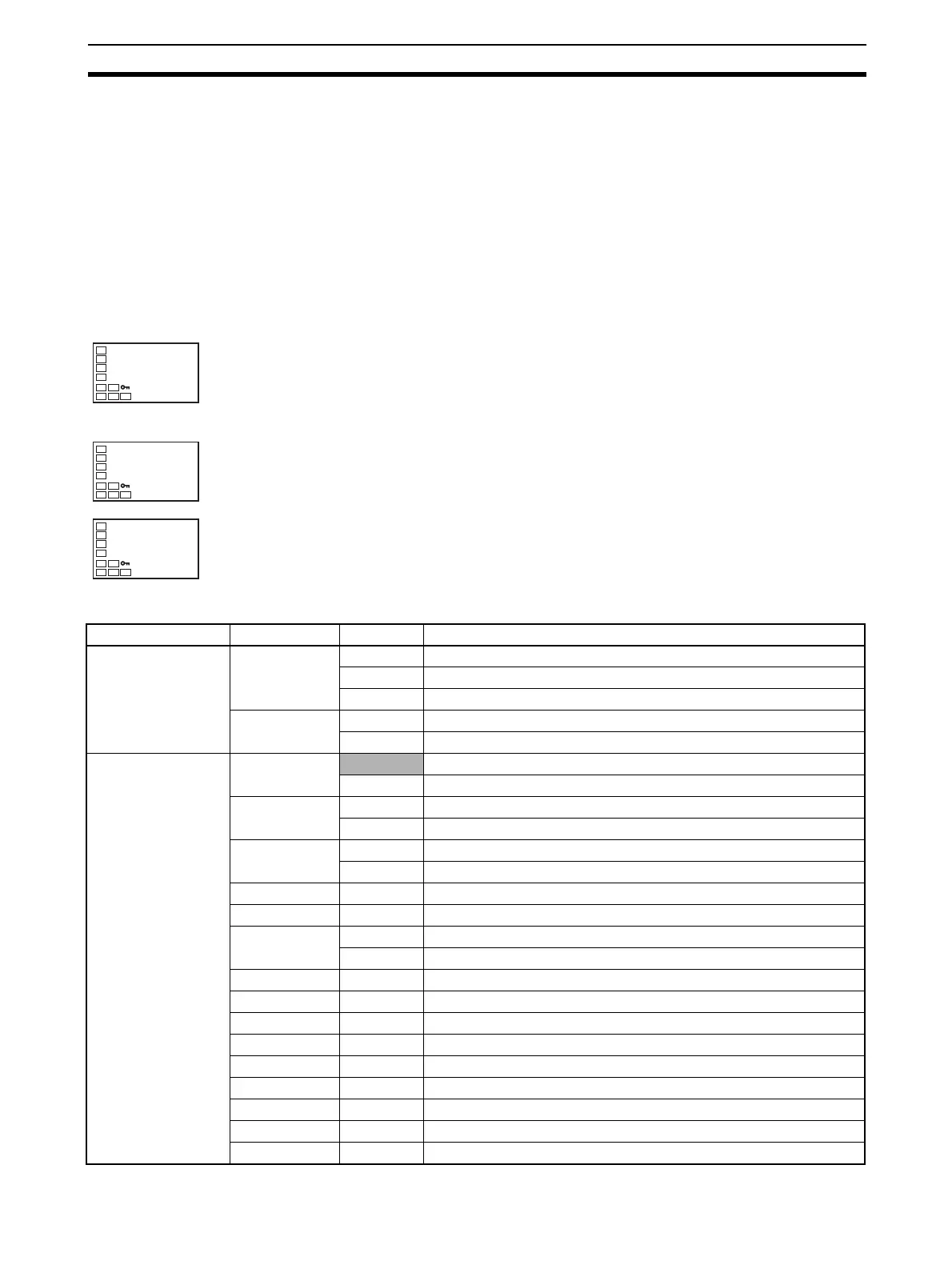

Setting the Input Type Section 3-2
3-2 Setting the Input Type
The Controller supports 3 input types: platinum resistance thermometer, ther-
mocouple, and analog inputs. Set the input type that matches the sensor that
is used.
3-2-1 Input Type
The following example shows how to set a K thermocouple for −20.0 to
500.0°C.
Operating Procedure
List of Input Types
Operation Level
1. Press the O Key for at least three seconds to move from the operation
level to the initial setting level.
Initial Setting Level
2. Press the U Key to enter the set value of the desired sensor.
When you use a K thermocouple (−20.0 to 500.0°C), enter 6 as the set
value.
Hint: The key operation is saved two seconds after the change, or by press-
ing the O or M Key.
Input type Specifications Set value Input temperature setting range
Platinum resistance
thermometer
Pt100 0 −200.0 to 850.0 (°C)/−300.0 to 1,500.0 (°F)
1 −199.9 to 500.0 (°C)/−199.9 to 900.0 (°F)
2 0.0 to 100.0 (°C)/0.0 to 210.0 (°F)
JPt100 3 −199.9 to 500.0 (°C)/−199.9 to 900.0 (°F)
4 0.0 to 100.0 (°C)/0.0 to 210.0 (°F)
Thermocouple K
5 −200.0 to 1,300.0 (°C)/−300.0 to 2,300.0 (°F)
6 −20.0 to 500.0 (°C)/0.0 to 900.0 (°F)
J7−100.0 to 850.0 (°C)/−100.0 to 1,500.0 (°F)
8 −20.0 to 400.0 (°C)/0.0 to 750.0 (°F)
T9−200.0 to 400.0 (°C)/−300.0 to 700.0 (°F)
10 −199.9 to 400.0 (°C)/−199.9 to 700.0 (°F)
E11−200.0 to 600.0 (°C)/−300.0 to 1,100.0 (°F)
L12−100.0 to 850.0 (°C)/−100.0 to 1,500.0 (°F)
U13−200.0 to 400.0 (°C)/−300.0 to 700.0 (°F)
14 −199.9 to 400.0 (°C)/−199.9 to 700.0 (°F)
N15−200.0 to 1,300.0 (°C)/−200.0 to 2,300.0 (°F)
R 16 0.0 to 1,700.0 (°C)/0.0 to 3,000.0 (°F)
S 17 0.0 to 1,700.0 (°C)/0.0 to 3,000.0 (°F)
B 18 100.0 to 1,800.0 (°C)/300.0 to 3,200.0 (°F)
W 19 0.0 to 2,300.0 (°C)/0.0 to 3,200.0 (°F)
PLII 20 0.0 to 1,300.0 (°C)/0.0 to 2,300.0 (°F)
K21−50.0 to 200.0 (°C)/−50.0 to 200.0 (°F)
J22−50.0 to 200.0 (°C)/−50.0 to 200.0 (°F)
T23−50.0 to 200.0 (°C)/−50.0 to 200.0 (°F)
C
25.0
0.0
in-t
5
Input Type
in-t
6
To Next Page
