3

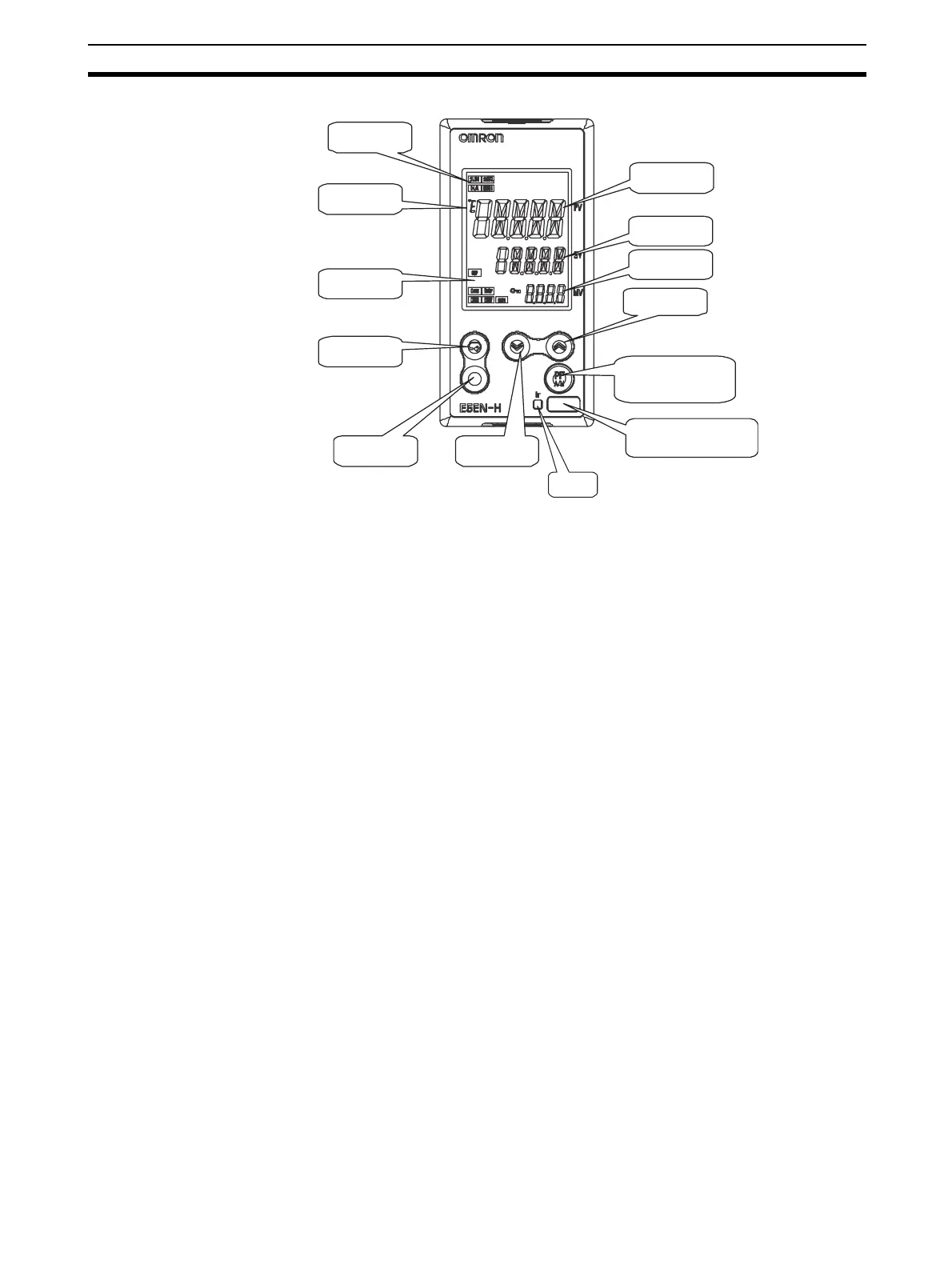

Names of Parts Section 1-1
E5EN-H
1-1-2 Explanation of Indicators
No. 1 Display Displays the process value or parameter name.
Lights for approximately one second during startup.
No. 2 Display Displays the set point, parameter operation read value, or the variable input
value.
Lights for approximately one second during startup.
No. 3 Display
(E5AN/EN-H Only)
Displays MV (valve opening), soak time remain, or bank number.
Lights for approximately one second during startup.
Operation Indicators
1,2,3... 1. SUB1 (Sub 1)
Lights when the function set for the Auxiliary Output 1 Assignment param-
eter is ON.
SUB2 (Sub 2)
Lights when the function set for the Auxiliary Output 2 Assignment param-
eter is ON.
SUB3 (Sub 3)
Lights when the function set for the Auxiliary Output 3 Assignment param-
eter is ON.
2. HA (Heater Burnout, Heater Short Alarm, Heater Overcurrent Detection
Output Display)
Lights when a heater burnout, heater short alarm, or heater overcurrent
occurs.
3. OUT1 (Control Output 1)
Lights when the control output function assigned to control output 1 turns
ON. For a current output, however, OFF for a 0% output only.
With position-proportional models, OUT1 lights when the "open" output
turns ON.
Infrared Communications
Light Receiver
No. 1 display
No. 2 display
Mode Key
Up Key
Level Key
Down Key
Temperature
unit
Operation
indicators
Operation
indicators
No. 3 display
Ir
PF (Function (Auto/
Manual)) Key
