34
Wiring Terminals Section 2-2

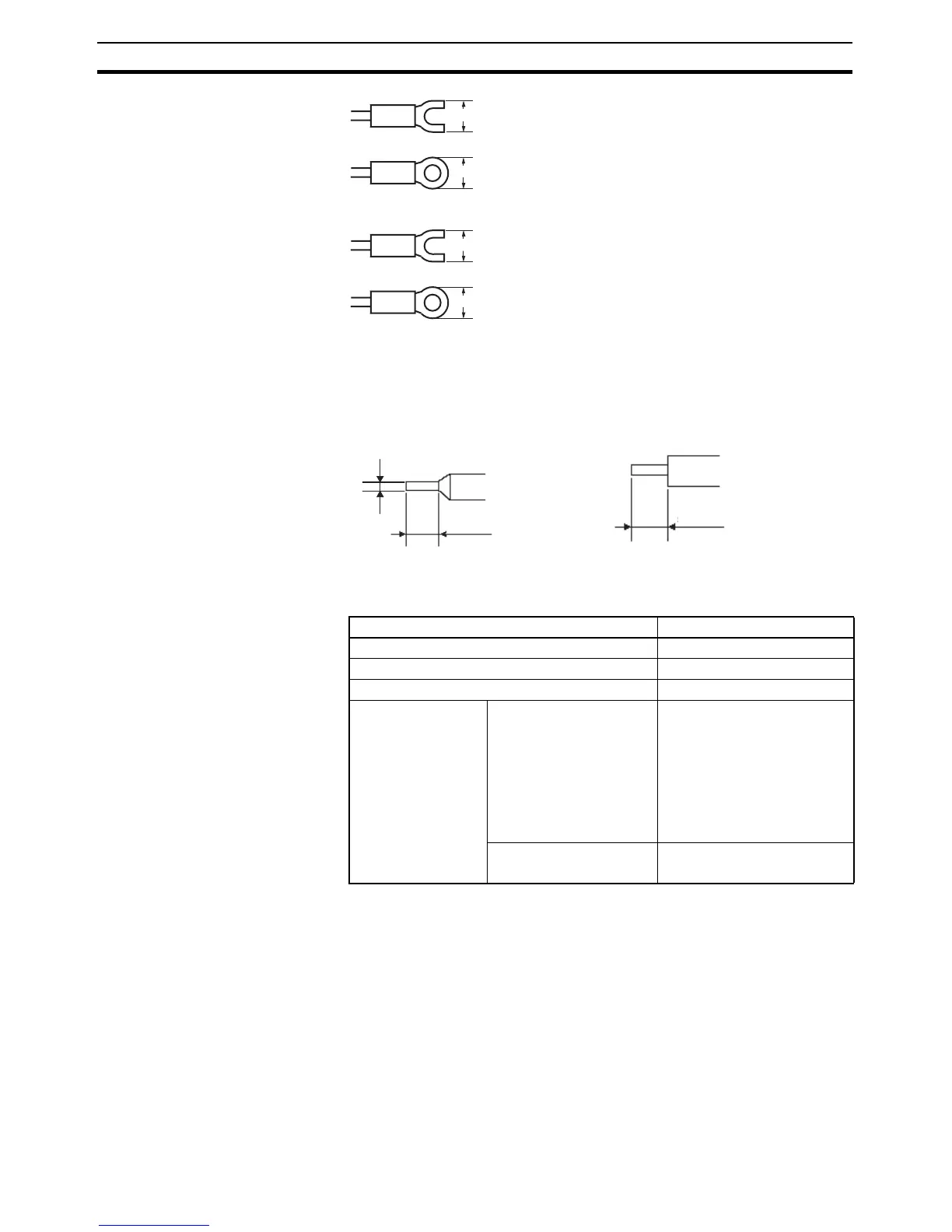

• For the E5GN, use the following types of crimp terminals for M3.0 screws.
• For E5GN screwless clamp terminal blocks, use wires with a gauge of
AWG24 to AWG18 (equal to a cross-sectional area of 0.205 to
0.823 mm
2
). The length of the conductive portion inserted into the termi-
nal must be 10 mm for wires and 8 to 12 mm for ferrules. Ferrules must be
0.8 to 1.4 mm in diameter.
• Recommended Ferrules for E5GN Screwless Clamp Terminals
• Use wires with a gauge of AWG24 to AWG18 (0.205 to 0.823 mm
2
) for
auxiliary output 2 on the E5GN.
The exposed conductor length inserted into the terminal for wires or fer-
rules must be 6 mm. Ferrules must be 0.8 to 1.5 mm in diameter.
Manufacturer Model number
Altech Corp. 2623.0
Daido Solderless Terminal Mfg. Co. AVA-0.5
J.S.T. Mfg. Co. TUB-0.5
Nichifu Co. Single (1 wire) TGNTC-1.25-9T
TGVTC-1.25-11T
TGNTC-1.25-11T
TC0.3-9.5
TC1.25-11S-ST
TC1.25-11S
TC2-11S
Double (2 wires) TGWVTC-1.25-9T
TGWVTC-1.25-11T
7.2 mm max.
7.2 mm max.
5.8 mm max.
5.8 mm max.
8 to 12 mm
10 mm
Ferrules wires
0.8 to 1.4 mm
