Digital Temperature Controllers E5CN/E5CN-U 11

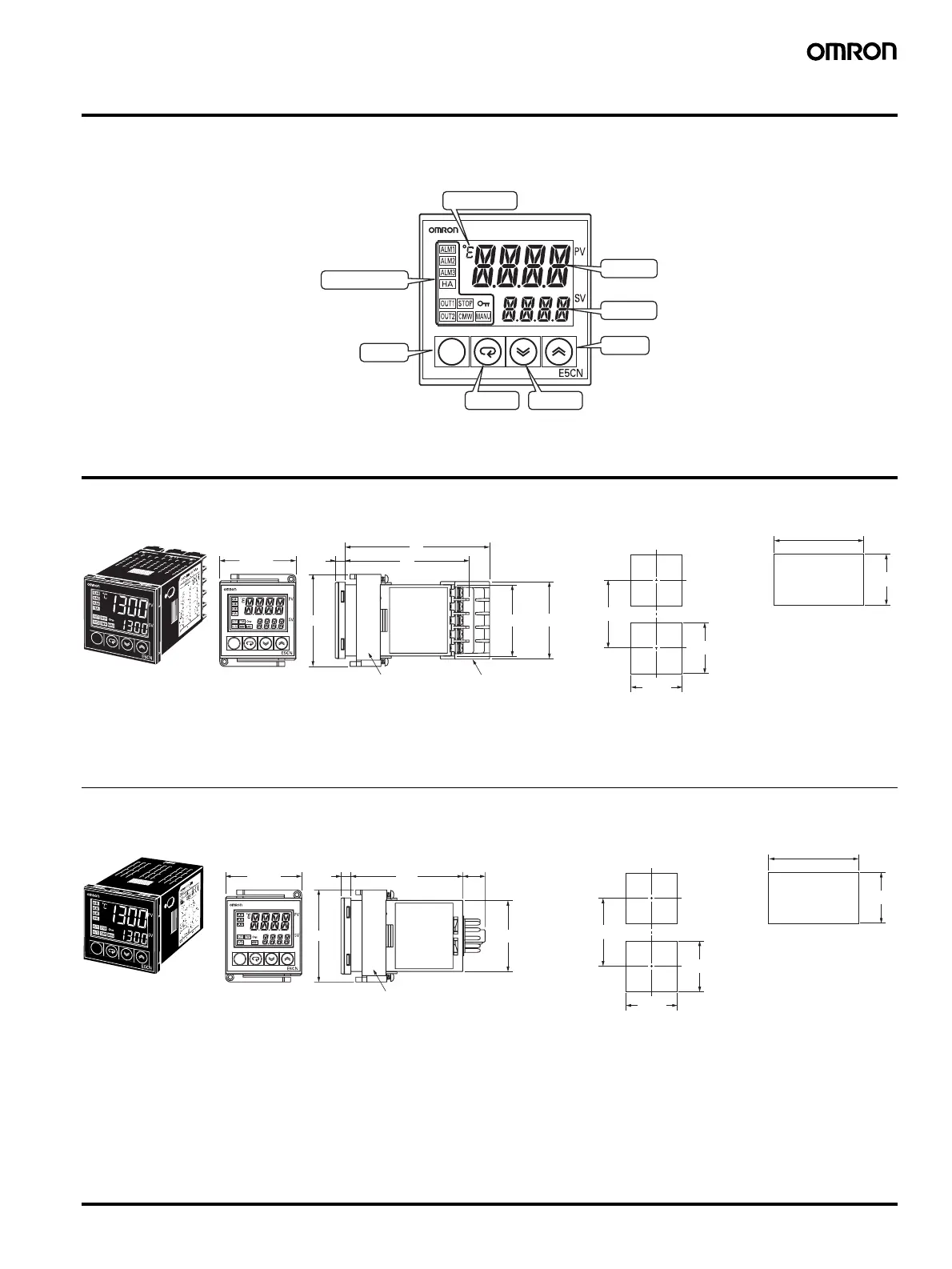

Nomenclature
E5CN
E5CN-U
The front panel is the same for the E5CN and E5CN-U.
Dimensions
Operation indicators
Level Key
Temperature unit
No.1 display
No. 2 display
Up Key
Mode Key Down Key
48 × 48
Terminal Cover
(E53-COV10)
6
58 44.8 × 44.8
48.8
91
78
Mounting Adapter
(Accessory)
60 min.
(48
× number of units −2.5)
+1.0
0
45
+0.
0
45
+0.6
0
45
+0.6
0
Group mounting does not
allow waterproofing.
Panel Cutout
Mounted Separately
Group Mounted
E5CN
Terminal Models
• Recommended panel thickness is 1 to
5 mm.
• Group mounting is not possible in the
vertical direction. (Maintain the
specified mounting space between
Controllers.)
• To mount the Controller so that it is
waterproof, insert the waterproof
packing onto the Controller.
• When two or more Controllers are
mounted, make sure that the
surrounding temperature does not
exceed the allowable operating
temperature specified in the
specifications.
Note: The terminal block cannot be removed.
The suffix “-500” is added to the model number
of each Controller provided with a E53-COV10
Terminal Cover.
6
14.2
58
70.5
48 × 48
44.8 × 44.
Mounting Adapter
(Accessory)
60 min.
(48 × number of units −2.5)
+1.0
0
45
+0.6
0
45
+0.6
0
Panel Cutout
Mounted Separately
Group Mounted
45
+0.6
0
E5CN-U
Plug-in Models
• Recommended panel thickness is 1 to
5 mm.
• Group mounting is not possible in the
vertical direction. (Maintain the
specified mounting space between
Controllers.)
• When two or more Controllers are
mounted, make sure that the
surrounding temperature does not
exceed the allowable operating
temperature specified in the
specifications.
