28 Infrared Thermosensor ES1B

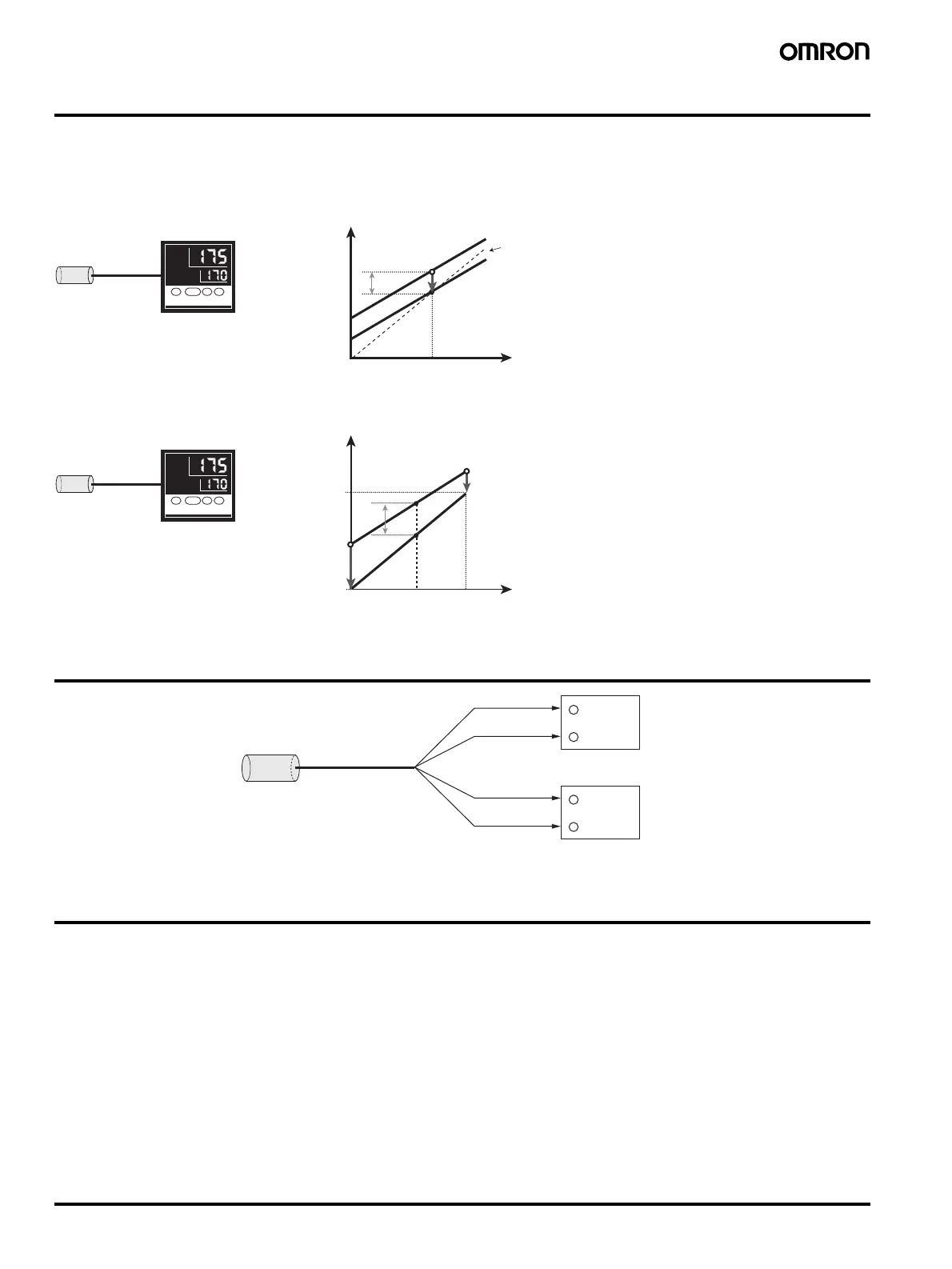

Adjustment Methods
Adjust the Thermosensor as described below before using it.
Adjust the Thermosensor according to the conditions of the sensing object and characteristics of the
Temperature Controller.
Offset Compensation for Target Value with Input Shift Function
Gain and Offset Compensation with Two-point Shift Function
Connections
Precautions
Refer the ES1B Infrared Thermosensor Catalog (Cat. No. H127) for safety precautions and related information.
Temperature Controller
(such as E5CS)
The error caused at the
time the Thermosensor is
connected to the
Temperature Controller.
Compensated with the
input shift function of
the Temperature
Controller
Target value
Actual tem
erature of sensin
ob
ect sam
le
PV display of
Temperature
Controller
Temperature
characteristics of
target sensing objec
Temperature Controller
(such as E5@N or E5@K)
The error caused by
the condition of the
sensing objects or at
the time the Thermosensor is
connected to the
Temperature Controller.
Compensated with the
two-point shift function
(for the upper and
lower sides) of the
Temperature
Controller.
PV display of
Temperature
Controller
Upper limit of
SV of
Temperature
Controller
Lower limit of SV of
Temperature Controller
Target value
(Actual temperature of sensing object sample)
Upper limit side
Lower limit side
Temperature Controlle
Green, Output +
White, Output −
+
-
Thermocouple
(K)
input terminals
DC power supply
Orange, Power +
Shield, Power −
12/24 VDC
GND
To Next Page
