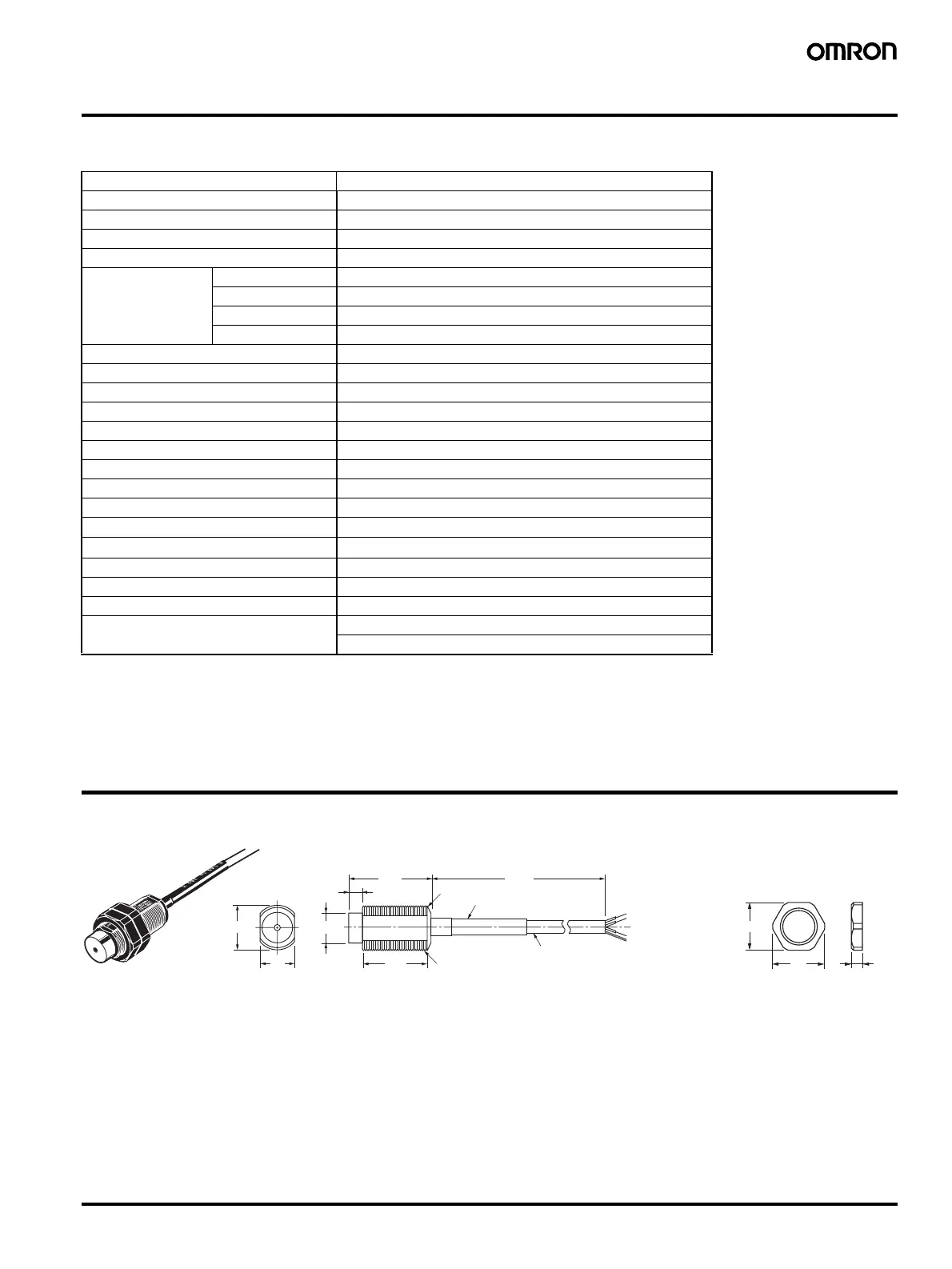

Infrared Thermosensor ES1B 27
Specifications
■ Ratings/Characteristics
Note: 1. Based on characteristics of K-type thermocouple and radiation rate of 0.9.
2. The accuracy is given as the change in temperature from any reference temperature of the sensing object. For example, if the reference
temperature is 50
°C, the accuracy at 55°C would be ±2% PV or ±2°C, whichever is larger and the accuracy at 60°C would be ±4% PV
or
±4°C, whichever is larger.
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Item ES1B
Power supply voltage 12/24 VDC
Operating voltage range 90% to 110% of the power supply voltage
Current consumption 20 mA max.
Measuring temperature range 10 to 70
°C, 60 to 120°C, 115 to 165°C, 140 to 260°C
Accuracy
(See note 1.)
±5°C (See note 2.) ±2% PV or ±2°C, whichever is larger
±10°C (See note 2.) ±4% PV or ±4°C, whichever is larger
±30°C (See note 2.) ±6% PV or ±6°C, whichever is larger
±40°C (See note 2.) ±8% PV or ±8°C, whichever is larger
Reproducibility
±1% PV or ±1°C, whichever is larger
Temperature drift 0.4
°C/°C max.
Sensing distance vs. sensing diameter 1:1 typ.
Measurement wavelength 6.5 to 14.0
µm
Receiver element Thermopile
Response speed Approximately 300 ms at response rate of 63%
Output impedance 1 to 4 k
Ω
Operating temperature −25°C to 70°C (with no icing or condensation)
Allowable ambient humidity 35% to 85%
Vibration resistance (destruction)
98 m/s
2
for 2 hours each in X, Y, and Z directions at 10 to 55 Hz
Shock resistance (destruction)
300 m/s
2
for 3 times each in X, Y, and Z directions
Casing material ABS resin
Degree of protection IP65
Weight Approx. 120 g
Cable Compensating conductor: 3 m
PVC-covered cable with a shield wire resisting 70
°C
ES1B
Mounting Lock Nuts (Two) (Provided)
17.8
14.2 dia.
36.5
15
6.5
44.5
3,000
ABS resin
PVC-covered
(−25°C to 70°C)
Polyolefin tube
Screw M18×1.0
7
26
24
Green, Output +
White, Output −
Orange, Power +
Shield, Power −
