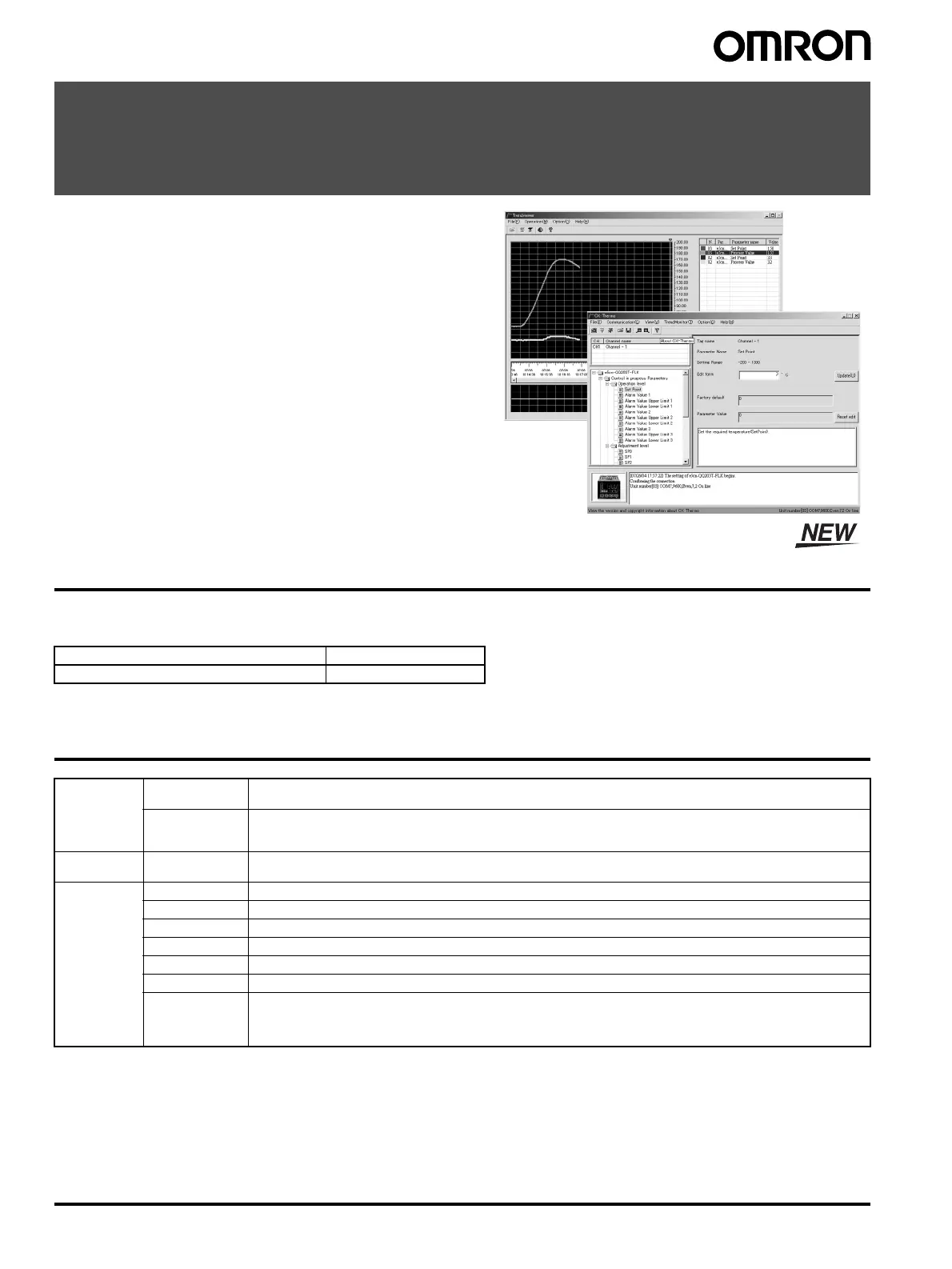

24 CX-Thermo Support Software Ver. 1.0 EST2
CX-Thermo Support Software Ver. 1.0
EST2
Monitoring/Setting Support Software for
E5CN- and E5ZN-series Temperature
Controllers Providing Easy Setup, Online
Data Logging, and Realtime Monitoring.
• Enables creating, editing, and batch-downloading parameters
from a personal computer, reducing the work required to set
parameters.
• Supports Online Monitoring:
Monitor data for up to 31 Temperature Controllers at the same
time.
(The Temperature Controllers must be from the same series.)
• Supports parameter masks for hiding unused parameters
(E5CN only).
Ordering Information
■ List of Models
Note: The old models of E5CN Temperature Controller (manufactured in March 2004 or earlier) are not supported.
Specifications
Note: 1. This function hides parameters that are not being used. The parameter mask setting can be written from the computer to the E5CN only
(new E5CN models only).
2. Simple data logging enables approximately two hours of data logging when tuning. For continuous data collection, the time during which
data can be collected depends on the hardware specifications of the personal computer (memory capacity and available space on the
harddisk).
Data collection may not be possible during the set logging interval depending on the operating conditions (personal computer processing
speed, baud rate, number of parameters, communications retries, etc.). In this case, the data will be collected in the shortest collection
interval for the usage environment.
3. The old models of E5CN Temperature Controller (manufactured in March 2004 or earlier) are not supported.
Name Model
CX-Thermo Support Software EST2-2C-MV1
Basic
functions
Offline Creating, changing, and saving parameters
(Some parameters must be set on the Temperature Controller. Use the switches and keys to set those parameter.)
Online Uploading and downloading parameters
Other functions include editing parameters during operation, parameter masks (see note 1), sending operating
instructions, trend monitoring, and simple data logging (See note 2).
Compatible
devices
Temperature
Controllers
E5CN (new models) (See note 3.), E5ZN
Personal
computer
system
requirements
CPU 300 MHz min.
OS Windows 2000 or XP
Memory 128 MB min.
Hard disk 650 MB min. available space
CD-ROM One CD-ROM drive
Monitor SVGA (800
× 600). Recommended: XGA (1024 × 768), high color (16 bits) min.
Communications
ports
• RS-232C port, COM1 to COM8
• USB port can be used if the E58-CIFQ1 is used (E5CN only).
• USB port can be used if the K3SC is used. (Connection to E5CN is supported only for models with
communications.)
