6 Digital Temperature Controllers E5CN/E5CN-U

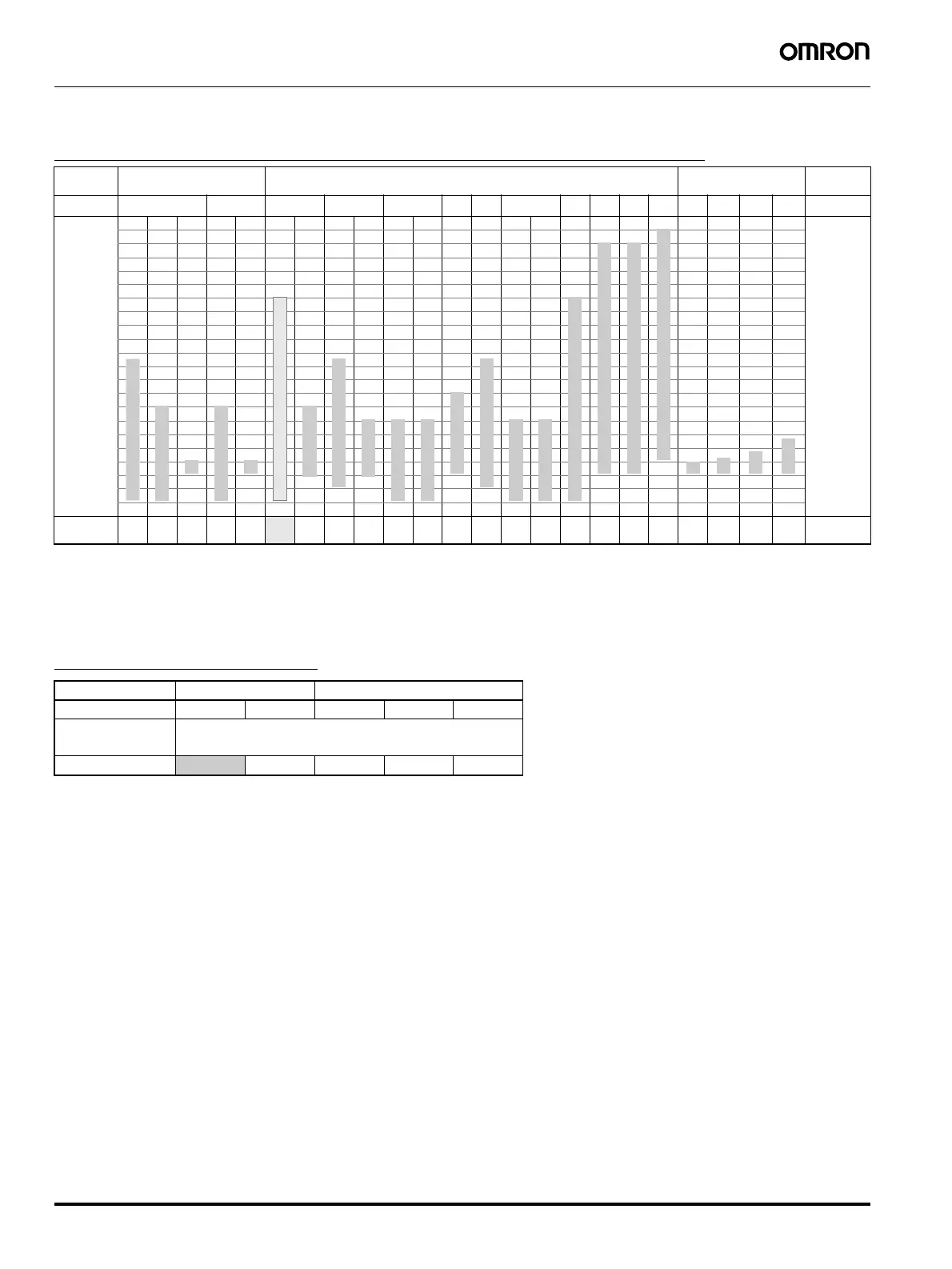

■ Input Ranges
Thermocouples/Platinum Resistance Thermometers (Multi-inputs)
Models with Analog Inputs
Input
Type
Platinum resistance
thermometer
Thermocouple Infrared temperature
sensor
Analog
input
Name Pt100 JPt100 K J T E L U N R S B
10 to
70°C
60 to
120°C
115 to
165°C
160 to
260°C
0 to 50 mV
1800
1700
1600
1500
1400
1300
1200
1100
1000
900
800
700
600
500
400
300
200
100
0
−100.0
−200.0
1800
Usable in
the following
ranges by
scaling:
− 1999 to
9999 or
− 199.9 to
999.9
1700 1700
1300 1300
850 850 850
600
500.0 500.0 500.0
400.0 400 400.0 400 400.0
260
120 165
100.0 100.0 90
100
0.0 0.0 0 0 0 0 0 0 0
−20.0 −100 −20.0 −100
−200 −199.9 −199.9 −200 −200 −199.9 −200 −199.9 −200
Setting
number
012345 6 7 8 9 1011121314151617181920 21 22 23
Temperature range (
°
C)
The applicable standards for the input types
are as follows:
K, J, T, E, N, R, S, B: IEC584-1
L: Fe-CuNi, DIN 43710-1985
U: Cu-CuNi, DIN 43710-1985
Pt100: IEC 751
Shaded settings are the default settings.
Input Type Current Voltage
Input specification 4 to 20mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V
Setting range Usable in the following ranges by scaling:
− 1999 to 9999, − 199.9 to 999.9, − 19.99 to 99.99 or − 1.999 to 9.999
Setting number 01234Shaded settings are the default settings.

Omron E5CN Specifications

General

Communication	RS-485 (optional)
Mounting	Panel Mount
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage (for driving SSR), Current
Display Type	7-segment LED
Size	48 x 48 mm
Control Output	Relay, Voltage (for driving SSR), Current
Alarm Output	1 or 2 outputs
Dimensions	48 x 48 x 78 mm
Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP66
