Controlling Operation and Outputting Data with EtherNet/IP Communications
FQ2-S/CH User’s Manual
for Communications Settings
99
3
Controlling Operation and Outputting Data with an
Ethernet Connection
● Expression Setting Example
This example registers an expression to output the following inspection results for data 0.
Inspection item: 0 Search
Parameters to output: Position X, Position Y, Reference SX, and Reference SY
Multi-point output setting: Multi-point output Check Box selected, Count = 4

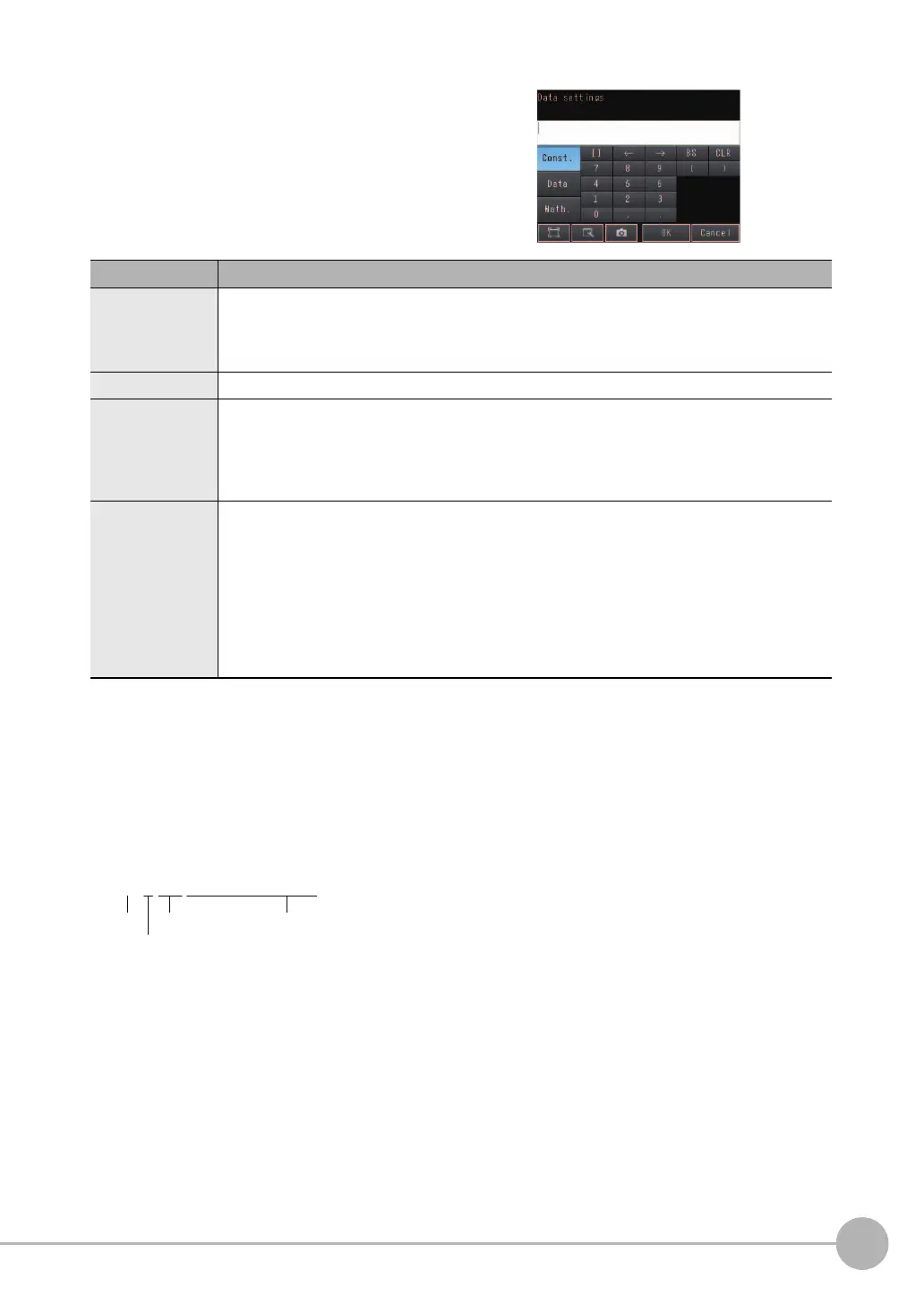

3 Set the following items on the display to set expres-
sions.
Item Description
Expression Register the expression to use to output multiple data.
Examples:
LPR (0, 3, I0.X, I0.Y)
LPC (0, I0.C, I0.X, I0.Y)
Const. Used to insert numbers and symbols into the expression.
Data Used to select the inspection items for which to output data and insert the parameters to output
into the expression.
Example: Selecting Parameters for the Search Item at Inspection Item 0
Inspection item: I0. Search
Judgement result: Judgement JG, Correlation: Corre. CR
Math. Either of the following two functions can be inserted.
• LPR function (order of the measurement data)
The measurement data is output in order.
Format: LPR(start_number,number_of_data,data_1, data_2,...data_5)
You can omit data 2 to data 5.
• LPC function (order of the detection points)
Data is output for each detected measurement point.
Format: LPC(start_number,number_of_data,data_1, data_2,...data_5)
You can omit data 2 to data 5.
To register something to data 1 and higher, repeat this process.
The settings will be enabled after you restart the Sensor.
LPR(0,I0.C , I0.X,I0.Y,I0.SX,I0.SY)
Start_number
Number_of_data
(Detection count)
data_A, data_B...data_dFunction
