Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
42
FQ2-S/CH User’s Manual
for Communications Settings

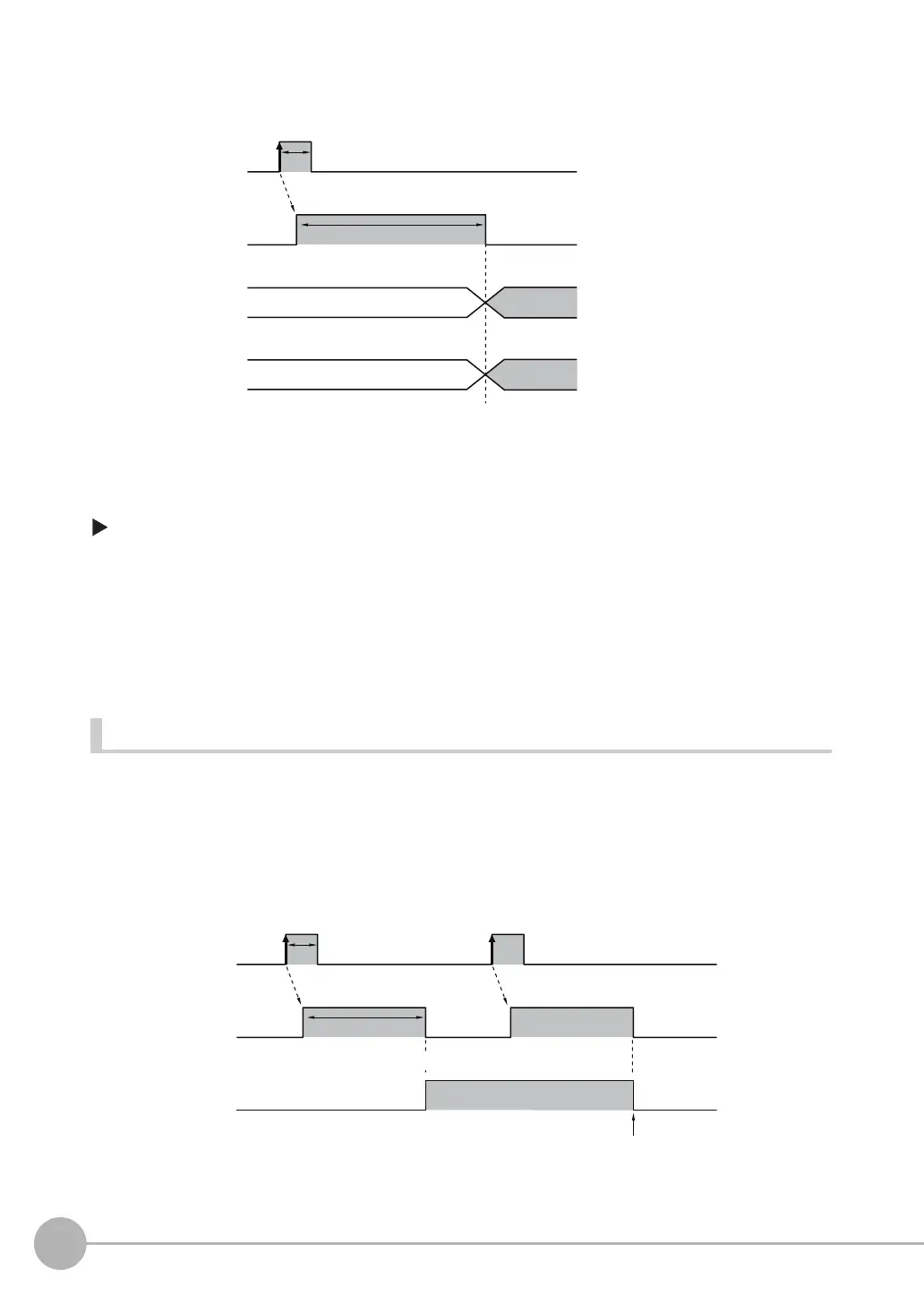

Timing Chart
Output OR0 to OR31 signals are held until the next judgement output.
*1: The timing for updating the OR signal is when the measurement results are finalized, regardless of the output settings of the BUSY signal
(BUSY output conditions).
Settings
[In/Out] − [I/O setting] − [I/O setting] − [Output]
1 Press [OUT0].
2 Press [OR2 (Item 2 judgement)].
OR2 output signal was assigned to OUT0.
3 Assign the others in the following manner.
OUT1: OR5
OUT2: OR14
Adjusting the Judgement Output Timing
The output timing of the OR signal or OR0 to OR31 signals can be selected from two modes depending on the
external device.
Selecting the OFF Timing
• Level output (default)
The status of the output OR signal is held until the next OR signal is output.
OFF
ON
OFF
ON
OR1 signal
Turned ON when individual
judgement is NG.
(OR output: ON for NG)
OR0 signal
Turned ON when individual
judgement is NG.
(OR output: ON for NG)
Example:
ON while measurements are
being processed (depends
on BUSY output conditions)
BUSY signal
TRIG signal
ON for 1 ms min.
Individual
judgement
*1
OFF
ON
OFF
ON
OFF
ON
NGOK
Held until the next
judgement result is output
Overall judgement
(OR output: ON for NG)
OR signal
ON while measure-
ments are being
processed (depends
on BUSY output
conditions)
BUSY signal
TRIG signal ON for 1 ms min.
