Controlling Operation and Outputting Data with a Par-
allel Connection
• One-shot output
The status of the output OR signal is turned OFF after a specified time has passed. (Setting range: 0 to 1,000 ms)
Delaying the Output Timing
When using one-shot output, the output timing of the OR signal can be delayed. (Setting range: 0 to 1,000 ms)
Settings
[In/Out] − [I/O setting] − [I/O setting] − [Output]
1 Press [Output mode] and press [Level output] or
[One-shot output].
2 Press [Output delay] and set the one-shot output de-
lay.
3 Press [OK].
4 Press [Output time] and set the one-shot output time.
5 Press [OK].

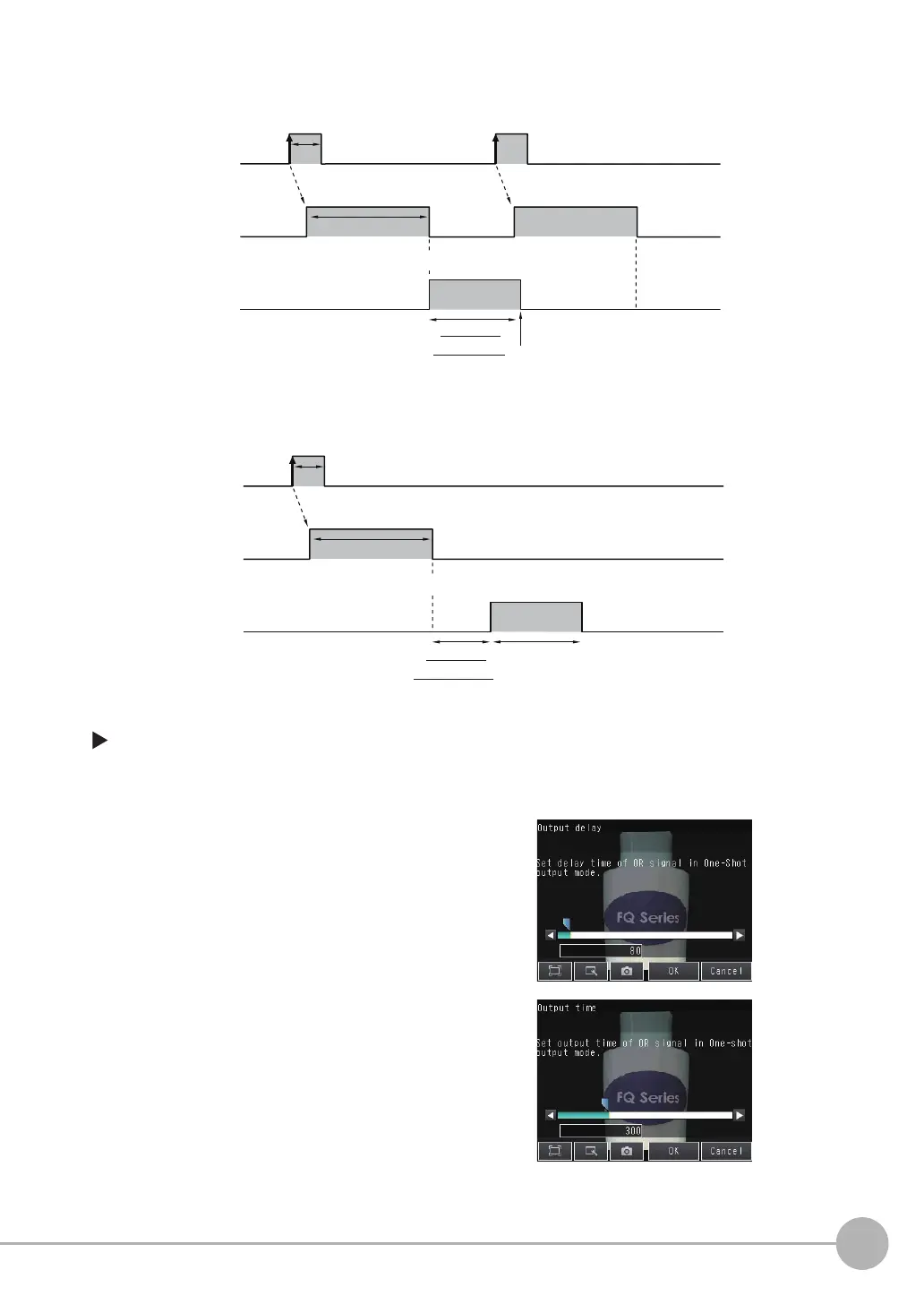

OFF
ON
OFF
ON
OFF
ON
NGOK
Turns OFF.
One-shot
output time
Overall judgement
(OR output: ON for NG)
OR signal
ON while
measurements are
being processed
(depends on BUSY
output conditions)
BUSY signal
TRIG signal
ON for 1 ms min.
OFF
ON
OFF
ON
OFF
ON
NG
One-shot
output time
Overall judgement
(OR output: ON for NG)
OR signal
ON while
measurements are
being processed
(depends on BUSY
output conditions)
BUSY signal
TRIG signal ON for 1 ms min.
One-shot
output delay
