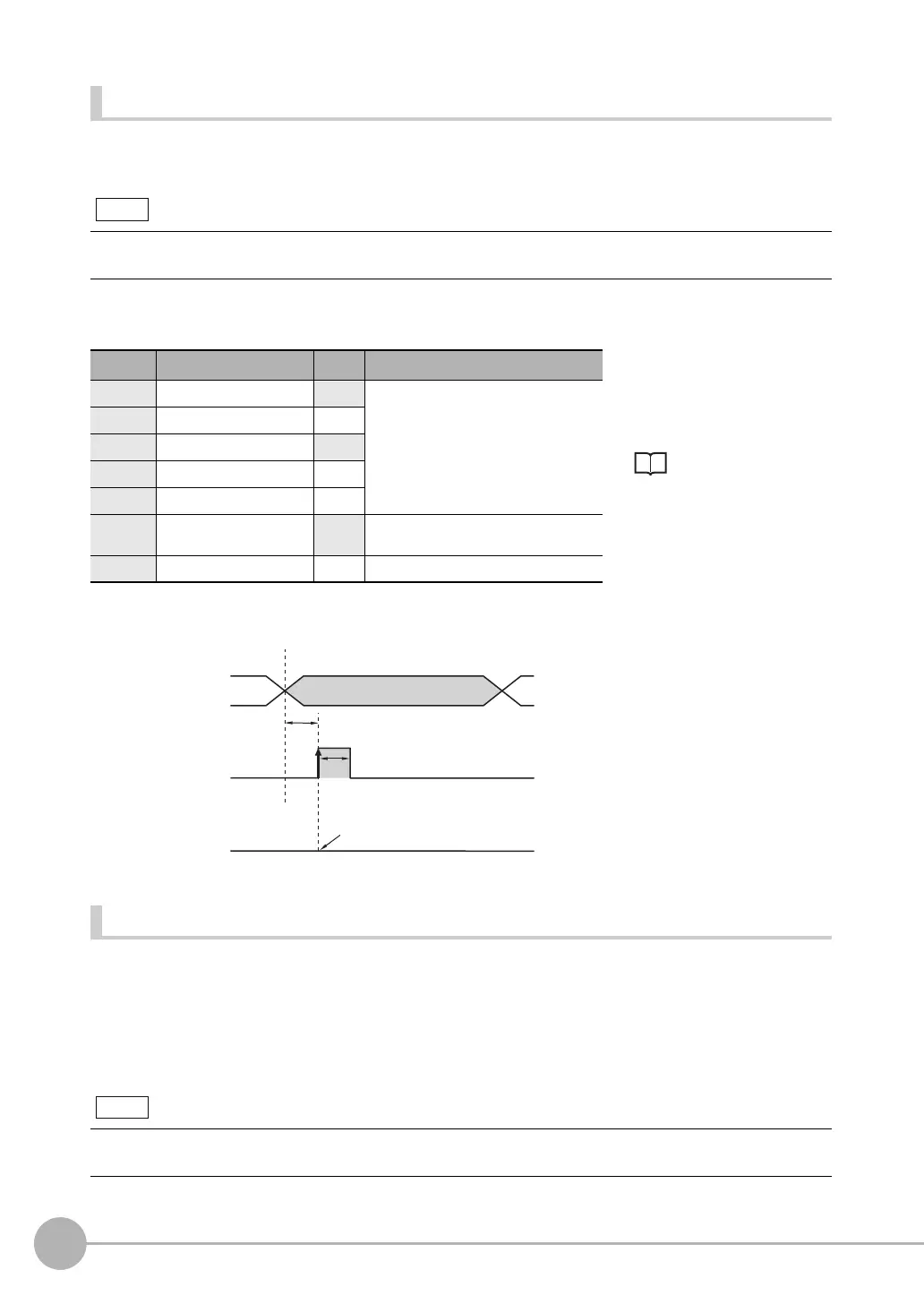

Controlling Operation and Outputting Data with the Sensor's Standard Parallel Connection
52
FQ2-S/CH User’s Manual
for Communications Settings
Clearing Measurement Values
This command clears the measurement values that are stored in the Sensor. However, the OR signal and the
output signals that are assigned to OUT0 to OUT2 are not cleared.
Wiring
Timing Chart
Retrying Inspection by External Signal (Trigger Retry)
Measurement is repeated until all inspection items have been successfully scanned.
Retry inspection ends when any one of the following conditions is satisfied:
(1) The scanning result of all inspection items is OK.
(2) Trigger retry (this command) turns OFF.
(3) The timeout time is exceeded.
This command is only valid in Expanded Mode.
This function can be used in Run Mode only.
Color Signal State Description
The signals shown at the left
are used.
Refer to the following
information for signal wiring.
Section 2 Installation
and Connections
in Vision Sensor
FQ2-S/CH Series
User's Manual
(Cat. No. Z337)
Gray IN0 ON Command parameter for clearing mea-
surement values
Green IN1 OFF
Red IN2 ON
White IN3 OFF
Purple IN4 OFF
Ye l l o w I N 5 ON Command input for clearing measure-
ment values
Orange OUT1 (BUSY) -- Processing in progress (default)
1 Turn ON IN0 and IN2 and turn OFF
IN1, IN3 and IN4.
2 Turn ON the IN5 signal while the
BUSY signal is OFF to clear the
measurement values.
This command is only valid in Expanded Mode.
This function can be used in Run Mode only.
Note
OFF
ON
The measurement values are
cleared from the Sensor.
OFF
ON
BUSY signal
IN5 signal
ON for 1 ms min.
Allow 5 ms min. and then
turn ON IN5.
IN0 to IN4 signals
Note
