Controlling Operation and Outputting Data with a Parallel Interface Sensor Data Unit
62
FQ2-S/CH User’s Manual
for Communications Settings

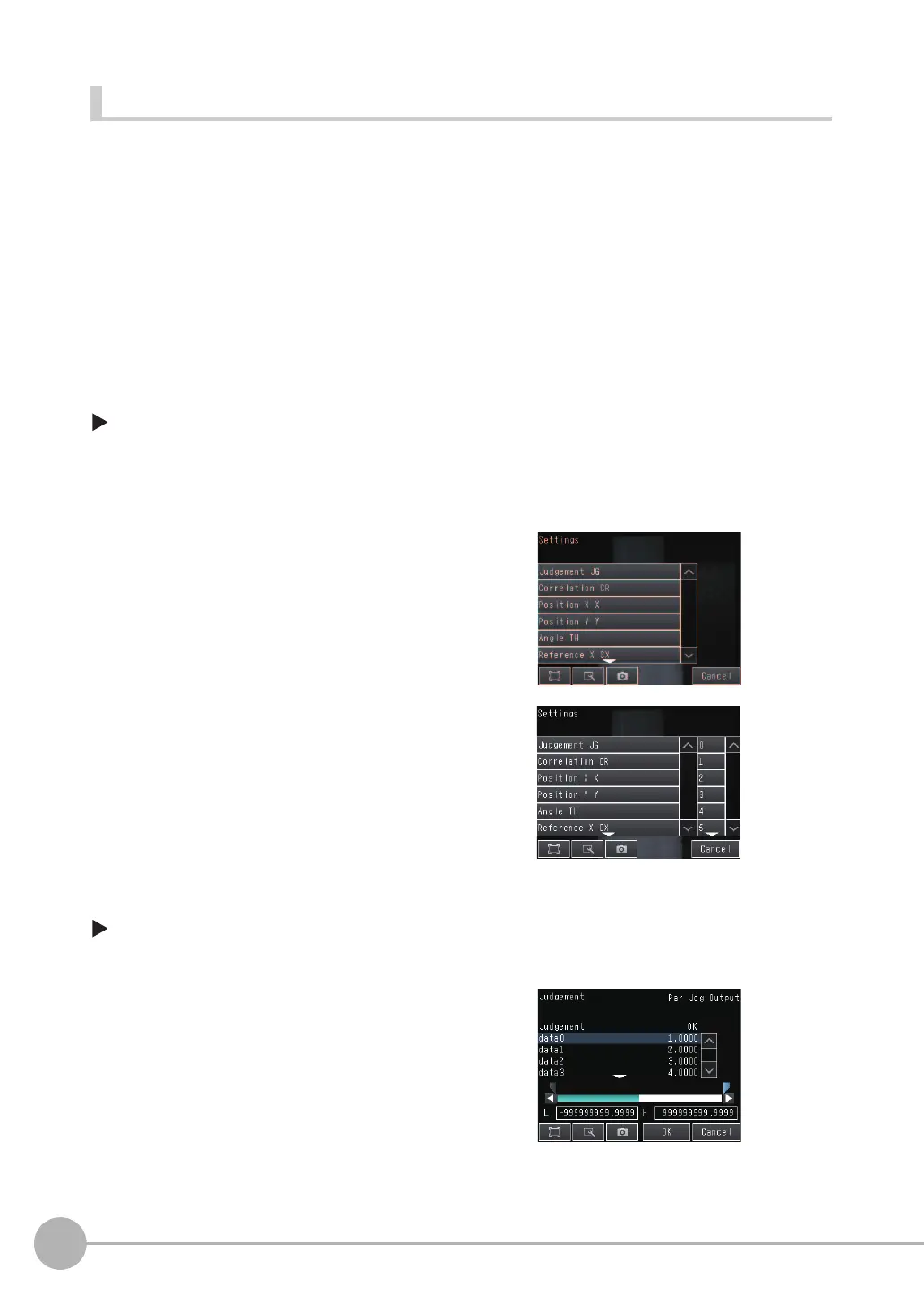

Parallel Judgement Outputs
You can set judgement conditions for parallel output and then output the judgement results for those conditions.
● Setting the Items to Judge and the Judgement Conditions
You can assign up to 16 judgement results to and output them from the D0 to D15 signals.
As the items to judge, you can specify the measurement data from inspection items that can be output and the
calculation results from the expression settings.
Use the following procedure to set the items to judge and the judgment conditions.
(1) Setting the Items to Judge
You can assign the parameters from the inspection items to the data output signals (D0 to D15).
The following procedure shows how to assign the measured position X of [0. Search] to D0.
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Basic] Tab Page
(2) Setting the Judgement Conditions
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Basic] Tab Page
1 Press [Settings].
2 Press [0.D0].
3 Press [IO. Search].
4 Press [Position X X].
5 If the inspection item allows multi-point output,
press the number ([0] to [31]) of the inspection result
for which to output the data from the list of inspec-
tion results.
To register something to D1 or higher, repeat this pro-
cess.
1 Press [Judgement condition].
2 Set the correlation range that is to be judged as OK.
