Controlling Operation and Outputting Data with a Parallel Interface Sensor Data Unit
FQ2-S/CH User’s Manual
for Communications Settings
63
2
Controlling Operation and Outputting Data with a Par-
allel Connection
● Reflecting Judgement Results to the Overall Judgement
You can specify whether to reflect the judgement result of a parallel judgement output in the overall judgement.
(The default is to reflect them.)
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Details] Tab Page − [Output
parameter] − [Reflect]
● Stopping Data Output
You can also prevent the judgement results that are set from actually being output. (The default setting is [Yes].)
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Details] Tab Page − [Output
parameter] − [Data output]
Parallel Data Output
You can output the following data as 16-bit data by setting them as the output data (data 0 to data 31):
measurement data from inspection items that can be output and the calculation results from the expression
settings.

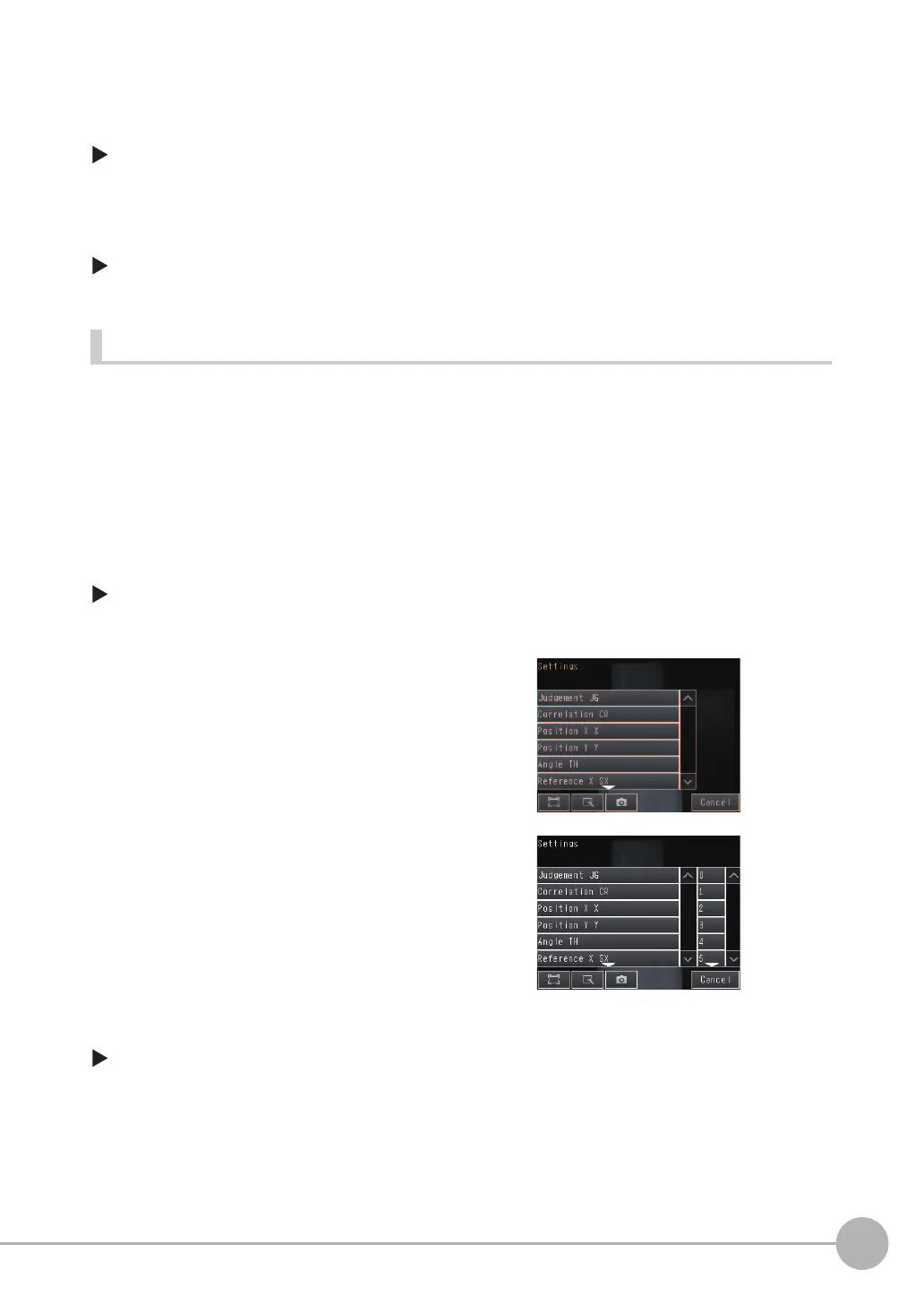

● Setting the Data to Output
You can individually assign the parameters of the inspection items to output data (data 0 to data 31).
The following procedure shows how to assign the measured position X of [0. Search] to data 0 for a parallel
output.
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Basic] Tab Page
●
Setting the Output Form
[In/Out] − [I/O setting] − [Output data set] − [Par. Jdg Output] − [Basic] Tab Page
1 Press [Output format].
2 Press [Output form].
3 Set [Data form] to [Binary] or [BCD].
1 Press [Data settings].
2 Press [Data 0].
3 Press [I0. Search].
4 Press [Position X X].
5 If the inspection item allows multi-point output,
press the number ([0] to [31]) of the inspection result
for which to output the data from the list of inspec-
tion results.
To register something to data 1 or higher, repeat this pro-
cess.
FQ2-S_CH_comm.book 63 ページ ２０１４年６月２６日 木曜日 午前１１時４７分
To Next Page
