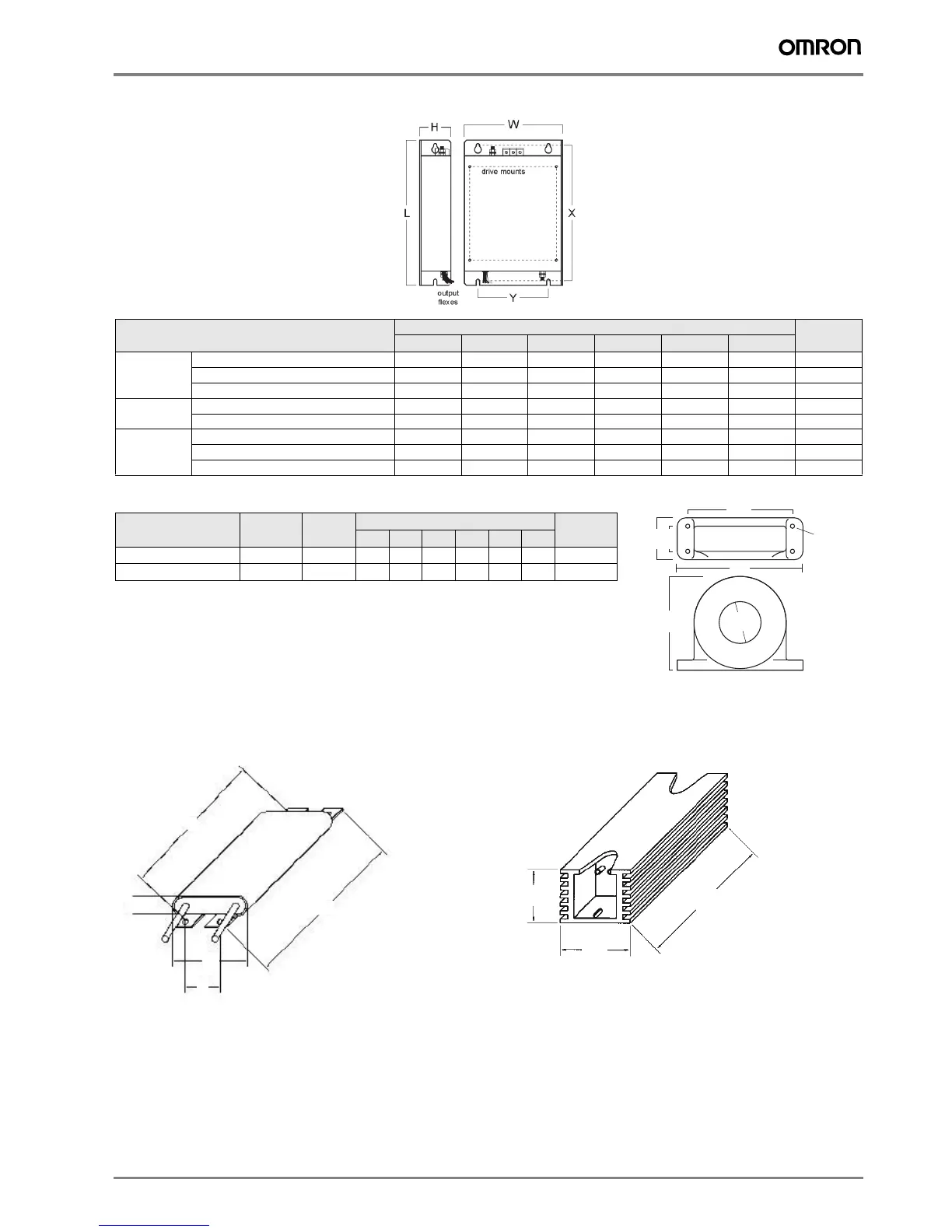

Rasmi footprint Filters
Chokes
Resistor Dimensions
A1000-REJ0K15xxx A1000-REJ0K10xxx
Rasmi model
Dimensions
Weight
KG
W H L X Y M
3x200 V
A1000-FIV2010-RE 82 50 194 181 62 M4 0.8
A1000-FIV2020-RE 111 50 194 181 62 M4 1.1
A1000-FIV2030-RE 144 50 174 161 120 M4 1.3
1x200 V
A1000-FIV1010-RE 71 45 169 156 51 M4 0.6
A1000-FIV1020-RE 111 50 169 156 91 M4 1.0
3x400 V
A1000-FIV3005-RE 111 45 169 156 91 M4 1.1
A1000-FIV3010-RE 111 45 169 156 91 M4 1.1
A1000-FIV3020-RE 144 50 174 161 120 M4 1.3
Description D
diameter
Motor
KW
Dimensions Weight
Kg
L W H X Y m
A1000-FEV2102-RE 21 < 2.2 85 22 46 70 - 5 0.1
A1000-FEV2515-RE 25 < 15 105 25 62 90 - 5 0.2
X
H
YW
Ø m
L
Ø d
168
11.5
45
20
182
105
27
36
