Chapter 8: Operation

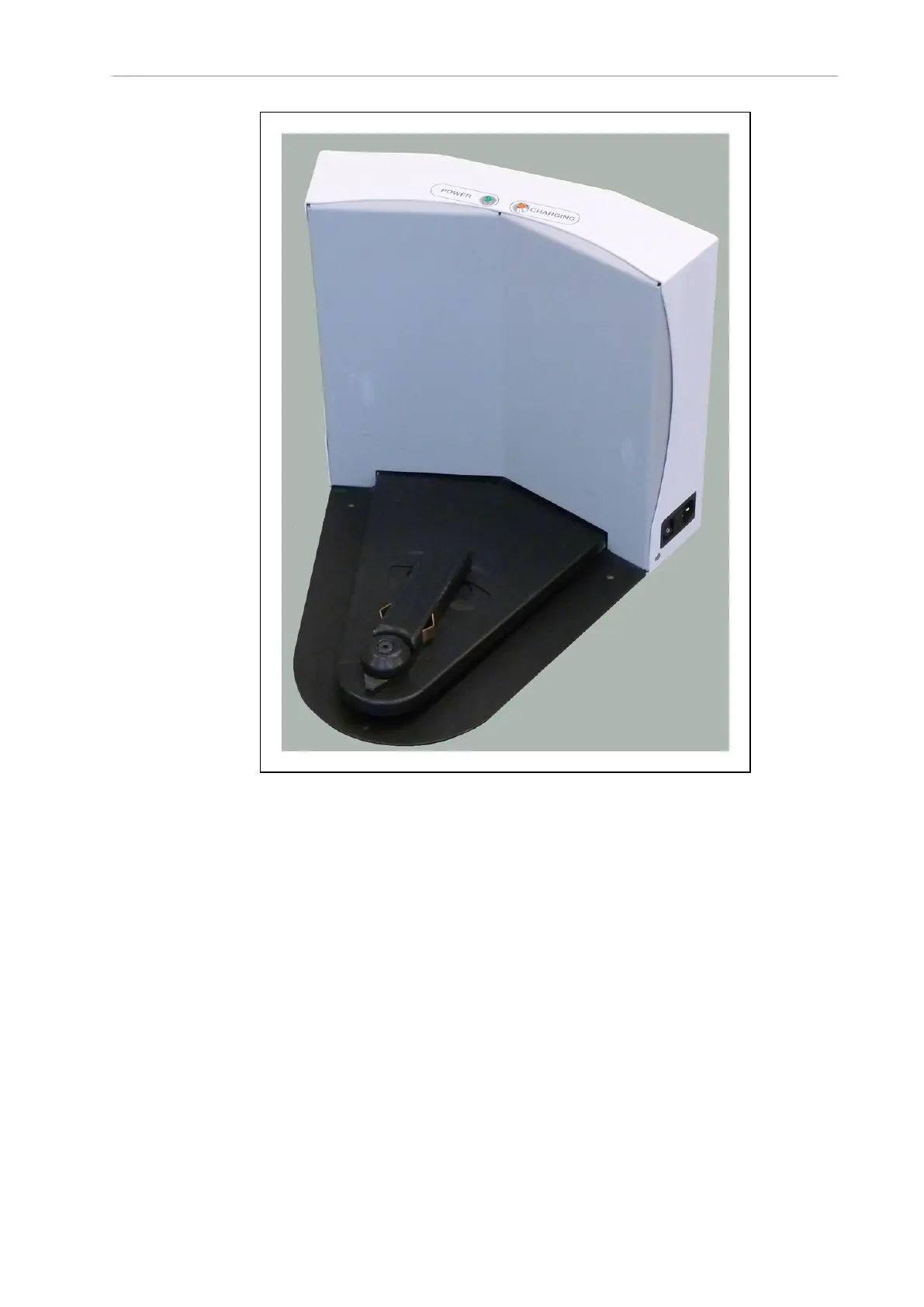

Figure 8-3. Docking Station
Indicators, Controls, and Connections
The docking station has a power switch and two LEDs:
l
blue indicates that power is available.
l
yellow indicates that a charge is in progress.
The power switch, located on the right side of the dock, has an integrated thermal fuse, which
can shut down the dock if it becomes too hot. If this happens, you have to wait for the fuse to
cool down, toggle the switch to off (0) and then back to on (1).
The power plug for AC supply is next to the power switch. Power requirements are 100-240
VAC, 50-60 Hz, and 8 A.
14766-000 Rev H LD Cart Transporter User's Manual 137
