Chapter 10: Maintenance

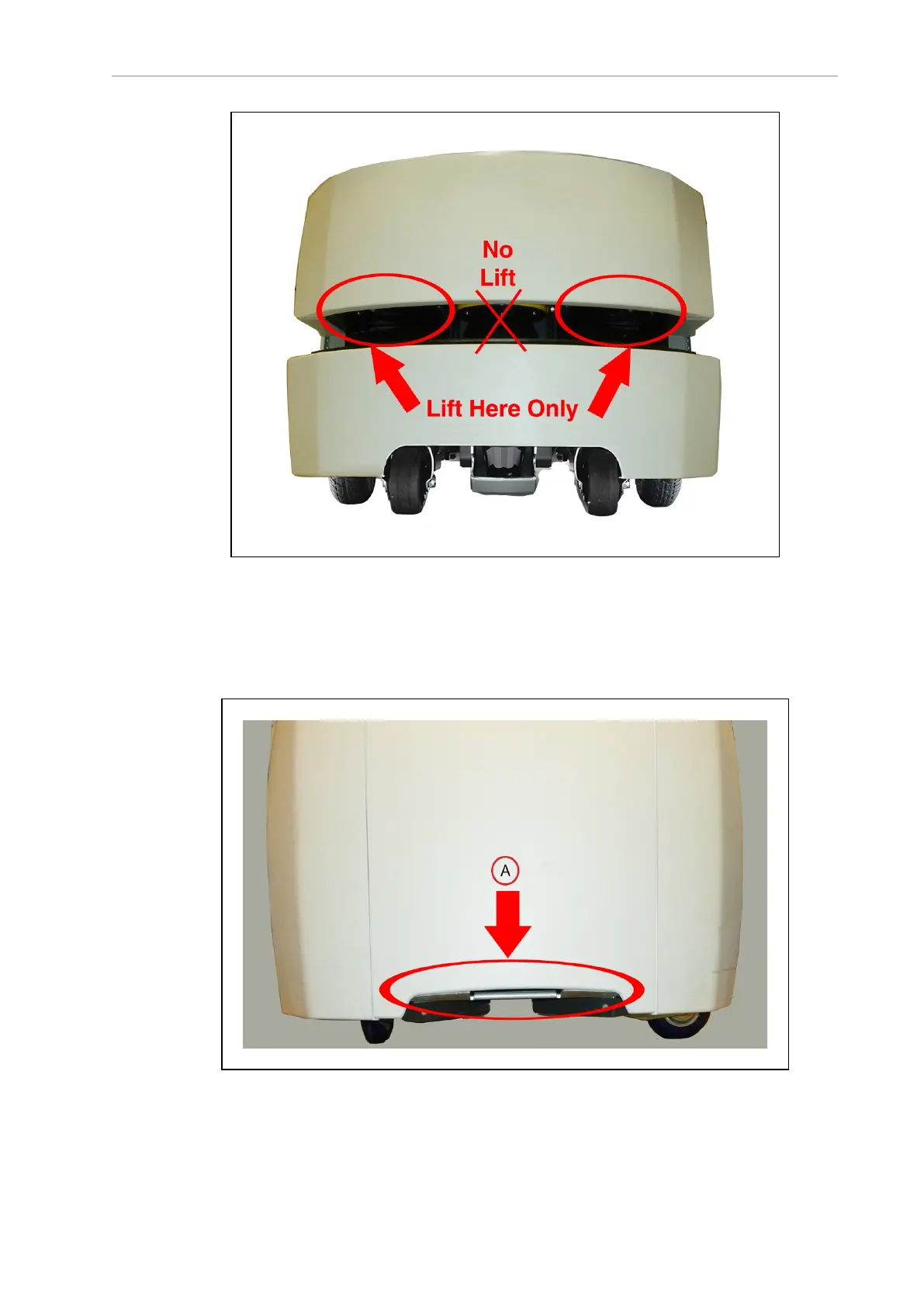

Figure 10-4. The Upper Surface of the Laser Slot. (A) Lift Here Only, and (B) No Lift
Rear Lifting Area
The center underside of the platform, where the cover has a raised section. Do not lift any-
where else! Refer to the following illustration:
Figure 10-5. Bottom of Battery Door Skin. (A) Lift Here
14766-000 Rev H LD Cart Transporter User's Manual 149
