50 LD Cart Transporter User's Manual 14766-000 Rev H
3.4 Setting Up an LD Platform Cart Transporter

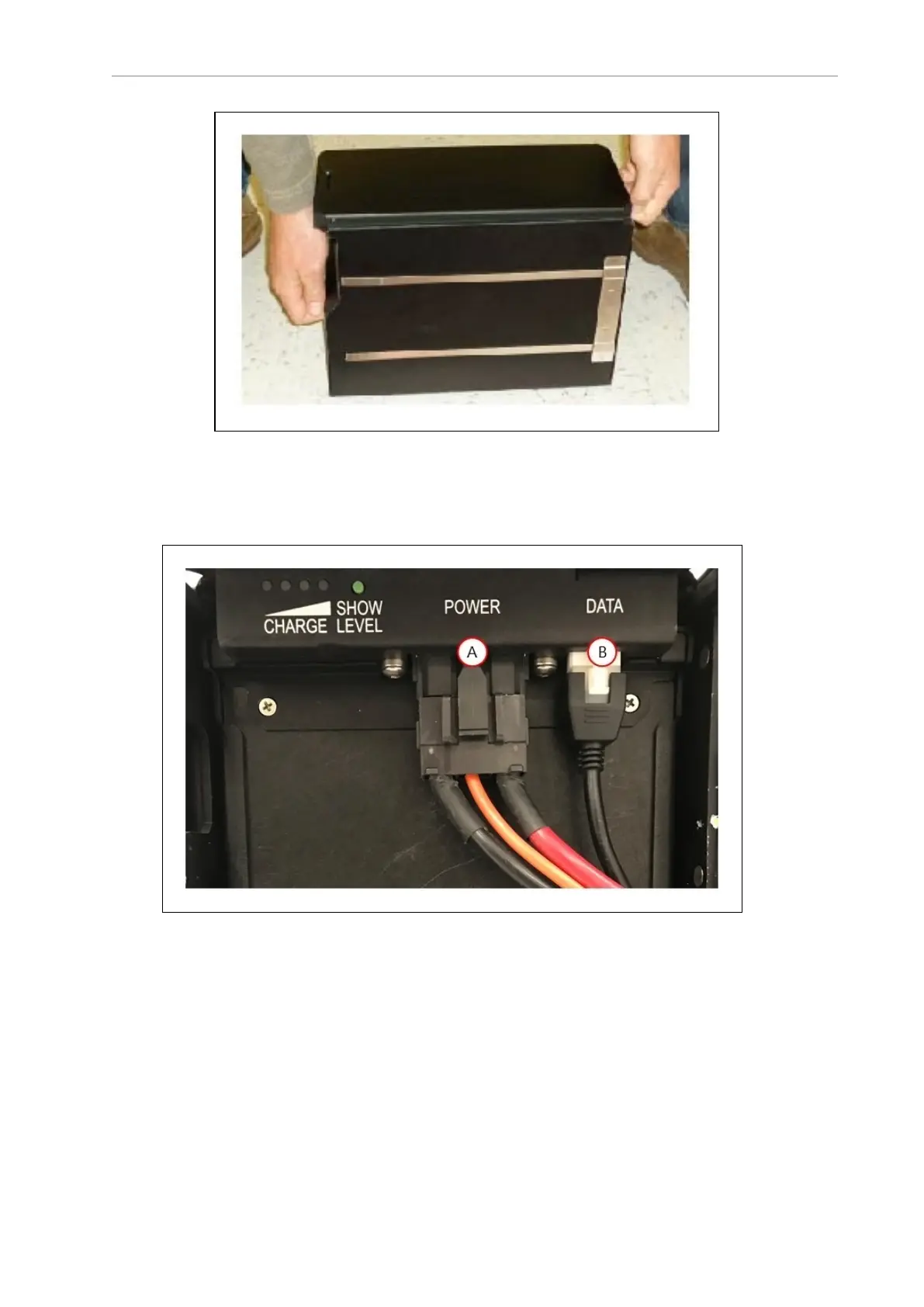

Figure 3-13. Lifting the Battery
The connectors for power and data go toward the rear of the platform.
4.
Attach the battery power and data cables to the connectors at the rear of the battery.
Figure 3-14. Battery Cable Connectors, (A) Power and (B) Data
5.
Close the battery compartment door to secure the battery in place.
The battery compartment is designed to hold the battery tightly, so that it will not move
within the compartment, once the door is closed.
6.
Reinstall the inner rear platform cover.
