3.4 Setting Up an LD Platform Cart Transporter
369
537
313
98 ± 20
168
122
357
123
247
3x Ø6
350
R95
267
114
203
R13
18x Ø6
8x 25
89
A
A

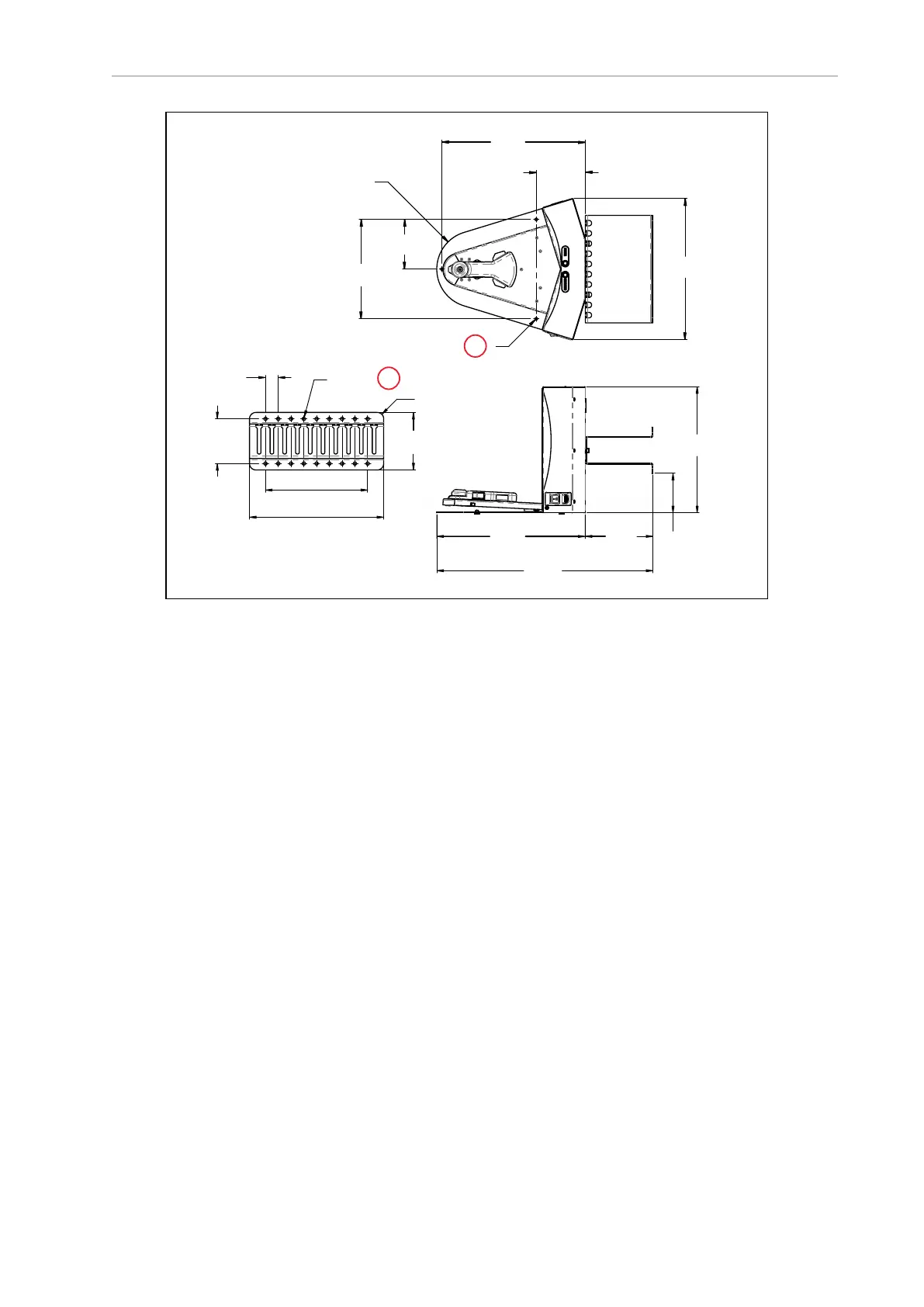

Figure 3-15. Docking Station, Wall Mount Bracket Detail, (A) Through Hole (units are in mm)
2.
Screw the two shoulder bolts, each with a washer, into the rear of the docking station.
The shoulder bolts are M5 x 4, stainless steel. Their locations are shown in the fol-
lowing figure. Tighten to 9 N·m (80 in-lb).
