LD Cart Transporter User's Guide, 14766-000 Rev B
Page 111 of 190
Chapter 7: Operator Interface

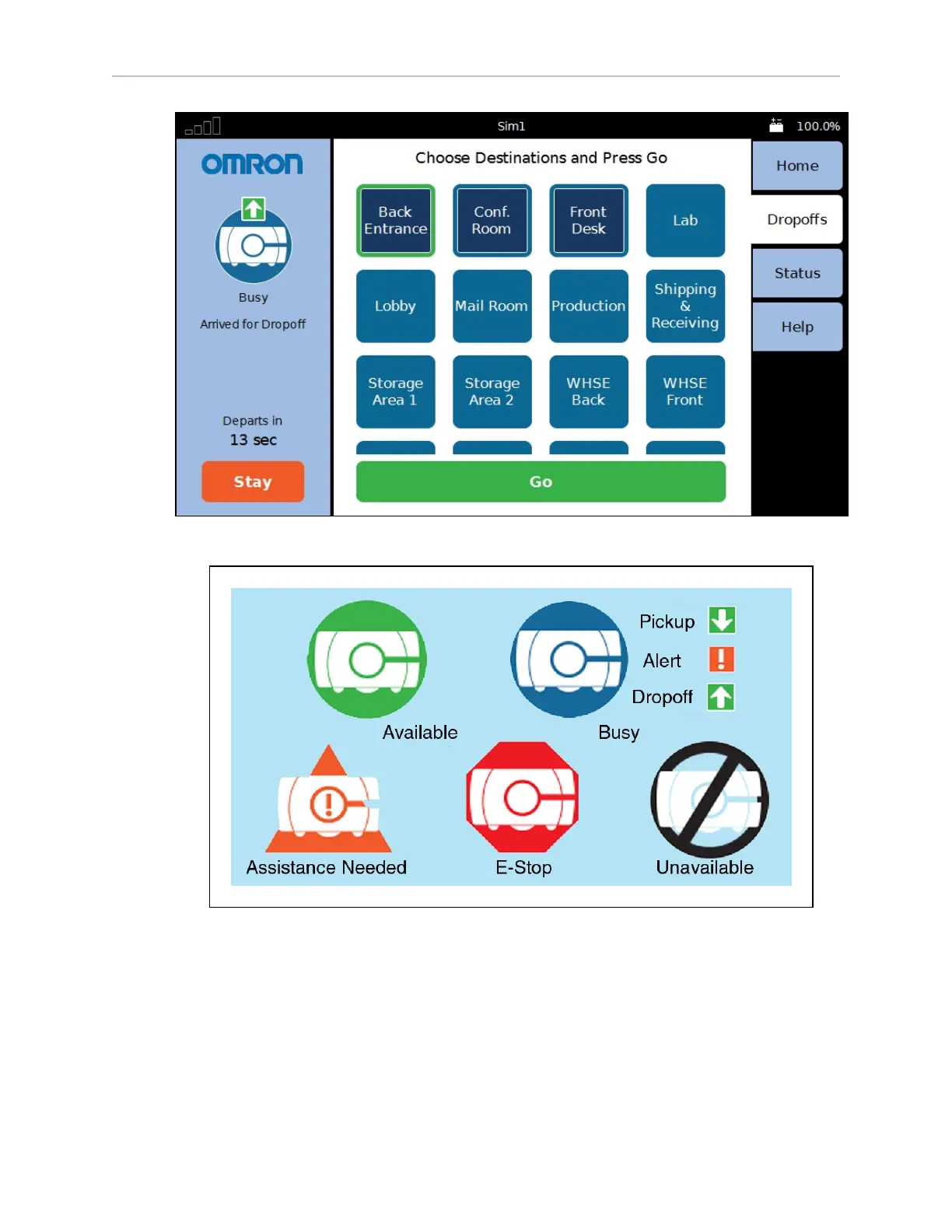

Figure 7-3. Screenshot Showing Top Bar and Left, Right, and Center Panes
Figure 7-4. LD Cart Transporter Status Icons
NOTE:The Busy icon may also include an arrow pointing down, indicating a
pickup, an arrow pointing up, indicating it is doing a dropoff, or an exclamation
mark, indicating an alert condition. Figure 7-3. shows a dropoff.
The bottom of the left side of the touchscreen provides a Stay button, to delay the departure of
the robot, and a count-down timer, indicating when the robot will depart.
