Chapter 3: Setup
Removing the Upper Body of the Crate
1.
Remove the two lag bolts and washers from the back of the crate, at the bottom.

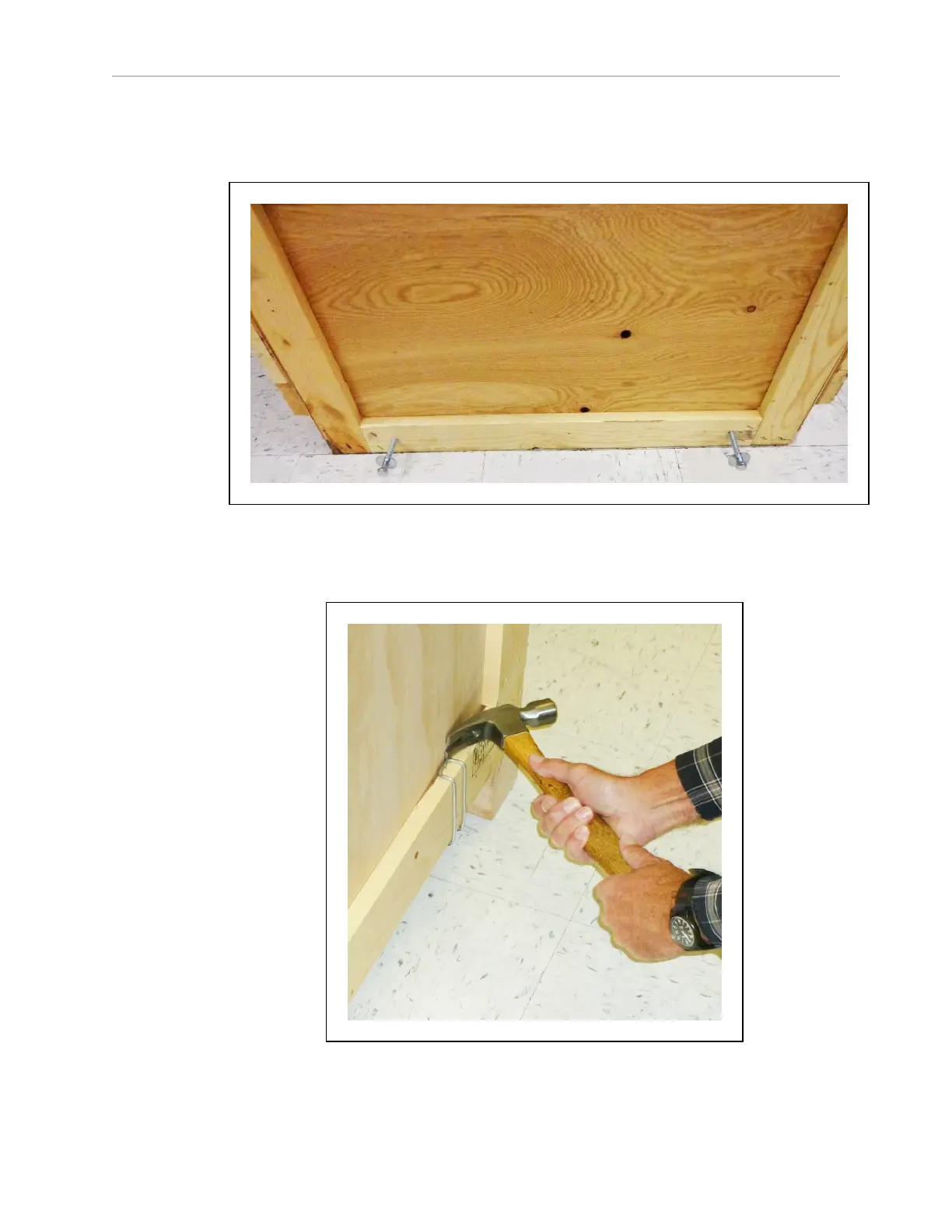

Figure 3-4. Crate Bottom-rear Lag Bolts
2.
Remove two Klimp fasteners at each side holding the upper body of the crate to the
base.
Figure 3-5. Removing a Klimp Fastener
3.
Slide the upper body of the crate off of the base.
