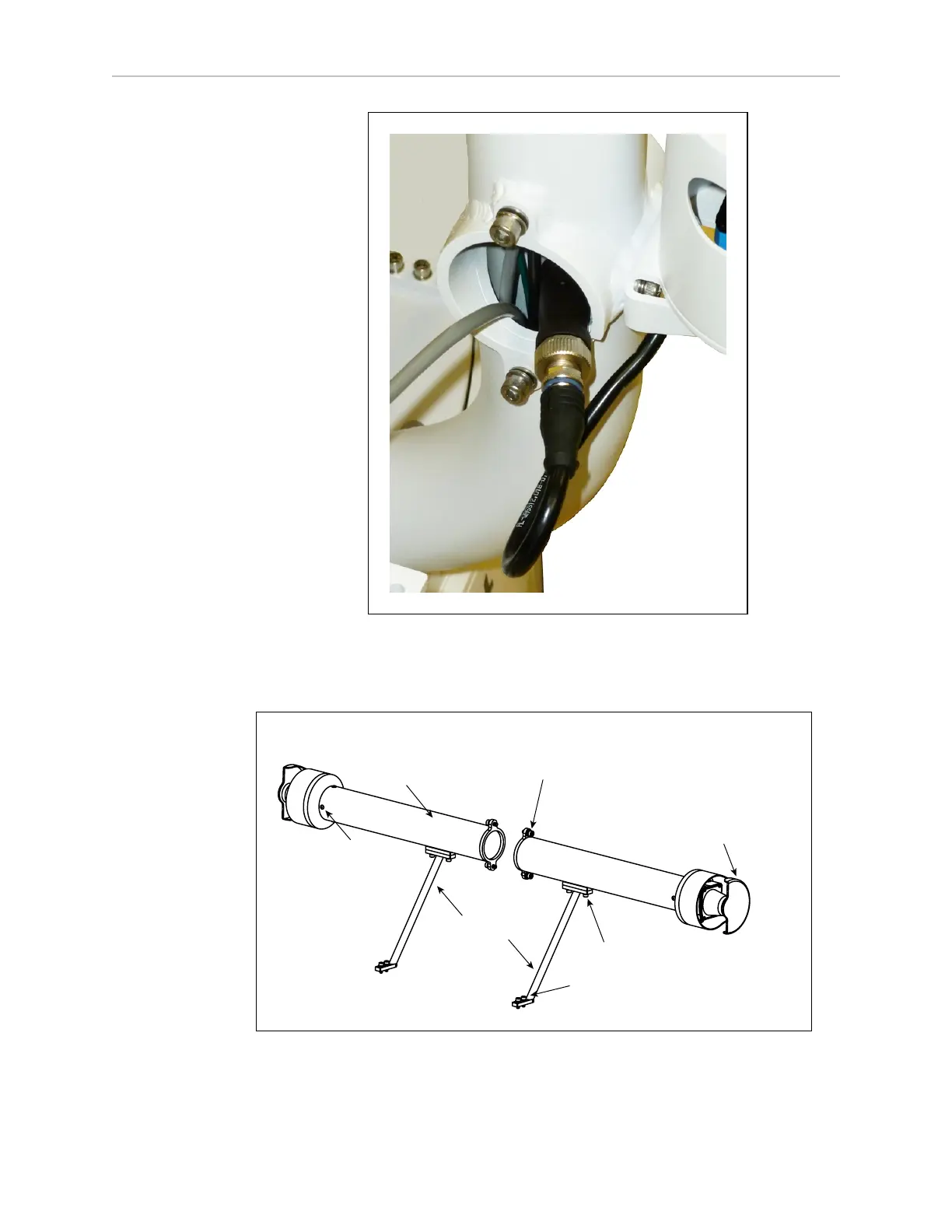

Figure 3-8. Connector and Cable for the Rear Laser
3.
Attach the flange of each support tube to the HMI post with two M6 screws, lock wash-
ers, and flat washers.
Laser Guard
Support
Tube
Support Braces
Washer, Lock Washer,
M5 SHCS SS Screw (x8)
Screw, BHCS,
M4 SS (x8)
Washer, Lock Washer,
M6 SHCS SS Screw (x4)
Figure 3-9. Side Laser Support Tubes
