Chapter 3: Setup
M6
M5
Side Laser
Flange
HMI
Post
Support
Tube Braces
Left Support Tube
Right Support Tube
HMI
Post
Side Laser
Guard
M5: 10x Washer
Lock Washer,
M5 SHCS SS
M6: 4x Washer
Lock Washer,
M6 SHCS SS
Rear-facing Laser
Laser Guard
Rear-facing
Laser Bracket

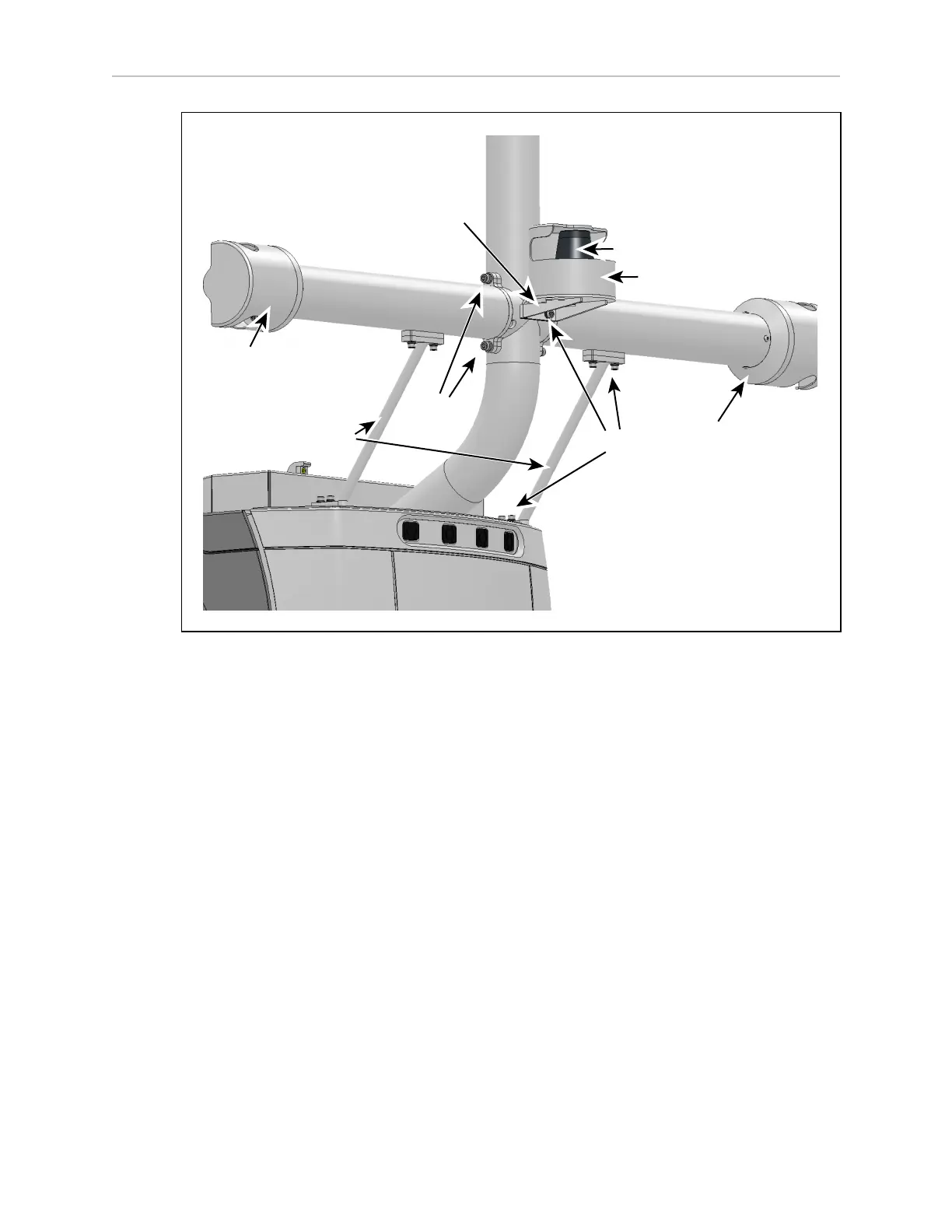

Figure 3-7. Side Lasers, Support Tubes, Rear-facing Laser
There are two side laser support tubes that attach to support braces that are anchored to the
HMI post base. As shipped, all wiring is already connected, and the support braces are
attached to the HMI post base.
1.
Attach each support tube to a support brace with two M5 screws, lock washers, and
washers.
2.
For the left support tube, ensure that:
l
the cable and connector for the rear-facing laser, coming from the HMI post, are
tucked inside the left support tube
l
the cable is connected to the cable from the rear-facing laser.
See the following figure.
l
the cable for the rear-facing laser goes through the notch in the HMI post, where
it attaches to the support tube flange
To Next Page
