LD Cart Transporter User's Guide, 14766-000 Rev B
Page 43 of 190
Chapter 3: Setup

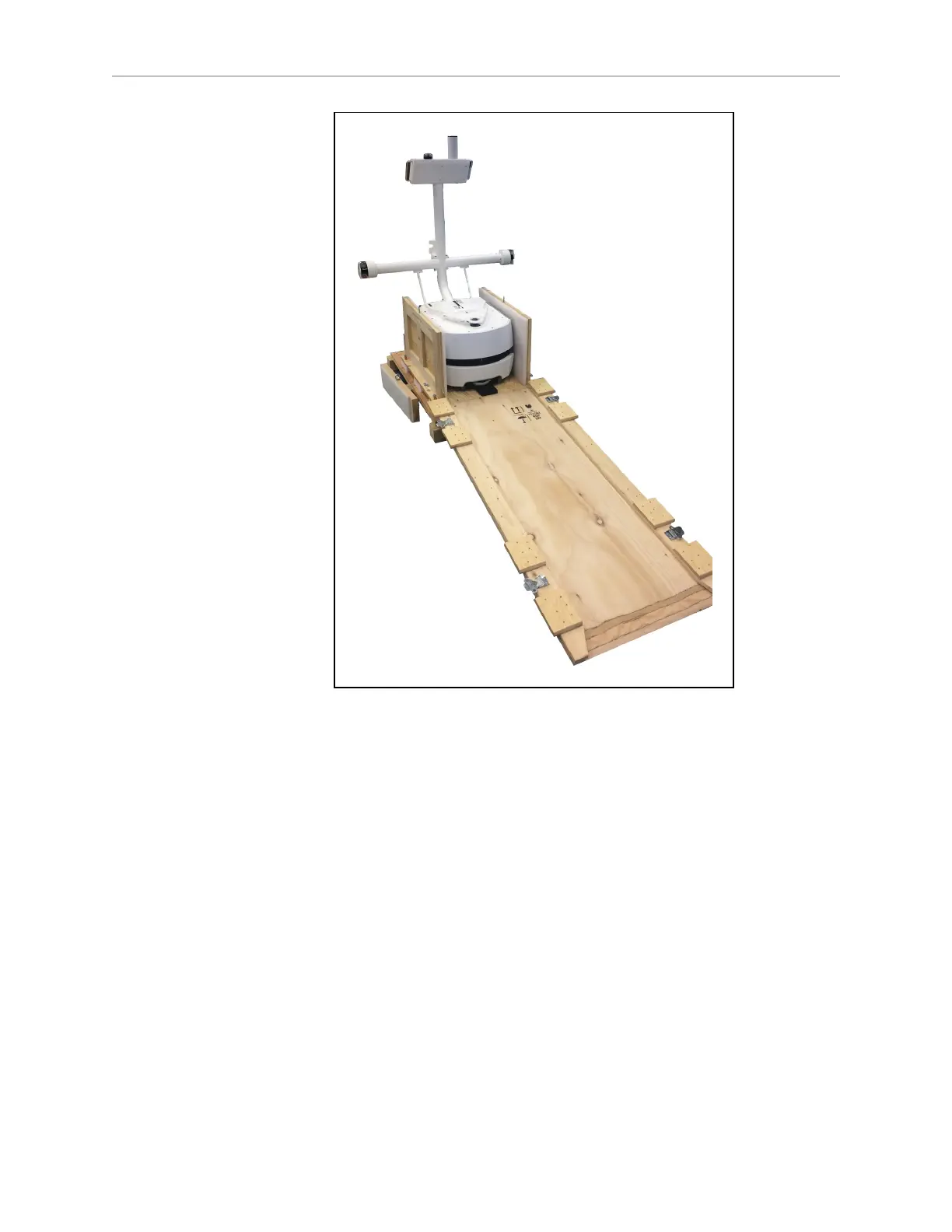

Figure 3-11. LD Cart Transporter on Crate Base, with Ramp
3.
Remove the two wheel pins that held the wheels up during transit.
The wheels are pinned up to protect the motors and drives. When you receive your
transporter, the drive wheels will not touch the ground until you remove the wheel
pins. The wheel pin hole is shown in the following figure.
