Omron LD User Manual

LD Cart Transporter User's Guide, 14766-000 Rev B
Page 51 of 190
Chapter 3: Setup
369 mm (14.5 in.)
537 mm (21.1 in.)
313 mm
(12.3 in.)
98 ± 20 mm
(3.9 ± 0.8 in.)
168 mm
(6.6 in.)
122 mm
(4.8 in.)
357 mm (14.0 in.)
123 mm
(4.9 in.)
247 mm
(9.7 in.)
3x Ø 6 mm (0.25 in.) Thru
350 mm
(13.8 in.)
R95 mm
(3.8 in.)
267 mm (10.5 in.)
114 mm
(4.5 in.)
203 mm (8.0 in.)
R13 mm (0.5 in.)
Wall Mount Bracket Detail
18x Ø 6 mm (0.25 in.) Thru
8x 25 mm
(1.0 in.)
89 mm
(3.5 in.)

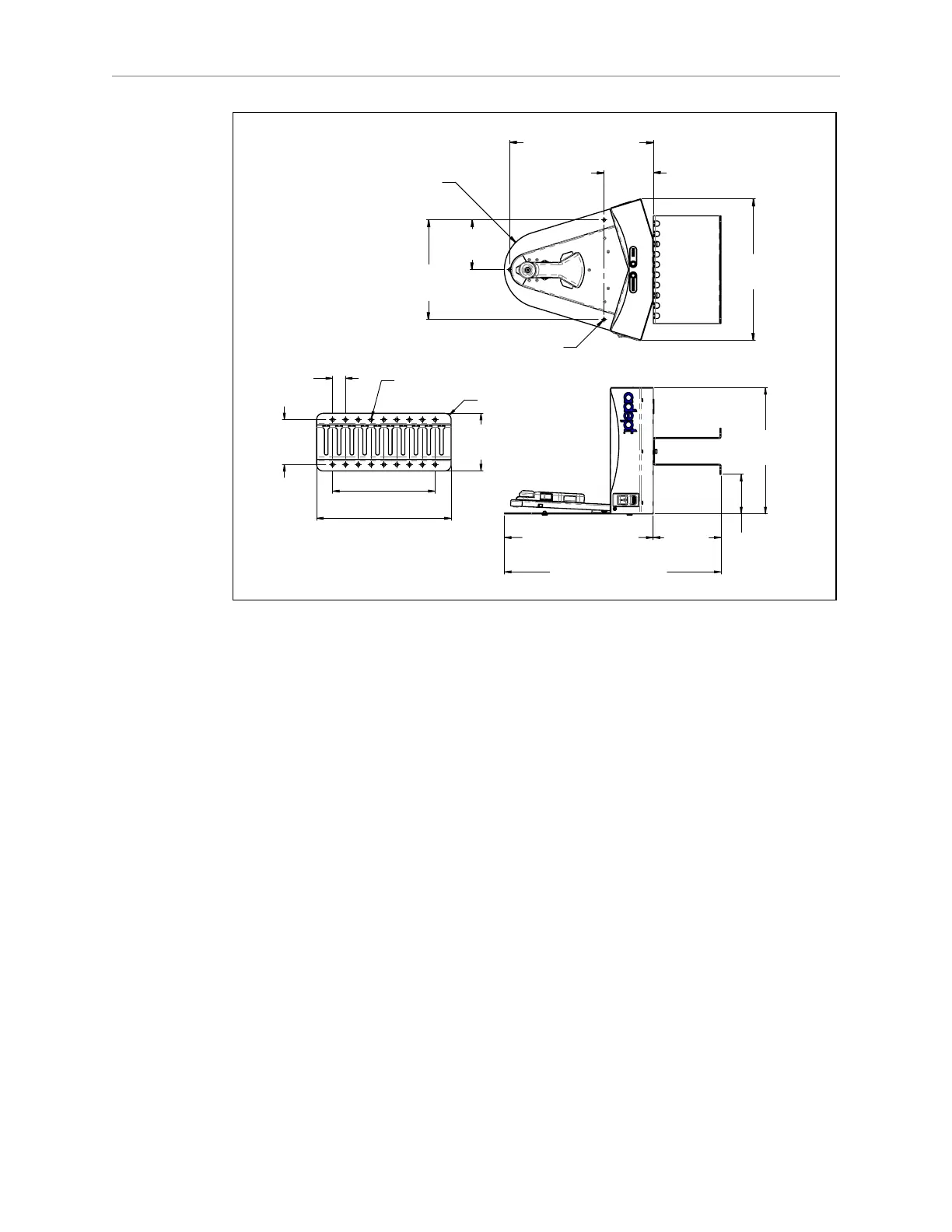

Figure 3-19. Docking Station, Wall Mount
2.
Screw the two shoulder bolts, each with a washer, into the rear of the docking station.
The shoulder bolts are M5 x 4, stainless steel. Their locations are shown in the fol-
lowing figure. Tighten to 9 N-m (80 in-lb).
