LD Cart Transporter User's Guide, 14766-000 Rev B
Page 57 of 190
Chapter 3: Setup

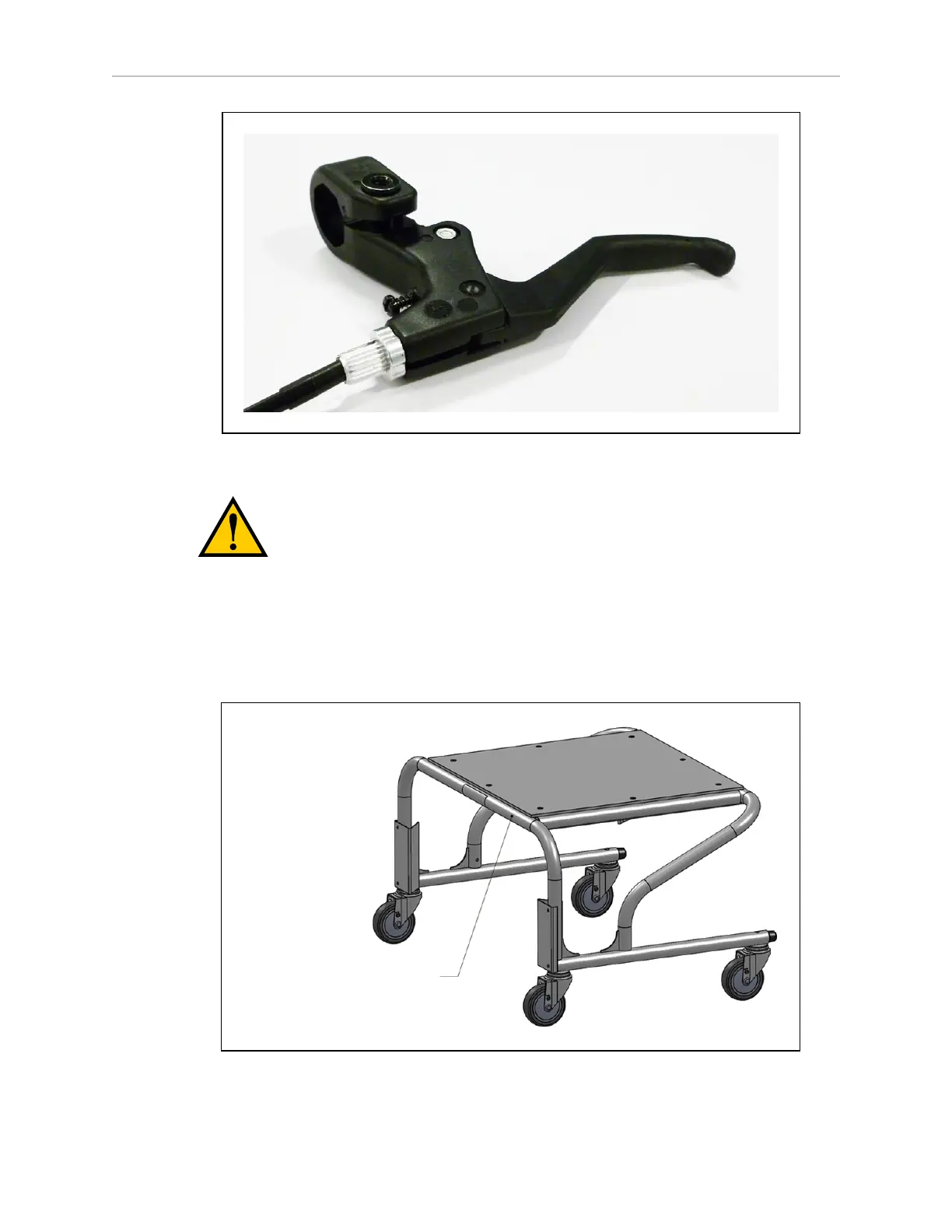

Figure 3-26. Brake-release Lever
CAUTION: It is important that the brake-release handle be mounted in an
ergonomically-suitable location, so an Operator can repetitively release the
brakes without risking injury.
The actual mounting location and procedure for the brake-release handle are not covered here
due to the variability that is possible in cart structure designs. Ensure that no part of the cart
brake-release cable bends more than a 76 mm (3 in.) radius.
There is a 6.4 mm (0.25 in.) horizontal hole through the rear horizontal tube of the cart. See the
following two figures.
0.25 Pass-through hole for brake
cable, through rear frame tube
Figure 3-27. Thru-hole for Brake-release Cable
