Chapter 3: Setup
Secure brake-release
cable to saddle tie
Ø 0.25 in. hole
through rear tube wall
Route brake-release
cable up to brake lever

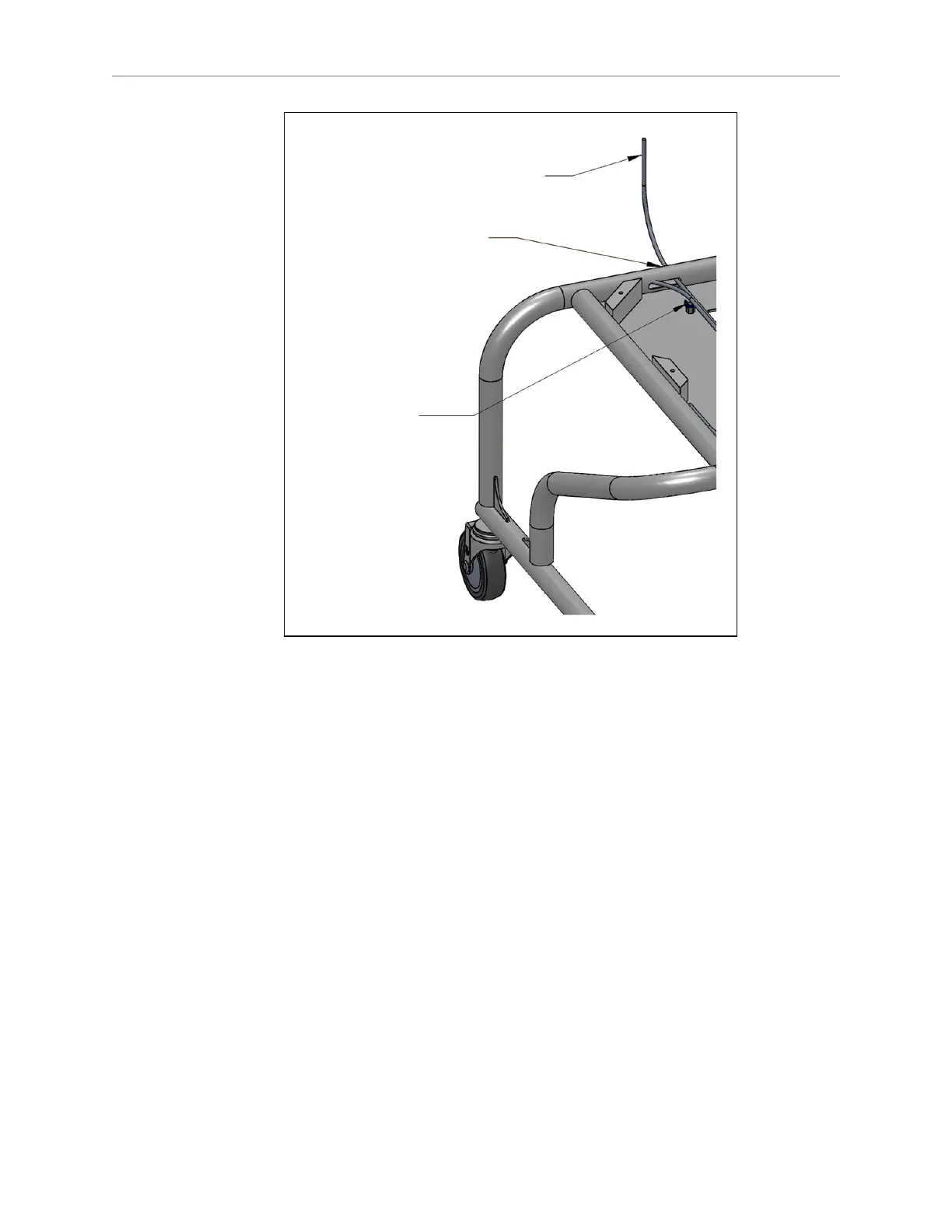

Figure 3-28. Thru-holes for Brake-release Cable, Plate Removed
After the brake-release lever has been mounted on the cart payload:
1.
Push the free end of the lever cable through the hole in the cart’s upper-rear horizontal
tube.
