LD Cart Transporter User's Guide, 14766-000 Rev B
Page 94 of 190
Chapter 6: Connectivity

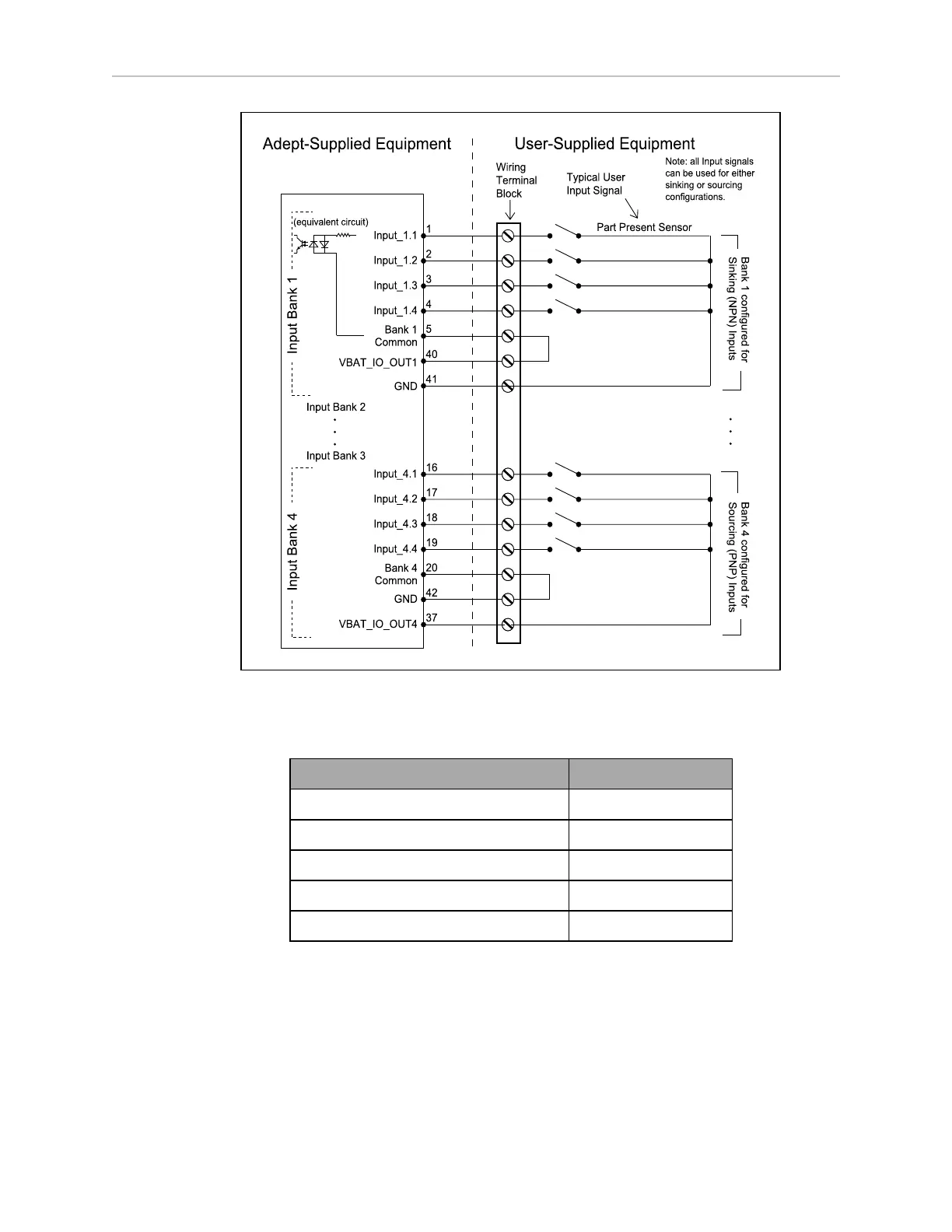

Figure 6-6. Typical Digital Input Wiring Example
Table 6-1. Digital Output Specifications
Parameter Value
Power supply voltage range 5 - 30 VDC
Operational current range, per channel I
out
≤ 500 mA
ON state resistance (I
out
= 0.5 A) R
on
≤ 0.14 Ω @ 85° C
Output leakage current I
out
≤ 5 μA
DC short circuit current limit 0.7 A ≤ I
LIM
≤ 1.7 A
